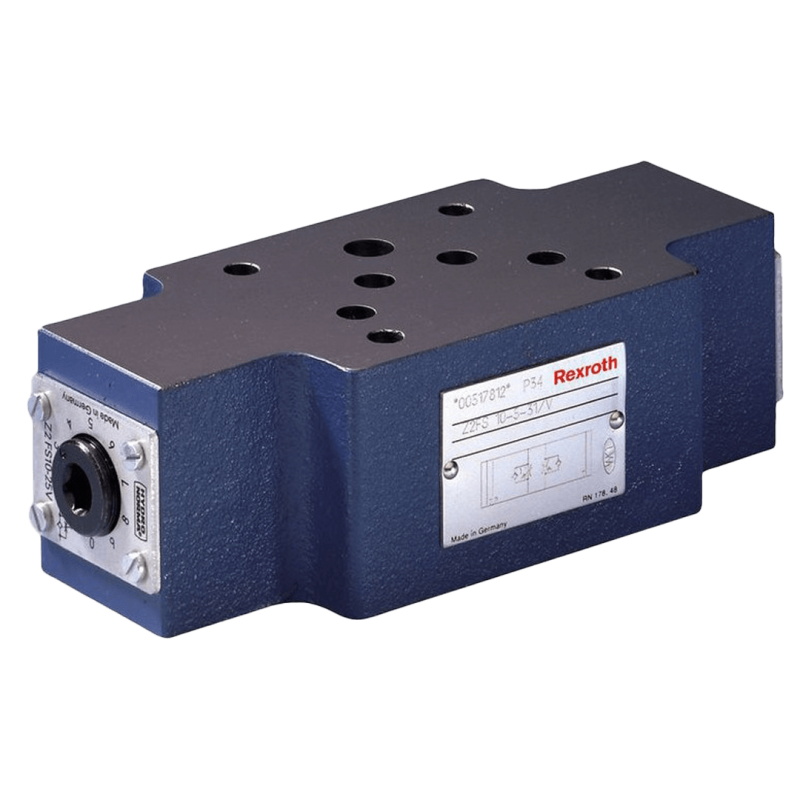

Bosch Rexroth Throttle Check Valve Z2FS 10

Z2FS 10 Size 10 Series 3x

The valve type Z2FS 10 is a throttle check valve in sandwich plate design

  • Size: 10
  • Component series: 3X
  • Maximum operating pressure: 315 bar
  • Maximum flow: 160 l/min
Print page

Products
Downloads
Description
Part Number Material Number No-Show Price Add to Parts List
Z2FS 10-5-3X/V Z2FS10-5-3X/V R900517812 1 £352.32
£422.78 Inc. VAT
Z2FS 10A5-3X/S2V Z2FS10A5-3X/S2V R900523578 2 £352.32
£422.78 Inc. VAT

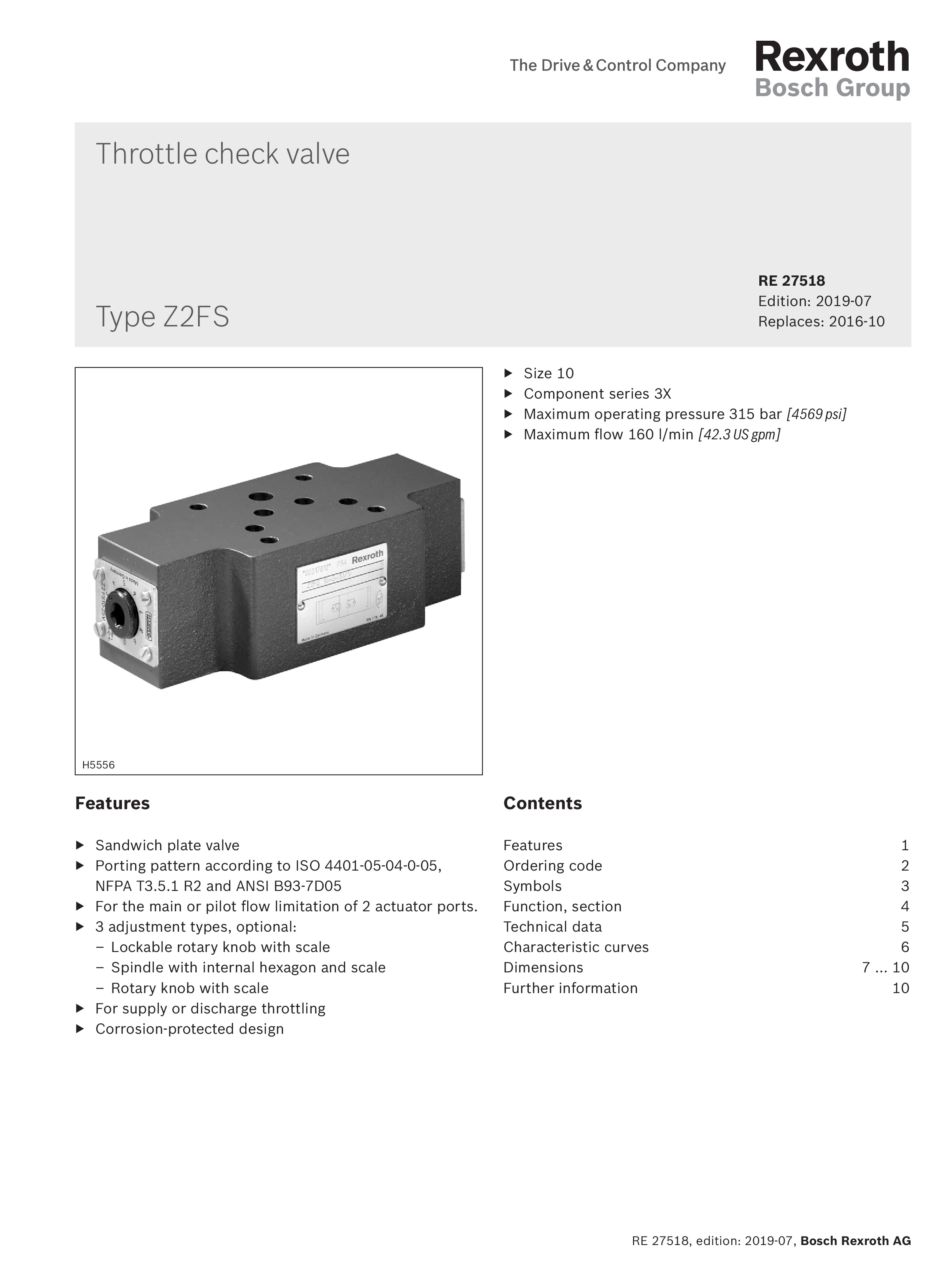

RE_27518_2019-07

Bosch Rexroth Throttle Check Valves Z2FS 10

  • Size: 10
  • Component series: 3X
  • Maximum operating pressure: 315 bar
  • Maximum flow: 160 l/min

Features:

  • Sandwich plate valve
  • Porting pattern according to ISO 4401-05-04-0-05, NFPA T3.5.1 R2 and ANSI B93-7D05
  • For the main or pilot flow limitation of 2 actuator ports.
  • 3 adjustment types:
    - Lockable rotary knob with scale
    - Spindle with internal hexagon and scale
    - Rotary knob with scale
  • For supply or discharge throttling
  • Corrosion-protected design
