Carr Lane Horizontal Handle Toggle Clamps
Quick-acting hold-down clamps are clamped with their handle locked in horizontal position. Rotating the handle downward pivots the clamping arm downward in the opposite direction, then locks over center. Available in multiple designs.

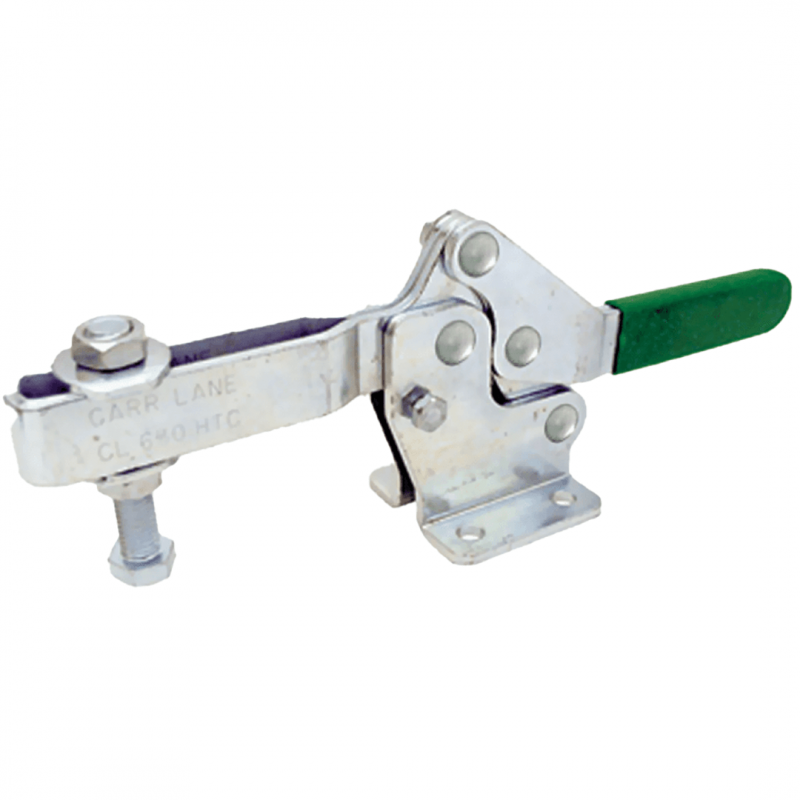

Standard HTC Design - Most-popular and widest-range series of horizontal-handle hold-down clamps. Available in seven sizes, the smaller ones with a comfortable finger grip. Most sizes are available with either a flanged base or a straight base with a choice of solid arm, or open arm for spindle adjustment.

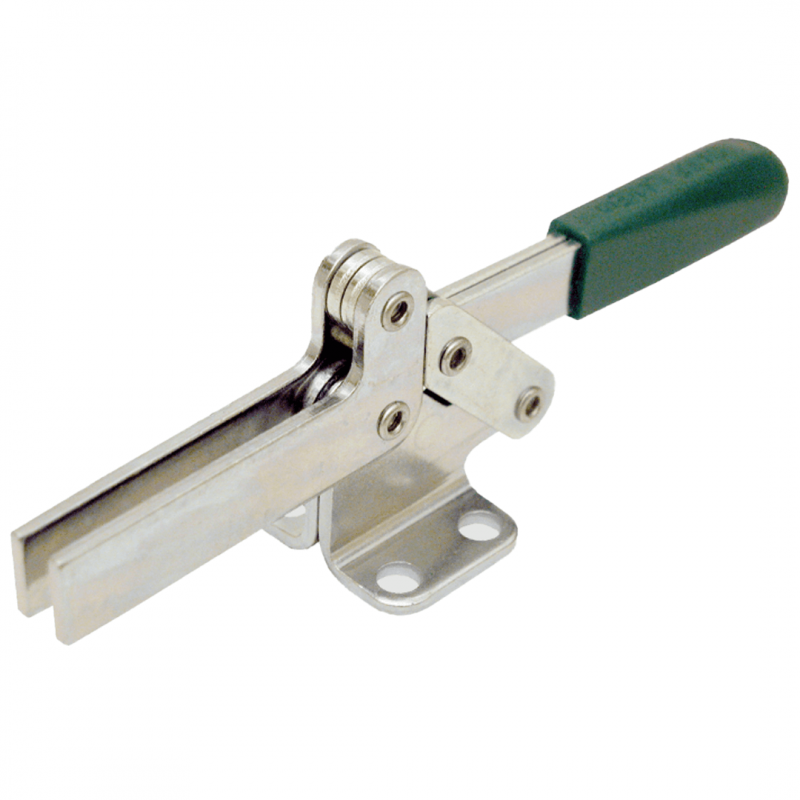

Automatically Adjusting - Automatically adjusts for different workpiece thicknesses. Clamps with the same, repeatable force anywhere within its 1/2" automatic-adjustment range. Ideal for welding fixtures, machining fixtures for castings, fixtures holding several part sizes within the same family, or any other application where part size can vary. Fits in the same space, and provides the same clamping force as the same-size standard toggle clamp. Arm opens 87° while handle moves 80°. Open arm provides adjustable spindle location. 750 lbs holding capacity
Low-Arm TC Design - Simple, classic-design horizontal-handle clamps. Available in four sizes, with either a flanged base or a straight base.

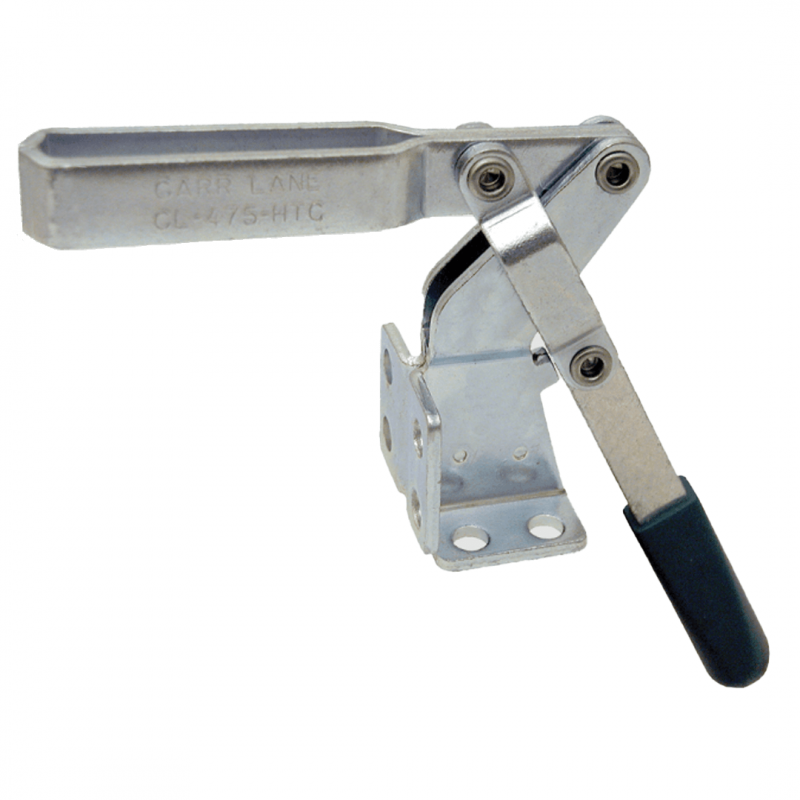

Extra-Wide Opening - Arm opens a full 185° for maximum loading clearance. Unique up-then-down handle motion. Handle locks at a 60° downward angle. Dual flanged bases allow mounting on either horizontal or vertical surfaces. Choice of solid arm, or open arm for spindle adjustment.

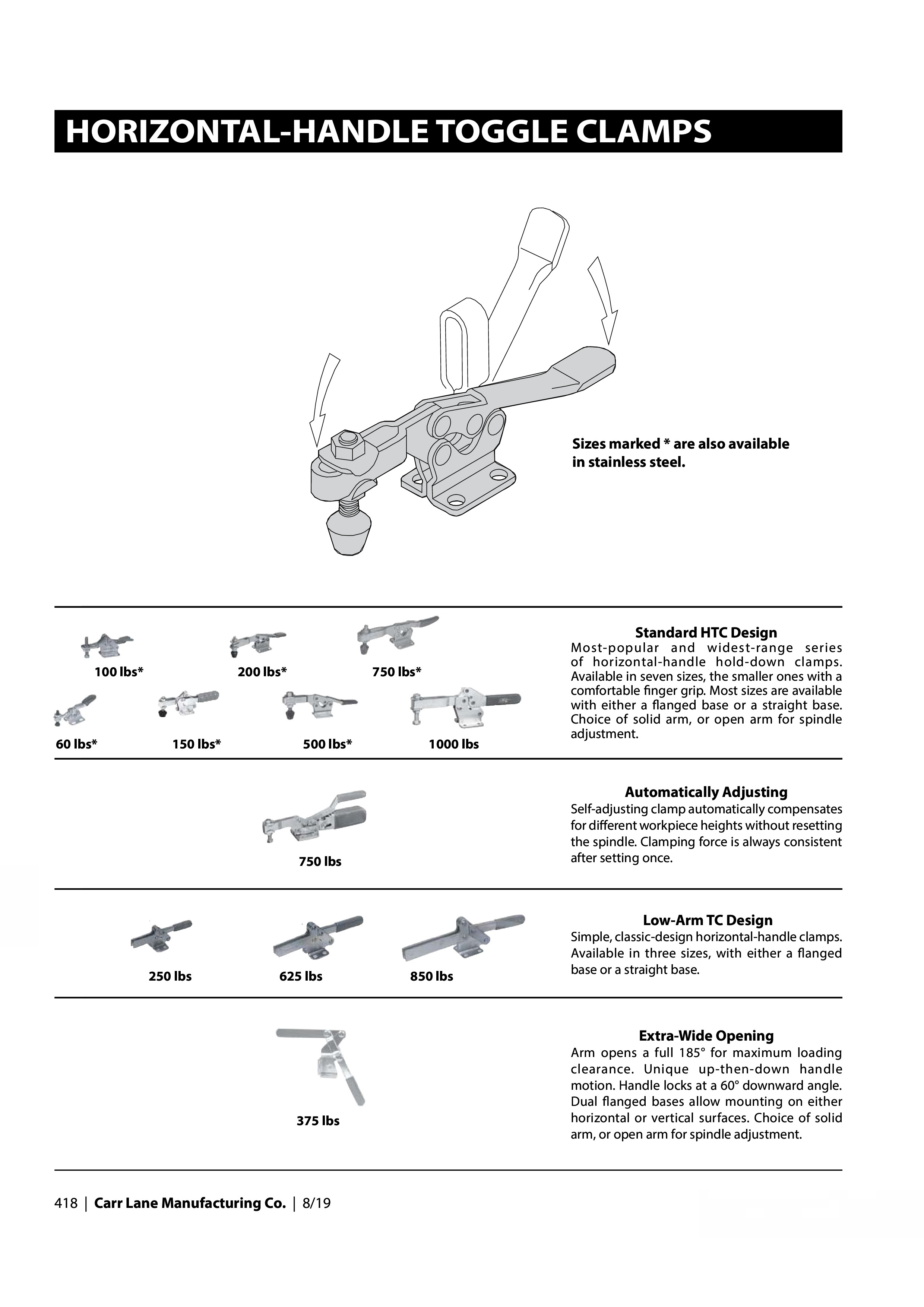

All specific measurements and finer details are shown on the Download Sheet
