Carr Lane Air-Powered Clamps

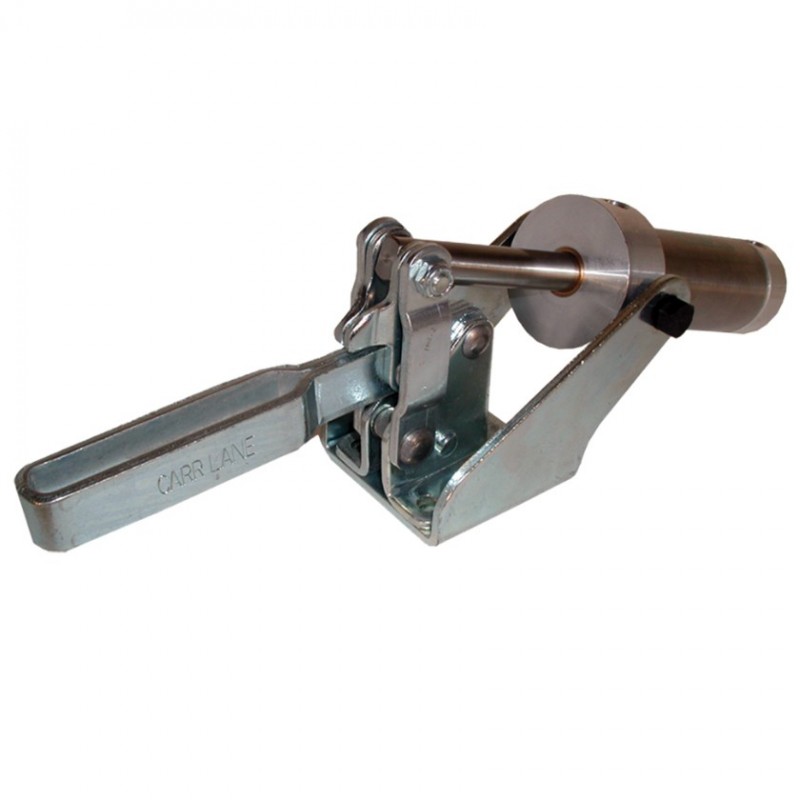

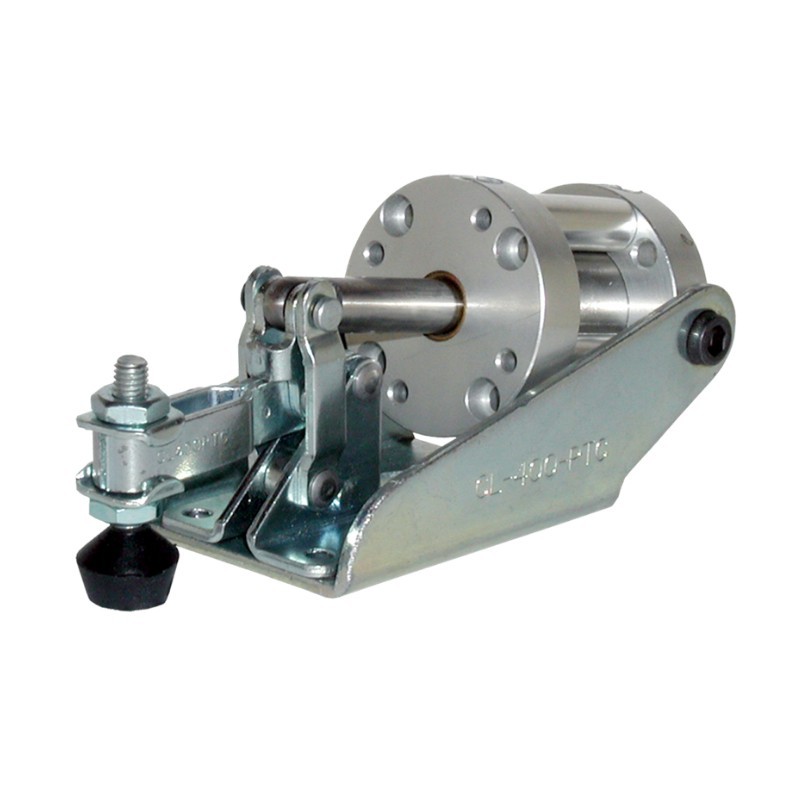

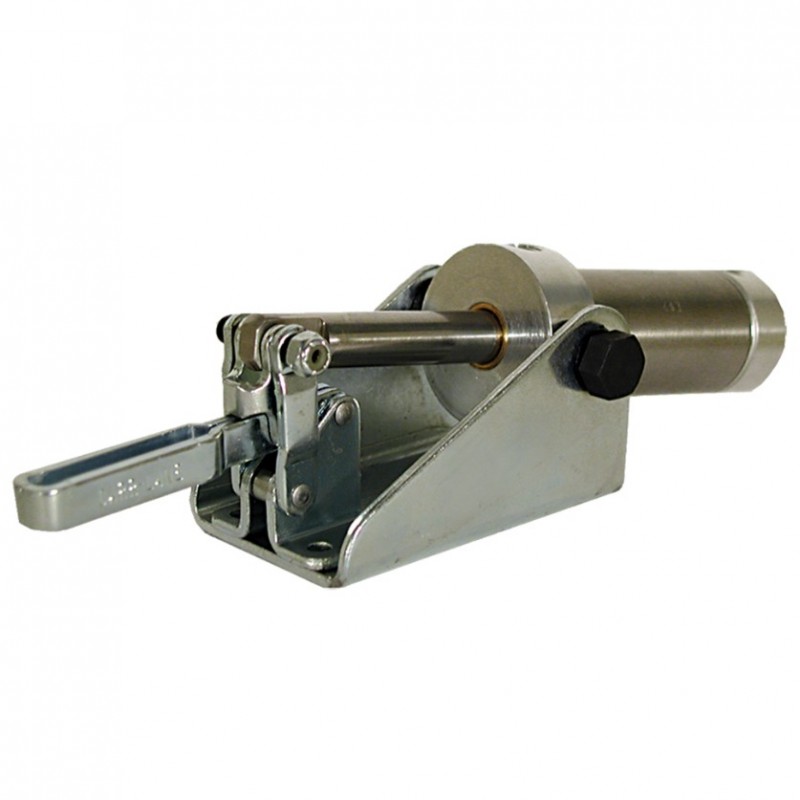

Carr Lane air-powered toggle clamps act similarly to a standard toggle clamp with the difference of being operated by a double acting cylinder rather than manually. These are a pneumatic variant of Carr Lane hydraulic swing clamps for when light clamping force is required in application. These clamps are available with several clamp types such as open arm open arm position sensing, solid arm and solid arm position sensing. This range offers products with varied holding capacities from 100lbs to 5000lbs.
- Various holding capacities
- Available in several clamp types
| Part Number | Material Number | Design | Holding Capacity | Clamp Type | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-1000-PTC | Toggle Hold Down Clamps | 500lbs | Open Arm | £196.72 £236.06 Inc. VAT |
|
|
| CL-1000-PTC-MP | Toggle Hold Down Clamps | 500lbs | Open Arm Position Sensing | £268.98 £322.78 Inc. VAT |
|
|
| CL-1001-PTC | Toggle Hold Down Clamps | 500lbs | Solid Arm | £196.72 £236.06 Inc. VAT |
|
|
| CL-1001-PTC-MP | Toggle Hold Down Clamps | 500lbs | Solid Arm Position Sensing | £268.98 £322.78 Inc. VAT |
|
|
| CL-400-PTC | Toggle Hold Down Clamps | 100lbs | Open Arm | £172.16 £206.59 Inc. VAT |
|
|
| CL-2000-PTC | Toggle Hold Down Clamps | 1000lbs | Open Arm | £366.16 £439.39 Inc. VAT |
|
|
| CL-400-PTC-MPD | Toggle Hold Down Clamps | 100lbs | Open Arm Position Sensing | £346.06 £415.27 Inc. VAT |
|
|
| CL-2000-PTC-MP | Toggle Hold Down Clamps | 1000lbs | Open Arm Position Sensing | £478.78 £574.54 Inc. VAT |
|
|
| CL-500-PTC | Toggle Hold Down Clamps | 200lbs | Open Arm | £177.65 £213.18 Inc. VAT |
|
|
| CL-3000-PTC | Toggle Hold Down Clamps | 5000lbs | Solid Arm | £932.39 £1,118.87 Inc. VAT |
|
|
| CL-500-PTC-MP | Toggle Hold Down Clamps | 200lbs | Open Arm Position Sensing | £290.56 £348.67 Inc. VAT |
|
Carr Lane Air-Powered Clamps
Carr Lane air-powered toggle clamps act similarly to a standard toggle clamp with the difference of being operated by a double acting cylinder rather than manually. These are a pneumatic variant of Carr Lane hydraulic swing clamps for when light clamping force is required in application. These clamps are available with several clamp types such as open arm open arm position sensing, solid arm and solid arm position sensing. This range offers products with varied holding capacities from 100lbs to 5000lbs.
Toggle Hold-Down Clamps
Similar to a vertical-handle hold-down clamp, except linkage is operated by a double-acting air cylinder instead of by hand. Toggle linkage provides high holding capacity and insures positive mechanical locking even if air pressure fails.
Toggle Push Clamps
Similar to a manual plunger clamp, except linkage is operated by a double acting air cylinder instead of by hand. Toggle linkage provides high holding capacity and insures positive mechanical locking even if air pressure fails.

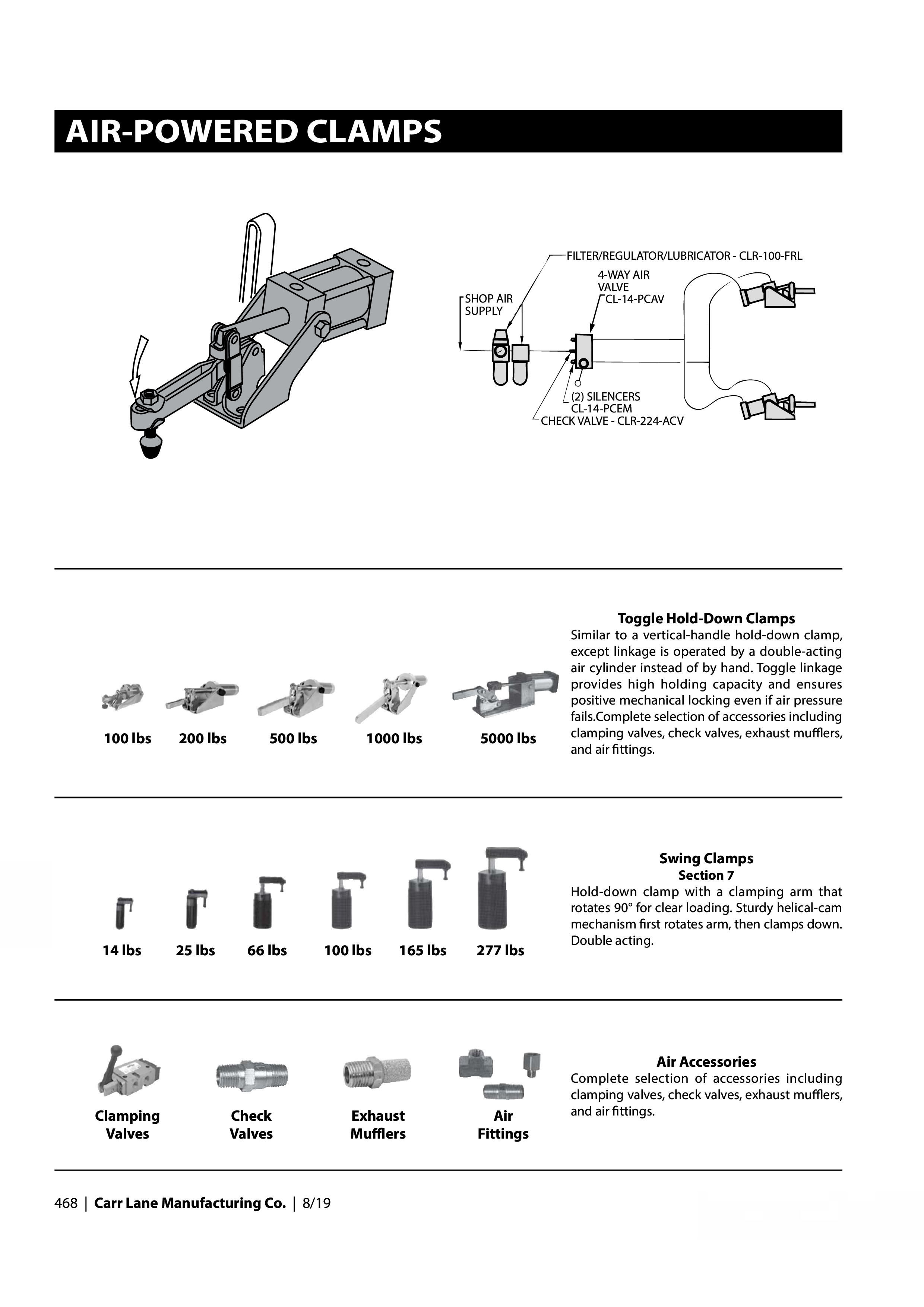

All specific measurements and finer details are shown on the Download Sheet
