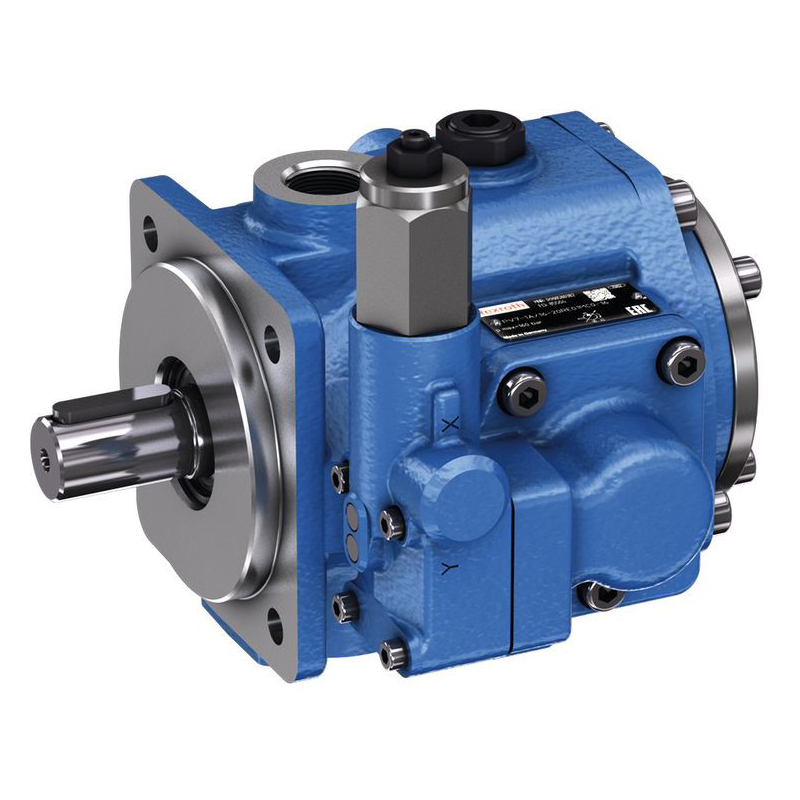

Bosch Rexroth Hydraulic Pilot Operated Variable Vane Pump Type PV7

PV7...C/D/N/W Series 1x Size 14 to 150

Adjustable vane pumps, pilot operated PV7

  •  Size 14 to 150
  •  Component series 1X
  •  Maximum operating pressure 160 bar
  •  Maximum flow 270 l/min
Print page

Products
Downloads
Description
Part Number Material Number Zero stroke pressure range CC Price Add to Parts List
PV7-1X/16-20RE01MC0-16 PV7-1X/16-20RE01MC0-16 R900580382 up to 160 bar 20 cm3 £1,995.52
£2,394.62 Inc. VAT
PV7-1X/40-45RE37MC0-16 PV7-1X/40-45RE37MC0-16 R900580384 up to 160 bar 45 cm3 £3,513.76
£4,216.51 Inc. VAT
PV7-1X/100-118RE07MC0-16 PV7-1X/100-118RE07MC0-16 R900506809 up to 160 bar 118 cm3 £5,087.82
£6,105.38 Inc. VAT
PV7-1X/25-30RE01MC0-16 PV7-1X/25-30RE01MC0-16 R900580383 up to 160 bar 30 cm3 £2,716.10
£3,259.32 Inc. VAT
PV7-1X/63-71RE07MC0-16 PV7-1X/63-71RE07MC0-16 R900506808 up to 160 bar 71 cm3 £4,131.95
£4,958.34 Inc. VAT
PV7-1X/10-14RE01MD0-16 PV7-1X/10-14RE01MD0-16 R900504653 up to 160 bar 14 cm3 £1,647.20
£1,976.64 Inc. VAT
PV7-1X/10-14RE01MC0-16 PV7-1X/10-14RE01MC0-16 R900580381 up to 160 bar 14 cm3 £1,583.40
£1,900.08 Inc. VAT
PV7-1X/10-20RE01MC0-10 PV7-1X/10-20RE01MC0-10 R900534143 up to 100 bar 20 cm3 £1,661.81
£1,994.17 Inc. VAT
PV7-1X/25-45RE01MC0-08 PV7-1X/25-45RE01MC0-08 R900534508 up to 80 bar 45 cm3 £2,851.68
£3,422.02 Inc. VAT
PV7-1X/16-30RE01MC0-08 PV7-1X/16-30RE01MC0-08 R900533582 up to 80 bar 30 cm3 £2,093.87
£2,512.64 Inc. VAT
PV7-1X/40-71RE37MC0-08 PV7-1X/40-71RE37MC0-08 R900535588 up to 80 bar 71 cm3 £3,686.57
£4,423.88 Inc. VAT

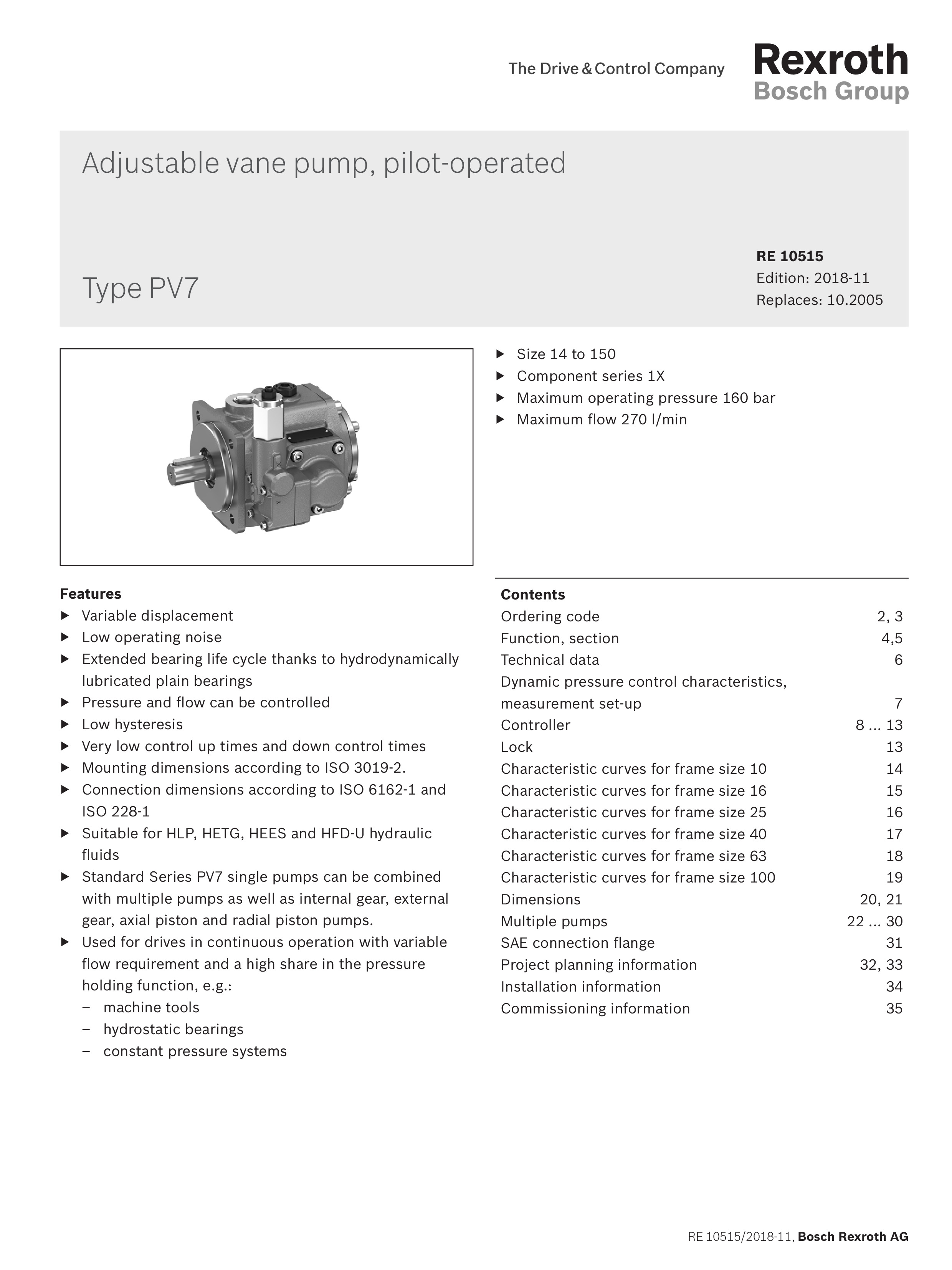

re10515_2018-11_

Bosch Rexroth Hydraulic Pilot Operated Variable Vane Pumps Type PV7...C/D/N/W 14cc to 150cc

  •  Size 14 to 150
  •  Component series 1X
  •  Maximum operating pressure 160 bar
  •  Maximum flow 270 l/min

Features:

  •  Variable displacement
  •  Low operating noise
  •  Extended bearing life cycle thanks to hydrodynamically lubricated plain bearings
  •  Pressure and flow can be controlled
  •  Low hysteresis
  •  Very low control up times and down control times
  •  Mounting dimensions according to ISO 3019-2.
  •  Connection dimensions according to ISO 6162-1 and ISO 228-1
  •  Suitable for HLP, HETG, HEES and HFD-U hydraulic fluids
  •  Standard Series PV7 single pumps can be combined with multiple pumps as well as internal gear, external gear, axial piston and radial piston pumps.
  •  Used for drives in continuous operation with variable flow requirement and a high share in the pressure holding function, e.g.: – machine tools – hydrostatic bearings – constant pressure systems
