A15VSO, A15VLO series 12 Size 110 to 280

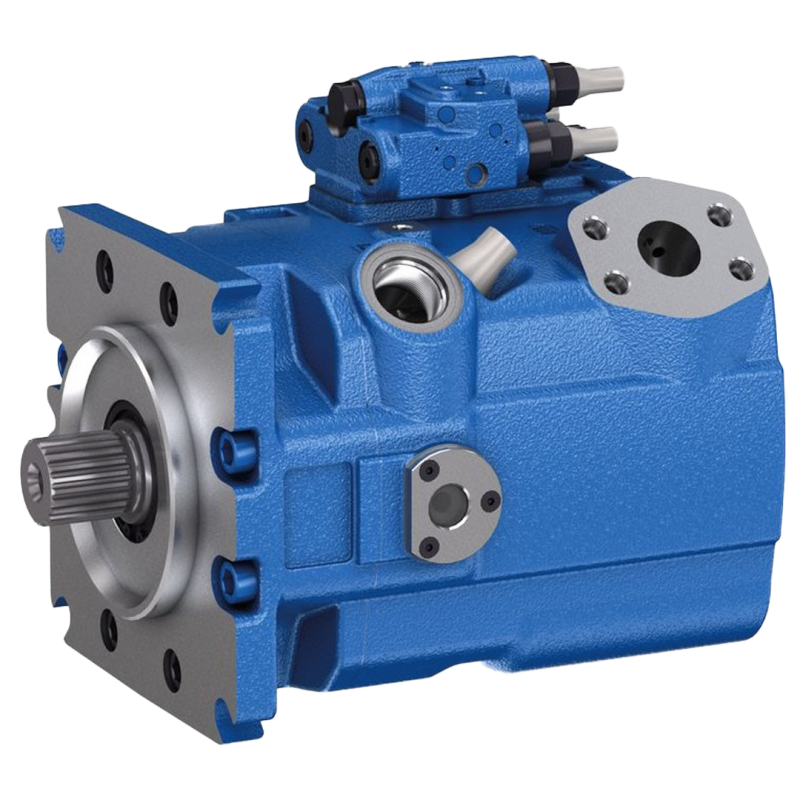

Bosch Rexroth Hydraulic Variable Displacement Axial Piston Pumps 110cc to 280cc

• All-purpose high pressure pump with through drive
• Size: 110 ... 280
• Nominal pressure: 350 bar
• Maximum pressure: 420 bar
• Open circuit

Features:

• Variable axial piston pump of swashplate design for hydrostatic drives in open circuit
• For use preferably in stationary applications
• The flow is proportional to the drive speed and displacement.
• The flow can be infinitely varied by adjusting the swashplate angle
• The pump can work either self-priming or with a charge pump
• A wide range of highly adaptable control devices with different control and regulating functions for stationary applications.
• 100% mooring function possible depending on specific controller (swivel mode, operation as a motor)
• The universal through drive is suitable for adding gear pumps and axial piston pumps up to the same size, i.e. 100% through drive
• Compact design
• High efficiency
• High power density
• Low noise level
