A4VSO Series 1x & 30 Size 40 to 1000

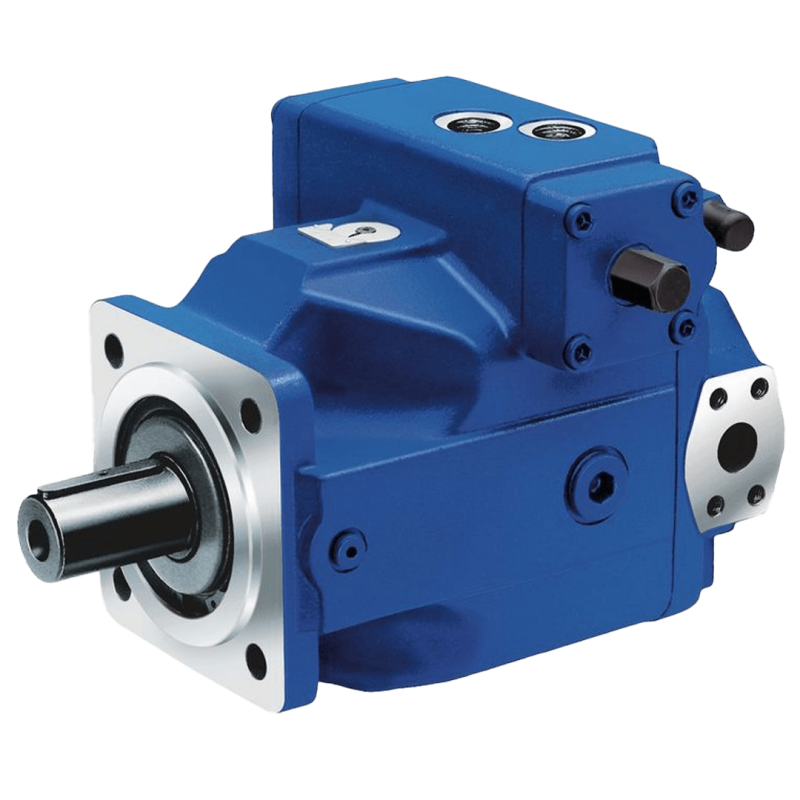

Bosch Rexroth Hydraulic variable axial piston pumps in swash plate design for hydrostatic drives in open circuit operation
- Robust high-pressure pump for industrial applications
- Size 40 … 1000
- Nominal pressure 350 / 380 bar
- Maximum pressure 400 / 420 bar
- Open circuit
Products
Downloads
Description
| Part Number | Material Number | No-Show | Price | Add to Parts List |
|---|---|---|---|---|
| A4VSO 125 DR /30R-PPB13N00 | R910994306 | 1 | £9,406.83 £11,288.20 Inc. VAT |
|
| A4VSO 180 DR /30R-PPB13N00 | R910999125 | 2 | £12,929.11 £15,514.93 Inc. VAT |
|
| A4VSO 250 DR /30R-PPB13N00 | R910974769 | 3 | £16,068.80 £19,282.56 Inc. VAT |
|
Bosch Rexroth Hydraulic Variable Displacement Axial Piston Pumps 40cc to 1000cc
- Robust high-pressure pump for industrial applications
- Size 40 … 1000
- Nominal pressure 350 / 380 bar
- Maximum pressure 400 / 420 bar
- Open circuit
Features:
- Variable displacement pump with axial piston rotary group of swashplate design for hydrostatic drives in open circuit
- Flow is proportional to the drive speed and displacement.
- The flow can be continuously changed by adjusting the swashplate.
- Excellent suction characteristics
- Low noise level
- With pre-compression volume for pressure pulsation reduction
- Nominal pressure 380 bar / maximum pressure 420 bar for selected control devices with port plate 36.
- Long service life
- Modular design
- Variable through drive options
- Optical swivel angle indicator
- Any installation position possible
- Suitable for variable-speed drives
- HF operation with reduced data possible for HFC operation, special version available
