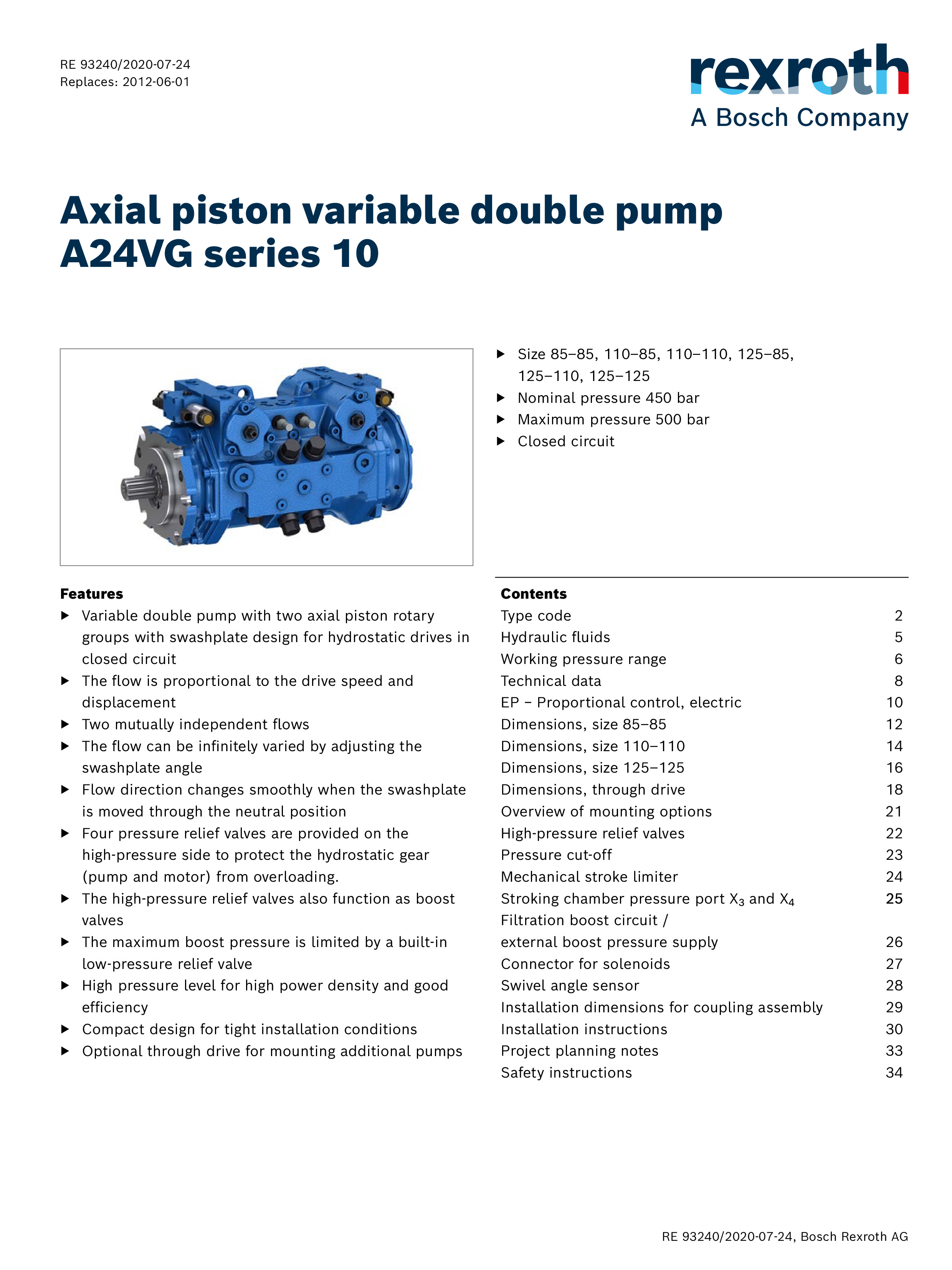

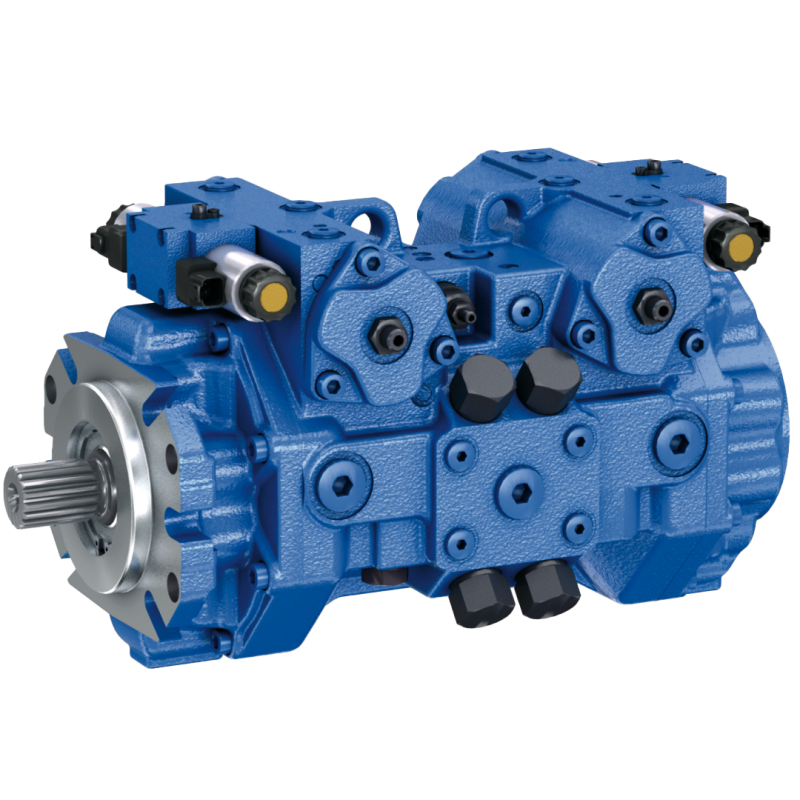

A24VG series 10 Size 85 to 125

Bosch Rexroth Hydraulic Variable Displacement Axial Piston Pumps 85cc to 125cc

•  Size 85–85, 110–85, 110–110, 125–85, 125–110, 125–125
•  Nominal pressure 450 bar
•  Maximum pressure 500 bar
•  Closed circuit

Features:

•  The flow is proportional to the drive speed and displacement
•  Two mutually independent flows
•  The flow can be infinitely varied by adjusting the swashplate angle
•  Flow direction changes smoothly when the swashplate is moved through the neutral position
•  Four pressure relief valves are provided on the high-pressure side to protect the hydrostatic gear (pump and motor) from overloading.
•  The high-pressure relief valves also function as boost valves
•  The maximum boost pressure is limited by a built-in low-pressure relief valve
•  High pressure level for high power density and good efficiency
•  Compact design for tight installation conditions
• Optional through drive for mounting additional pumps
