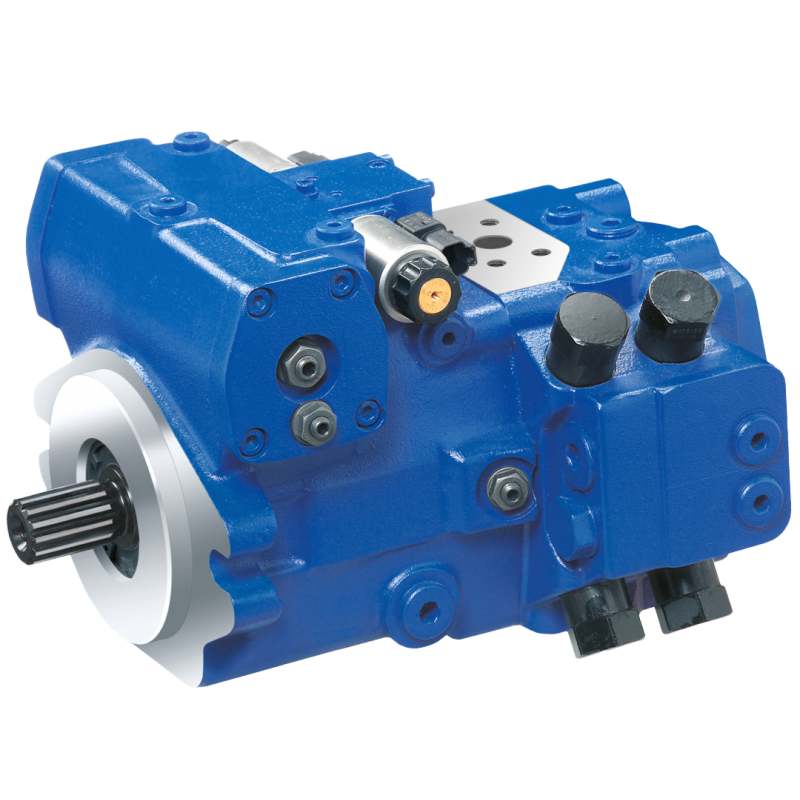

A30VG series 10 Size 28

Bosch Rexroth Hydraulic Variable Displacement Axial Piston Pumps 28cc

• Series 10
• Size NG28
• Nominal pressure 300 bar
• Maximum pressure 350 bar
• Closed circuit

Features:

• Two equal flows from one pump to supply two separate circuits
• All functions needed to achieve a differential lock effect are integrated in the pump
• The flow increases as the angle of the swashplate is adjusted from zero to its maximum value
• A wide range of highly adaptable control devices with different control and regulating functions, for all important applications
• Single control for both circuits
•  Two pressure-relief valves are provided on the high pressure ports to protect the hydrostatic transmission (pump and motor) from overload
• The high-pressure relief valves also function as boost valves
•  The integrated boost pump acts as a feed pump and control pressure supply
•  The maximum boost pressure is limited by a built-in boost pressure-relief valve
•  All types of hydraulic motor can be used as drive units
•  Short, compact design makes installation and wiring easier in tight spaces
