NC Hydraulic Machine Vice

NC Hydraulic Machine Vice

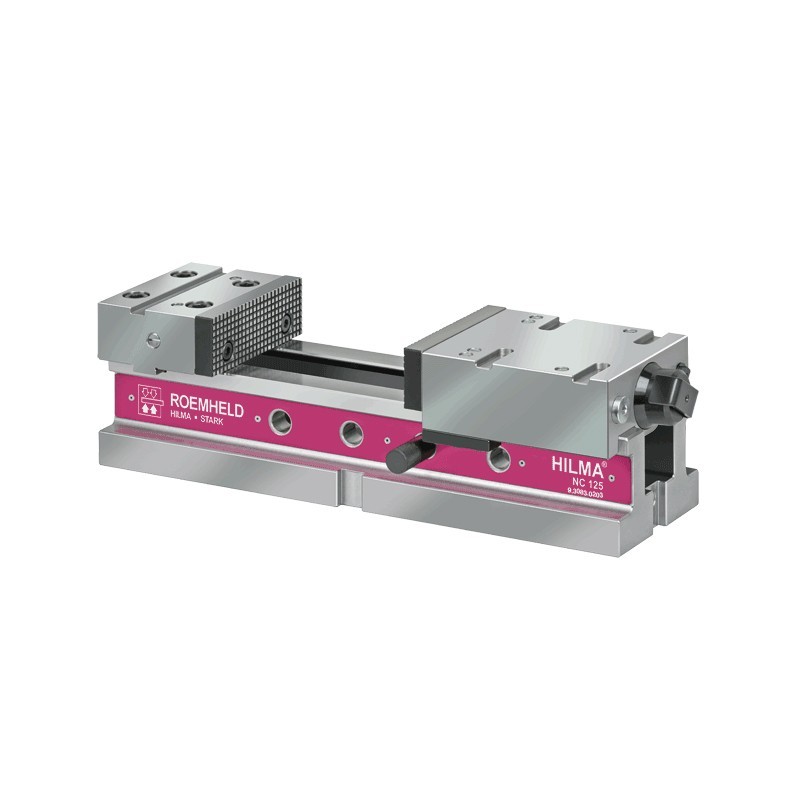

ROEMHELD Mechanically/Hydraulically or Hydraulically operated machine vice, for clamping against the fixed jaw. Available in sizes 100, 125, 150 and 160mm.

NC Machine Vice Mechanical-Hydraulic

For tool making, mould making, construction of jigs and fixtures and production The mechanical-hydraulic force transmission requires minimum effort on the crank handle. An angle drive (optional extra), that can also be retrofitted, facilitates the operation, e.g. in the case of longitudinal clamping on the machine table. The version with clamping force display allows a continuous and precise clamping force transmission. This offers enormous advantages, inter alia, in roughing and finishing operations as well as for the reproducibility of clamping forces. In addition, the clamping force display ensures adequate safety by the permanent clamping and system control.

NC Machine Vice Hydraulic

For use in semi or fully-automatic operation in series production, with connection to a separate hydraulic pressure transducer, e.g. a hydraulic power unit. Coarse adjustment of the clamping range using socket pins. Precise positioning against the workpiece and adjustment of the insertion tolerance manually using a lead screw. The clamping process is triggered by a hand or foot switch or, in the case of fully automatic working cycle, by and electrical control pulse.

Max. Clamping Force:

• NC 100 M: 25 kN
• NC 125 M: 40 kN
• NC 160 M: 50 kN
• NC 100 H: 25 kN at 350 bar
• NC 125 H: 40 kN at 350 bar
• NC 160 H: 63 kN at 350 bar
