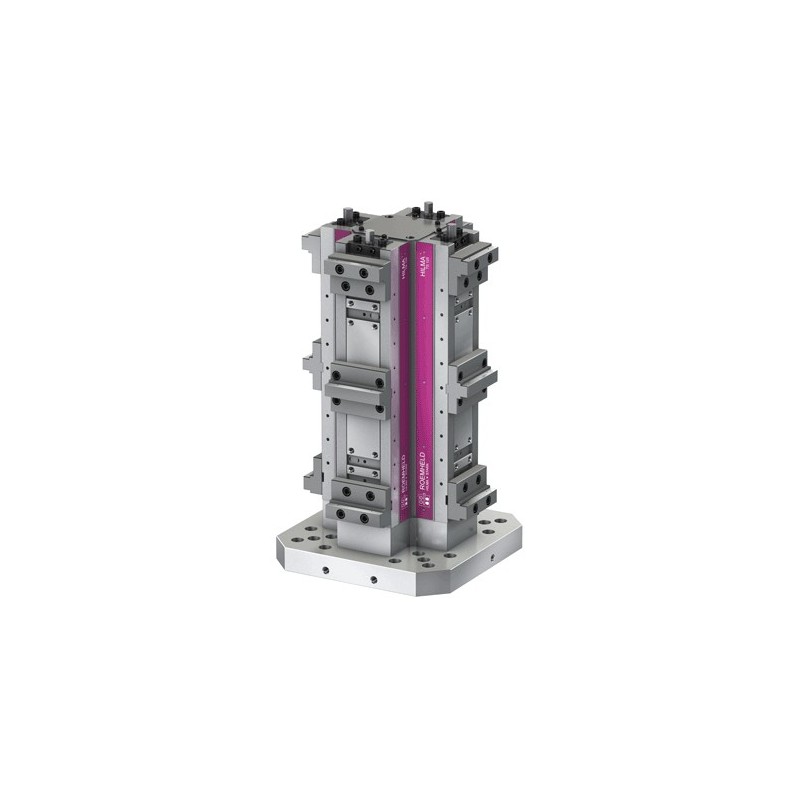

TS Tower Clamping Systems

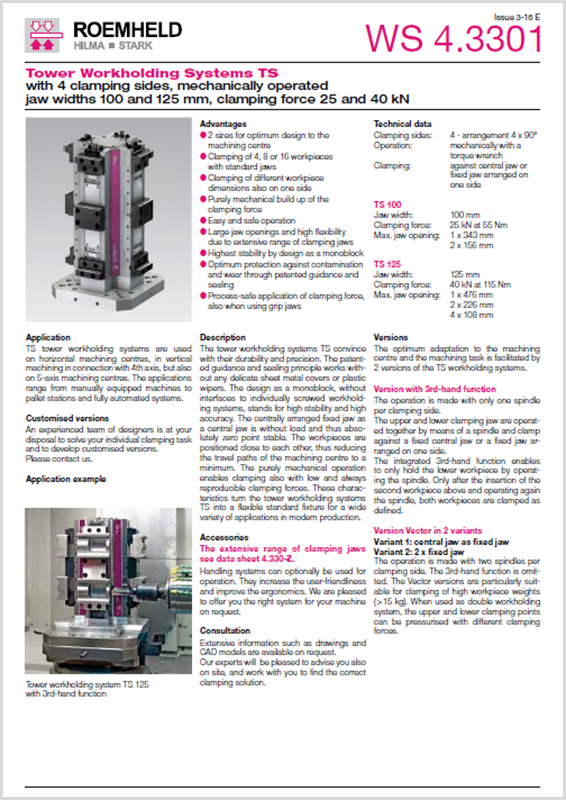

TS Tower Clamping Systems - ROEMHELD WS 4.3301

Advantages:

• 2 sizes for optimum design to the machining centre
• Clamping of 4, 8 or 16 workpieces with standard jaws
• Clamping of different workpiece dimensions also on one side
• Purely mechanical build up of the clamping force
• Easy and safe operation
• Large jaw openings and high flexibility due to extensive range of clamping jaws
• Highest stability by design as a monoblock
• Optimum protection against contamination and wear through patented guidance and sealing
• Process-safe application of clamping force, also when using grip jaws

Application:

TS tower workholding systems are used on horizontal machining centres, in vertical machining in connection with 4th axis, but also on 5-axis machining centres. The applications range from manually equipped machines to pallet stations and fully automated systems.

Description:

The tower workholding systems TS convince with their durability and precision. The patented guidance and sealing principle works without any delicate sheet metal covers or plastic wipers. The design as a monoblock, without interfaces to individually screwed workholding systems, stands for high stability and high accuracy. The centrally arranged fixed jaw as a central jaw is without load and thus absolutely zero point stable. The workpieces are positioned close to each other, thus reducing the travel paths of the machining centre to a minimum. The purely mechanical operation enables clamping also with low and always reproducible clamping forces. These characteristics turn the tower workholding systems TS into a flexible standard fixture for a wide variety of applications in modern production.
