Off Position Extended Work Supports

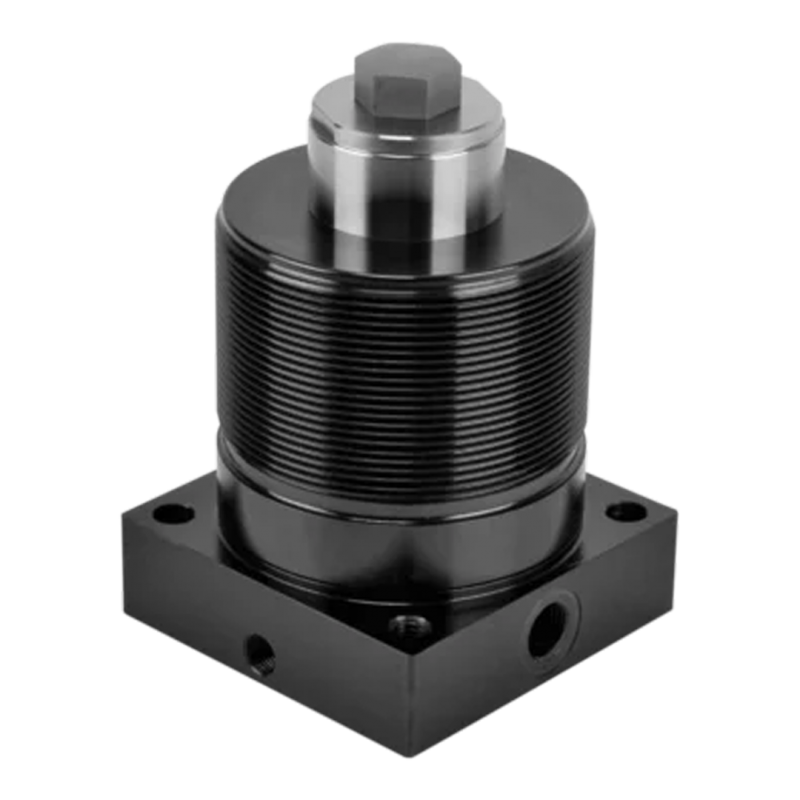

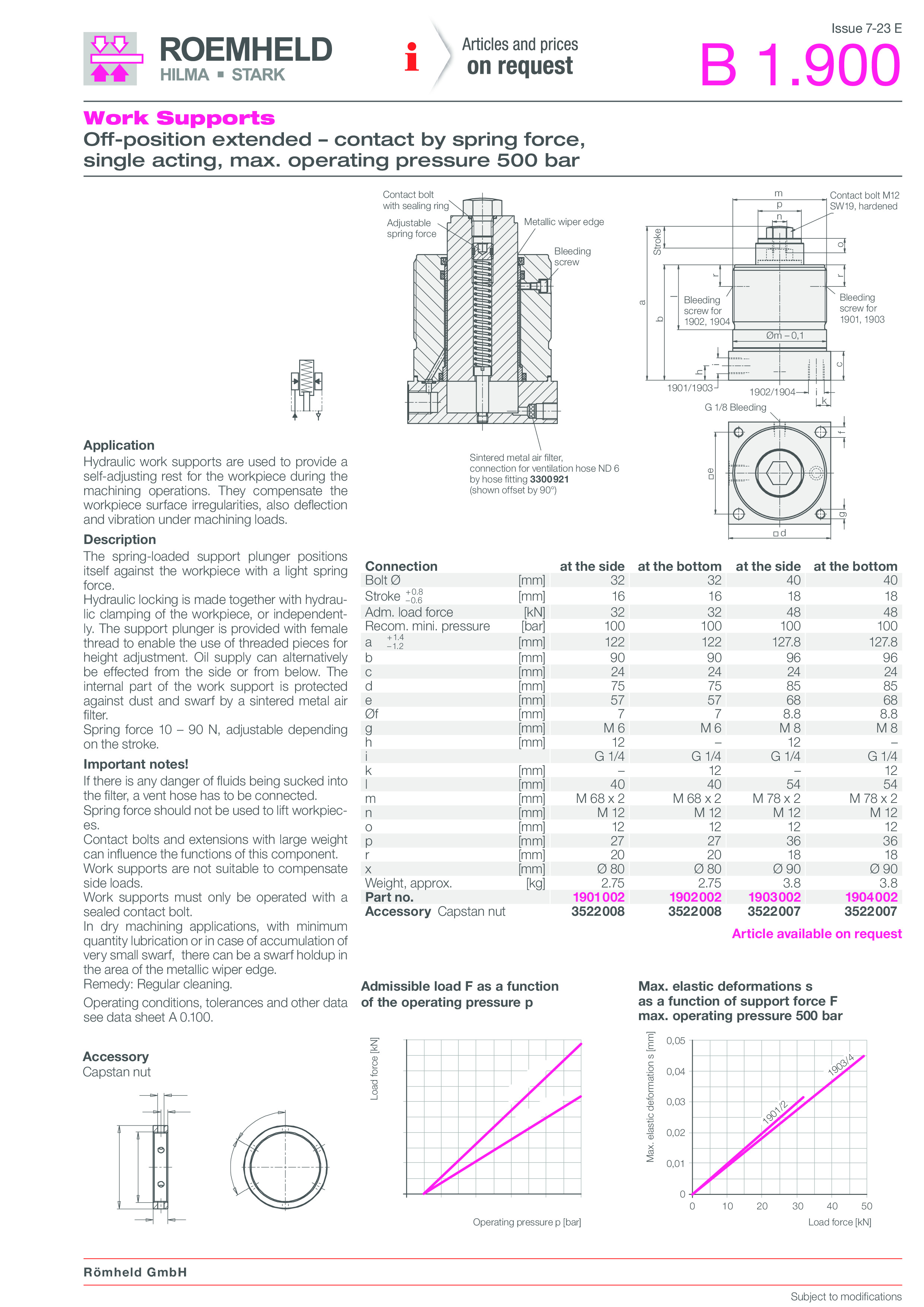

ROEMHELD B1.900 Work Supports: Off-position extended – contact by spring force, single acting
- Maximum operating pressure 500 bar
- External thread: M68 - M78
- Maximum load force: 32 - 48 kN
- Plunger diameter: 32 - 40 mm
- Plunger stroke: 16 - 18 mm
- Elastic deformation: 0.9 µm/kN
This spring-loaded plunger positions itself against the workpiece with an adjustable light spring force. Hydraulic locking is made together with hydraulic clamping of the workpiece, or independently. The support plunger is provided with female thread to enable the use of threaded pieces for height adjustment. Oil supply can alternatively be effected from the side or from below. The internal part of the work support is protected against dust and swarf by a sintered metal air filter. Recommended minimum pressure 100 bar.
Off Position Extended Work Supports - ROEMHELD B1.900
- Max. operating pressure 500 bar
- External thread: M68 - M78
- Max. load force: 32 - 48 kN
- Plunger diameter: 32 - 40 mm
- Plunger stroke: 16 - 18 mm
- Elastic deformation: 0.9 µm/kN
Application:
Hydraulic work supports are used to provide a self-adjusting rest for the workpiece during the machining operations. They compensate the workpiece surface irregularities, also deflection and vibration under machining loads.
Description:
The spring-loaded plunger positions itself against the workpiece with an adjustable light spring force. Hydraulic locking is made together with hydraulic clamping of the workpiece, or independently. The support plunger is provided with female thread to enable the use of threaded pieces for height adjustment. Oil supply can alternatively be effected from the side or from below. The internal part of the work support is protected against dust and swarf by a sintered metal air filter. Recommended minimum pressure 100 bar. Spring force adjustable 10 – 90 N, depending on the stroke.
