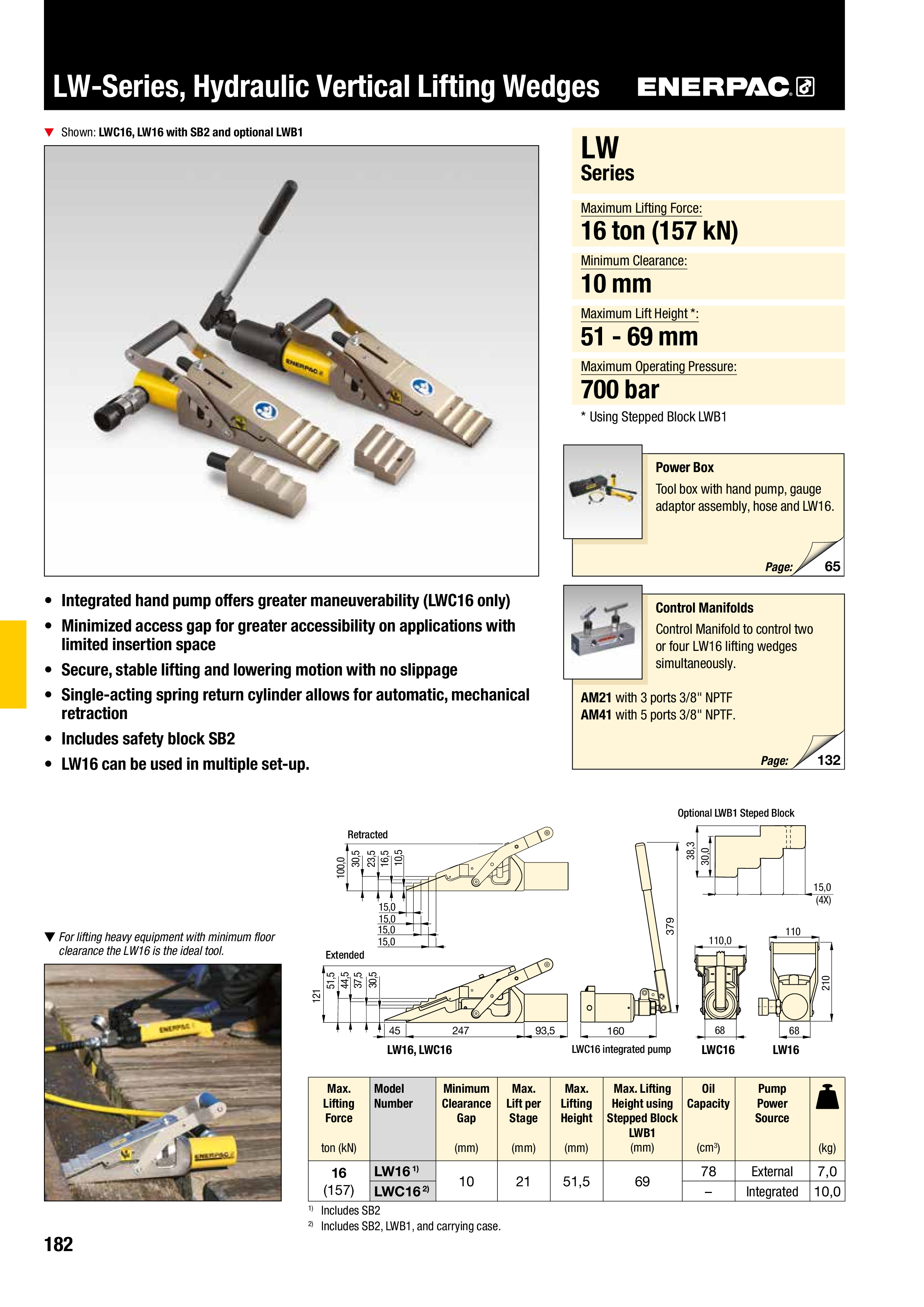

Enerpac LW-Series Hydraulic Vertical Lifting Wedge

Enerpac LW-Series Hydraulic Vertical Lifting Wedge

LW-Series Hydraulic Vertical Lifting Wedges require a very small access gap of only 10 mm

  • Max. Lifting Force: 16 ton
  • Lifting Stroke: 21 mm
  • Tip Clearance / Max. Spread: * 10 mm / 81,5

*Maximum spread 81,5 mm when using optional stepped block LWB-1

Products
Downloads
Description
Part Number Material Number No-Show Price Add to Parts List
LW16 LW16 LW-16 1 £2,496.00
£2,995.20 Inc. VAT

Enerpac LW-Series Hydraulic Vertical Lifting Wedge

  • Max. Lifting Force: 16 ton
  • Lifting Stroke: 21 mm
  • Tip Clearance / Max. Spread: * 10 mm / 81,5

Features:

  • Hydraulic vertical lifting wedge has lifting force of 16 tons at 700 bar hydraulic pressure
  • Requires very small access gap of only 10 mm
  • Each step can spread under full load
  • Straight vertical lifting
  • Unique interlocking wedge design: no first step bending and risk of slipping out
  • Single-acting, spring return cylinder
  • Lifting wedge LW-16 includes safety block SB-2
  • Includes RC-Series Cylinder with CR-400 coupler
Quantity Unit discount You Save
