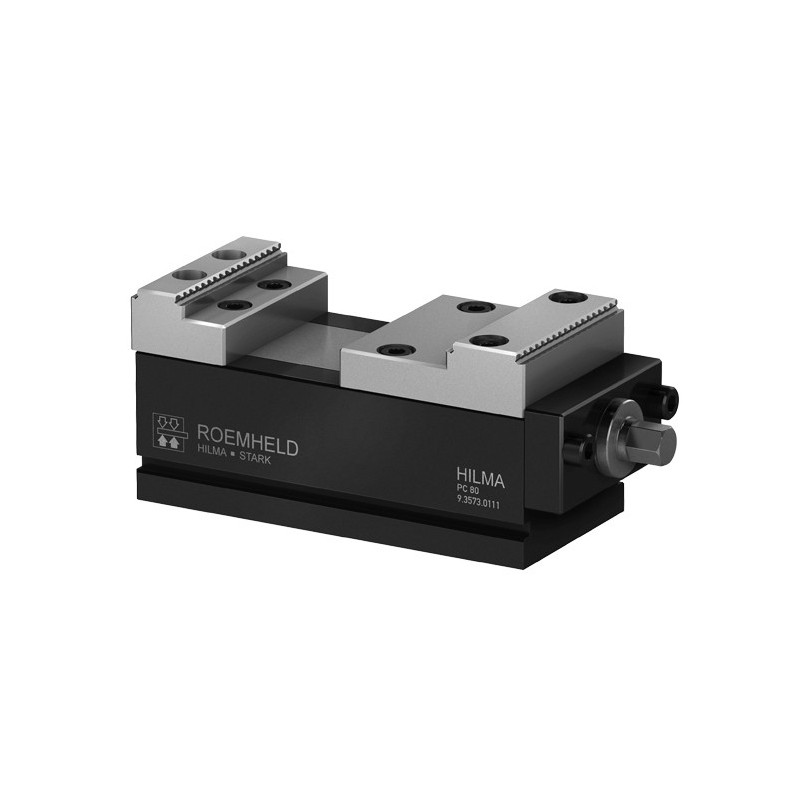

PC-80 Pallet Clamps
ROEMHELD WS 5.3570 - Workholding Systems PC 80 mechanically operated, clamping against the fixed jaw or concentric clamping jaw
Max. Clamping Force:
- PC 80 F: 20 kN at 60 Nm
- PC 80 Z: 20 kN at 60 Nm

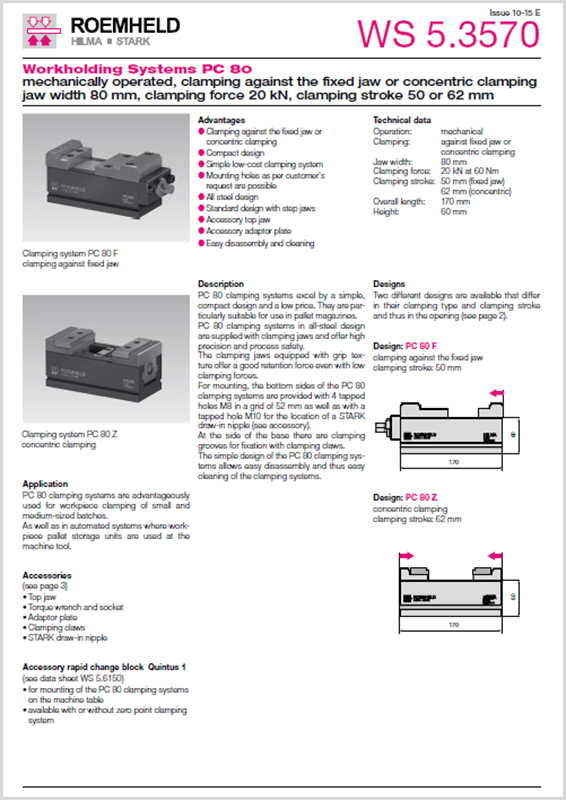

PC-80 Pallet Clamps - ROEMHELD WS 5.3570
Max. Clamping Force:
- PC 80 F: 20 kN at 60 Nm
- PC 80 Z: 20 kN at 60 Nm
Advantages:
- Clamping against the fixed jaw or concentric clamping
- Compact design
- Simple low-cost clamping system
- Mounting holes as per customer's request are possible
- All steel design
- Standard design with step jaws
- Accessory top jaw
- Accessory adaptor plate
- Easy disassembly and cleaning
Application:
PC 80 clamping systems are advantageously used for workpiece clamping of small and medium-sized batch es. As well as in automated systems where workpiece pallet storage units are used at the machine tool.
Description:
PC 80 clamping systems excel by a simple, compact design and a low price. They are particularly suitable for use in pallet magazines. PC 80 clamping systems in all-steel design are supplied with clamping jaws and offer high precision and process safety. The clamping jaws equipped with grip texture offer a good retention force even with low clamping forces. For mounting, the bottom sides of the PC 80 clamping systems are provided with 4 tapped holes M8 in a grid of 52 mm as well as with a tapped hole M10 for the location of a STARK draw-in nipple. At the side of the base there are clamping grooves for fixation with clamping claws. The simple design of the PC 80 clamping systems allows easy disassembly and thus easy cleaning of the clamping systems.
