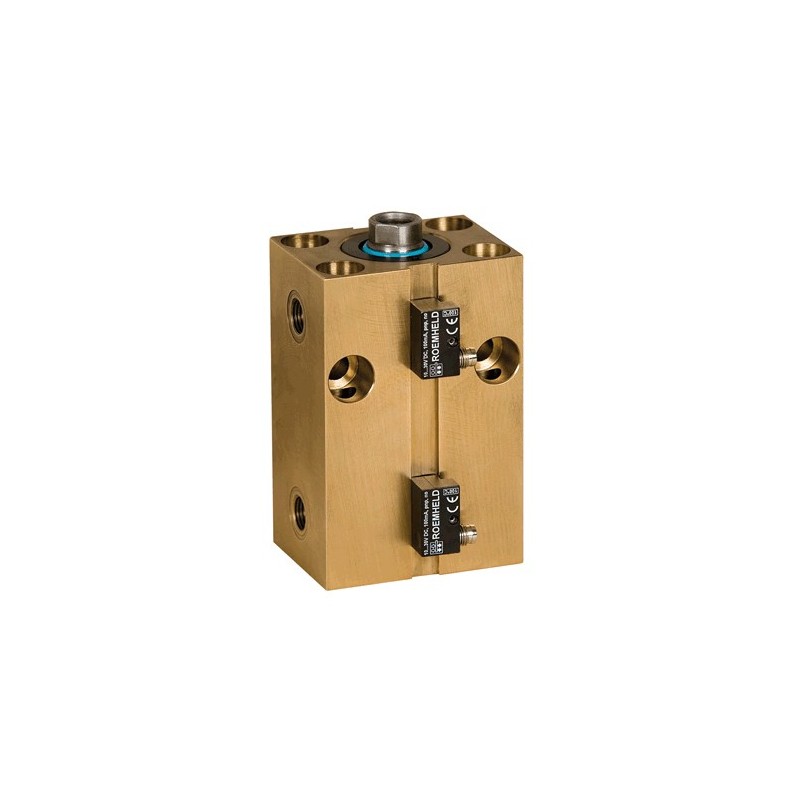

Block Cylinder with Bronze Housing for Adjustable Magnetic Sensors

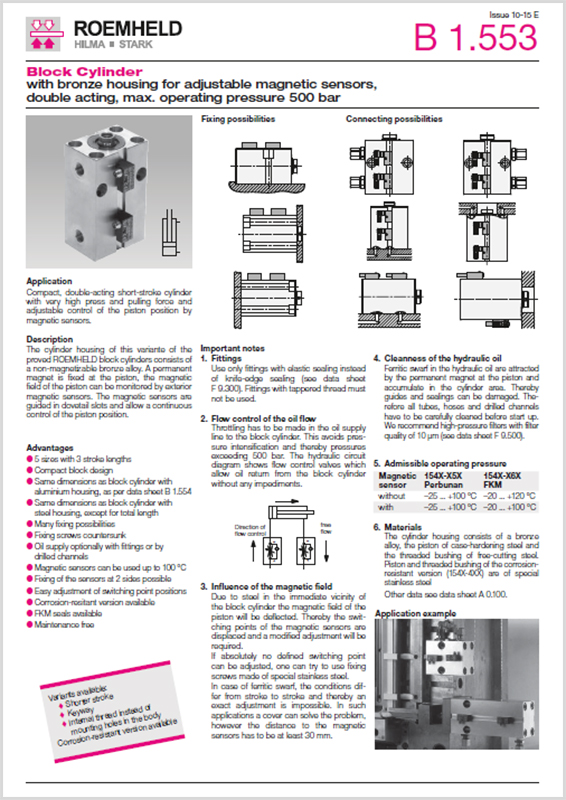

ROEMHELD B1.553 Compact, Double-Acting Short-Stroke Cylinder with very high press and pulling force and adjustable control of the piston position by magnetic sensors.
- Maximum operating pressure 500 bar
- Piston diameter 25 - 63 mm
- Rod diameter 16 - 40 mm
- Stroke 20 - 100 mm
- Maximum push force 24.5 - 155.9 kN
Description
Downloads
Block Cylinder with Bronze Housing for Adjustable Magnetic Sensors - ROEMHELD B1.553
- Max. operating pressure 500 bar
- Piston diameter: 25 - 63 mm
- Rod diameter: 16 - 40 mm
- Stroke: 20 - 100 mm
- Max. push force: 24.5 - 155.9 kN
Advantages:
- 5 sizes with 3 stroke lengths
- Compact block design
- Same dimensions as block cylinder with aluminium housing, as per data sheet B 1.554
- Same dimensions as block cylinder with steel housing, except for total length
- Many fixing possibilities
- Fixing screws countersunk
- Oil supply optionally with fittings or by drilled channels
- Magnetic sensors can be used up to 100 °C
- Fixing of the sensors at 2 sides possible
- Easy adjustment of switching point positions
- Corrosion-resitant version available
- FKM seals available
- Maintenance free
Application:
Compact, double-acting short-stroke cylinder with very high press and pulling force and adjustable control of the piston position by magnetic sensors.
Description:
The cylinder housing of this variante of the proved ROEMHELD block cylinders consists of a non-magnetizable bronze alloy. A per manent magnet is fixed at the piston, the magnetic field of the piston can be monitored by exterior magnetic sensors. The magnetic sensors are guided in dovetail slots and allow a continuous control of the piston position.
