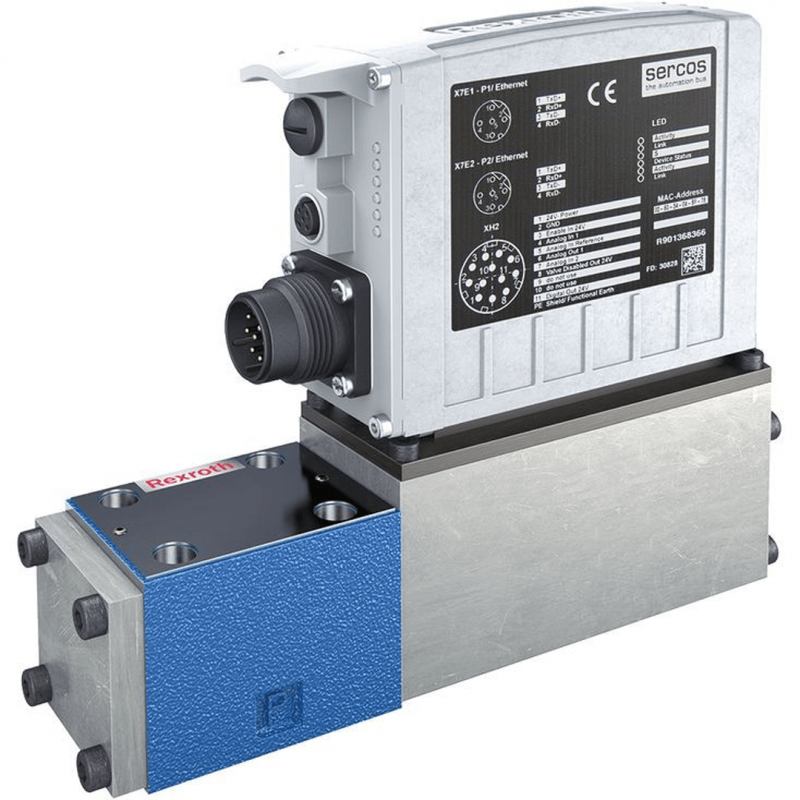

Bosch Rexroth High-response Valve with Integrated Digital Axis Controller (IAC-Multi-Ethernet) 4WRPDH

4WRPDH Size 6 & 10 Series 2x

High-response directional valve, direct operated with integrated digital axis controller (IAC-Multi-Ethernet) for subplate mounting 4WRPDH

  • Component series 2X
  • Size 6, 10
  • Maximum operating pressure 350 bar
  • Maximum flow 100 l/min

Description
Downloads

Bosch Rexroth High-response Valve with Integrated Digital Axis Controller (IAC-Multi-Ethernet) 4WRPDH

  • Component series 2X
  • Size 6, 10
  • Maximum operating pressure 350 bar
  • Maximum flow 100 l/min

Features:

  • Open
    - Integrated digital axis control functionality (IAC-Multi-Ethernet)
    - Bus connection/service interface (Sercos, EtherCAT, EtherNet/IP, PROFINET RT, POWERLINK, VARAN)
  • Scalable
    - 2 configurable analog sensor inputs
    - 1 input for linear position measurement system (SSI, 1Vpp or EnDat 2.2)
  • Safe
    - Internal safety function (can be used up to category 4/PL e according to EN13849-1
    - CE conformity according to EMC Directive 2014/30/EU
  • Precise
    - Best-in-class hydraulic controller
    - High response sensitivity and little hysteresis
