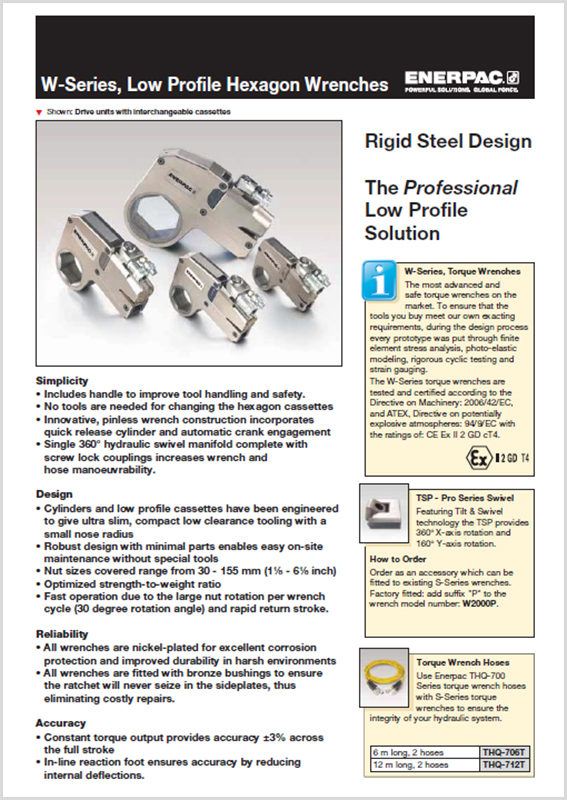

Enerpac W-Series Low Profile Hexagon Hydraulic Torque Wrenches

Enerpac W-Series Low Profile Hexagon Hydraulic Torque Wrenches

• Max. Torque; 47.454 Nm
• Hexagon Range: 30 - 155 mm
• Max. Pressure; 690 bar

Simplicity:

• Includes handle to improve tool handling and safety
• No tools are needed for changing the hexagon cassettes
• Innovative, pinless wrench construction incorporates quick release cylinder and automatic crank engagement
• Single 360° hydraulic swivel manifold complete with screw lock couplings increases wrench and hose manoeuvrability

Design:

• Cylinders and low profile cassettes have been engineered to give ultra slim, compact low clearance tooling with a small nose radius
• Robust design with minimal parts enables easy on-site maintenance without special tools
• Nut sizes covered range from 30 - 155 mm (1⅛ - 6⅛ inch)
• Optional interchangeable metric and imperial hexagon heads and reducer inserts
• Optimized strength-to-weight ratio
• Fast operation due to the large nut rotation per wrench cycle (30 degree rotation angle) and rapid return stroke

Reliability:

• All wrenches are nickel-plated for excellent corrosion protection and improved durability in harsh environments
• All wrenches are fitted with bronze bushings to ensure the ratchet will never seize in the side plates, thus eliminating costly repairs
• Tested and certified according to the Directive on Machinery: 2006/42/EC
• ATEX tested and certified according to the Directive on potentially explosive atmospheres: 94/9/EC with the ratings of: CE Ex II 2 GD cT4

Accuracy:

• Constant torque output provides accuracy ±3% across the full stroke
• In-line reaction foot ensures accuracy by reducing internal deflections
• The most advanced and safe torque wrenches on the market
