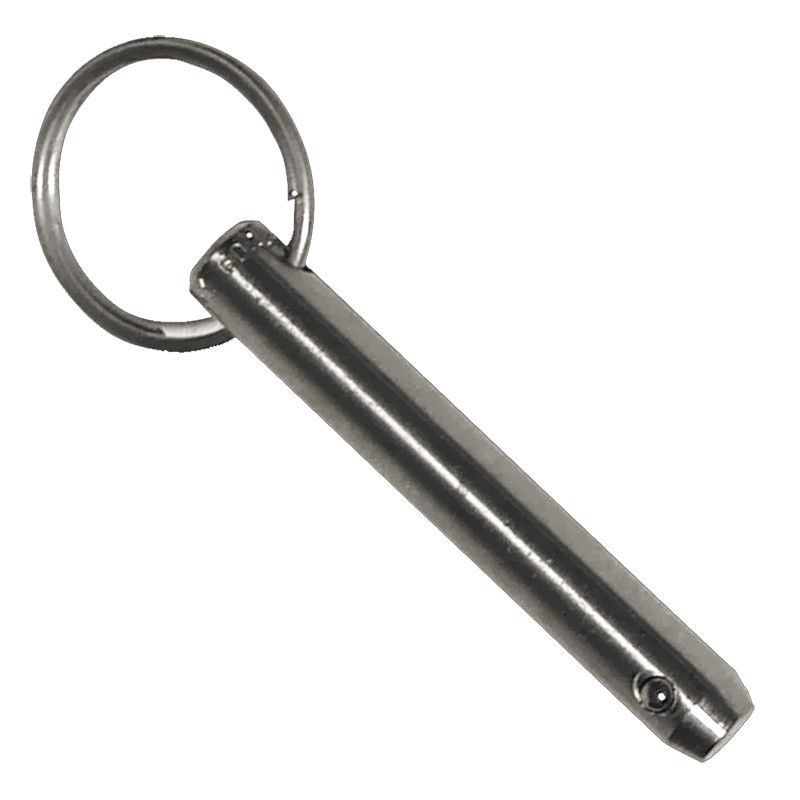

Economical , quick-release detent pin used in applications where grip length isn't important. These alignment pins are are equipped with a on spring-loaded locking ball and has a ring rather than a solid shoulder. The locking balls use spring force to lock the pin in place and doesn't use positive locking like a ball lock pin. Using these detent pins is easy, simply push the pin to insert and pull to remove.
| Part Number | Material Number | External Diameter | Grip Length | Cable Assembly | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-3-EDP-1.00 | .1855/.1880 | 1.00 | No | £2.71 £3.25 Inc. VAT |
|
|
| CL-3-EDP-1.00-C | .1855/.1880 | 1.00 | Yes | £4.27 £5.12 Inc. VAT |
|
|
| CL-4-EDP-1.50 | .2480/.2505 | 1.50 | No | £2.57 £3.08 Inc. VAT |
|
|
| CL-4-EDP-1.50-C | .2480/.2505 | 1.50 | Yes | £4.14 £4.97 Inc. VAT |
|
|
| CL-4-EDP-1.25 | .2480/.2505 | 1.25 | No | £2.34 £2.81 Inc. VAT |
|
|
| CL-4-EDP-1.25-C | .2480/.2505 | 1.25 | Yes | £3.91 £4.69 Inc. VAT |
|
|
| CL-5-EDP-1.00 | .3105/.3130 | 1.00 | No | £2.58 £3.10 Inc. VAT |
|
|
| CL-5-EDP-1.00-C | .3105/.3130 | 1.00 | Yes | £4.16 £4.99 Inc. VAT |
|
|
| CL-8-EDP-1.50 | .4980/.5005 | 1.50 | No | £3.86 £4.63 Inc. VAT |
|
|
| CL-8-EDP-1.50-C | .4980/.5005 | 1.50 | Yes | £5.44 £6.53 Inc. VAT |
|
|
| CL-8-EDP-2.00 | .4980/.5006 | 2.00 | No | £4.26 £5.11 Inc. VAT |
|
|
| CL-8-EDP-2.00-C | .4980/.5006 | 2.00 | Yes | £5.83 £7.00 Inc. VAT |
|
Economical, quick-release alignment pin with a solid steel shank and one spring-loaded locking ball. This type of Detent Pin has a ring instead of a solid shoulder, for applications where exact grip length is not important. Locking ball holds the detent pin in place by spring force (not positive locking like a Ball Lock Pin). Simply push the detent pin to insert, and pull to remove.
Available in standard pin diameters 3/16", 1/4", 5/16", and 1/2", in the standard grip lengths.
For other diameters and grip lengths, see Marine Detent Pins (the stainless steel version of this pin).
To order detent pins with a standard 12" cable assembly attached add "-C" to the part number or for an optional 10" nylon lanyard, add "-NL" to the part number.
Locking ball holds the detent pin in place by spring force. Simply push the detent pin to insert, and pull to remove.
| Quantity | Unit discount | You Save |
|---|
Ferrules are for crimping on our nylon-coated cable to make a loop, available for all four standard cable sizes
Terminals are for crimping on our nylon-coated cable, to allow attaching the end with a screw
Cable Rings allow attaching Cable Assemblies to a diameter or radial groove and can be used with cable sizes #1, #2, and #3
Cable Tabs attach to our nylon-coated cable, to allow attaching the end with a screw, available in teardrop and rectangular shape
Plier-type cable crimping tool designed for manually crimping terminals and ferrules on cables. The standard crimping tool shown below can crimp #1 or #2 cables for ferrules CL-1-F, CL-2-F, and CL-4-F. All Carr Lane crimping tools are capable of bending, cutting, stripping, and crimping our nylon-coated cables and other electrical wiring. The handheld, manual crimpers provide enhanced mobility, making it easier to crimp cable and wiring in hard-to-reach areas. Additionally these Carr Lane crimping tools offer a user-friendly and effective solution to meet your specific application needs.
High-strength stranded wire cable with a green nylon coatin and a choice of four cable diameters
