H-4WMM Size 16 to 32 Series 5x & 7x
Directional spool valves with hand lever actuation H-4WMM, 4/3 and 4/2 direct operated for sub plate mounting
- Sizes 16 to 32
- Component series 5X; 7X
- Maximum operating pressure 350 bar
- Maximum flow 450 l/min
Description

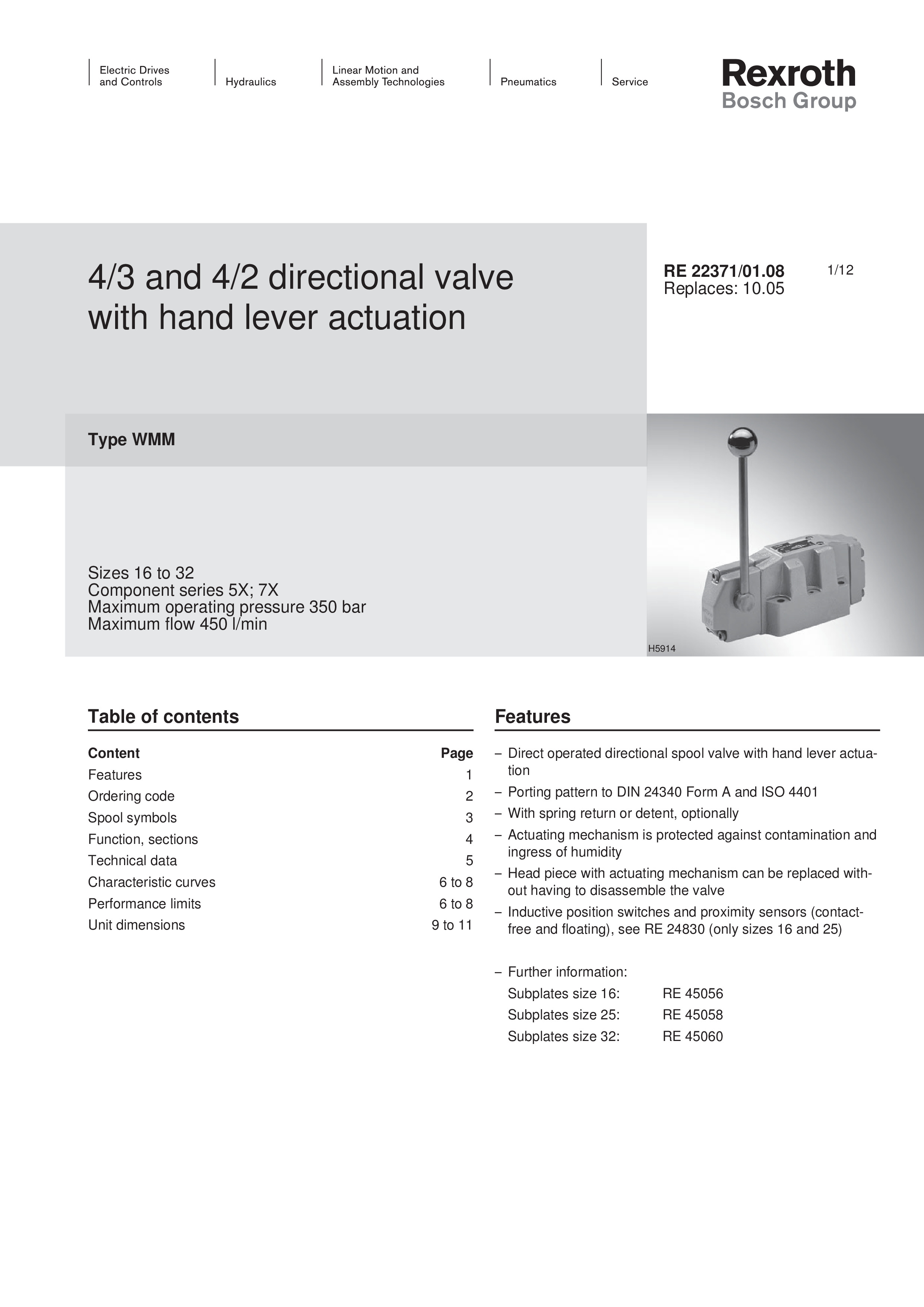

Downloads

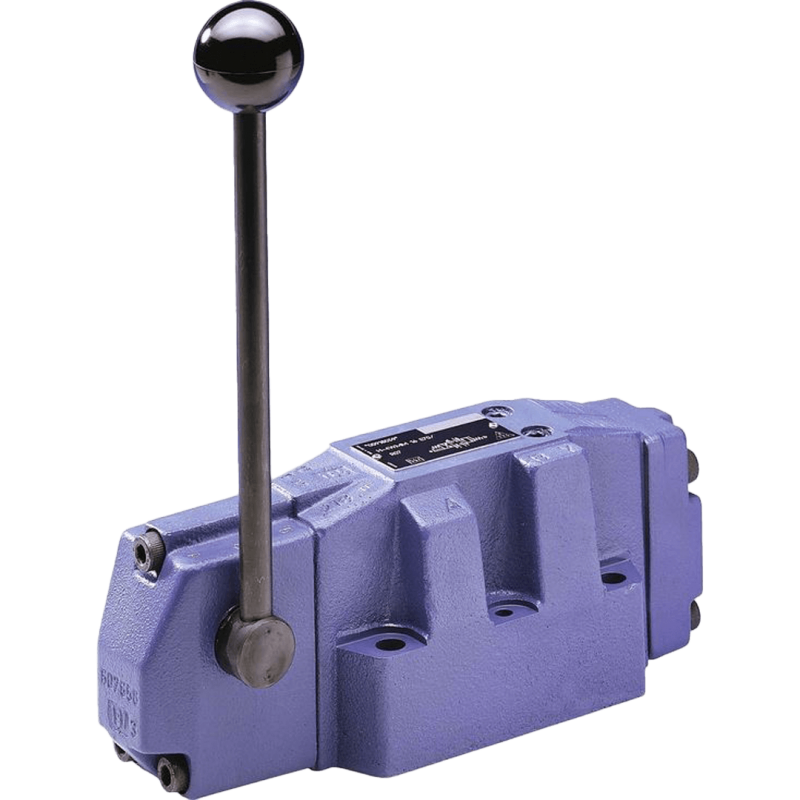

Bosch Rexroth Directional Spool Valves with Hand Lever Actuation H-4WMM
- Sizes 16 to 32
- Component series 5X; 7X
- Maximum operating pressure 350 bar
- Maximum flow 450 l/min
Features:
- Direct operated directional spool valve with hand lever actuation
- Porting pattern to DIN 24340 Form A and ISO 4401
- With spring return or detent, optionally
- Actuating mechanism is protected against contamination and ingress of humidity
- Head piece with actuating mechanism can be replaced with-out having to disassemble the valve
- Inductive position switches and proximity sensors (contact-free and floating), see RE 24830 (only sizes 16 and 25)
