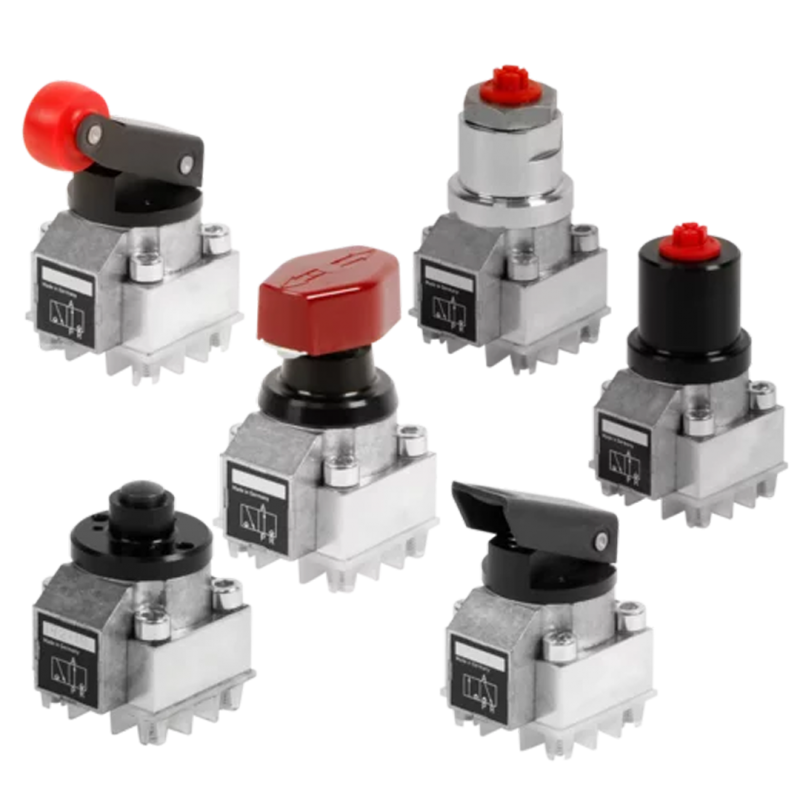

Manually Operated Directional Control Valves ND 4
ROEMHELD C 2.320 Manually Operated Directional Control Valve ND 4
- Port size: G 1/4
- Adm. flow rate: 8 l/min
- Hydraulic oil: HLP 22
- Angle of rotation: 90º
- Operating torque: 0.63 Nm
- Manually Operated
- Maximum operating pressure: 500 bar
Products
Downloads
Description
| Part Number | Material Number | Type | Price | Add to Parts List |
|---|---|---|---|---|
| 2321-302 | 2/2 directional control valve without check valve | £281.25 £337.50 Inc. VAT |
|
|
| 2321-201 | 3/2 directional control valve without check valve | £306.81 £368.18 Inc. VAT |
|
|
| 3534-039 | 3/2 directional control valve with built-in check valve | £90.84 £109.01 Inc. VAT |
|

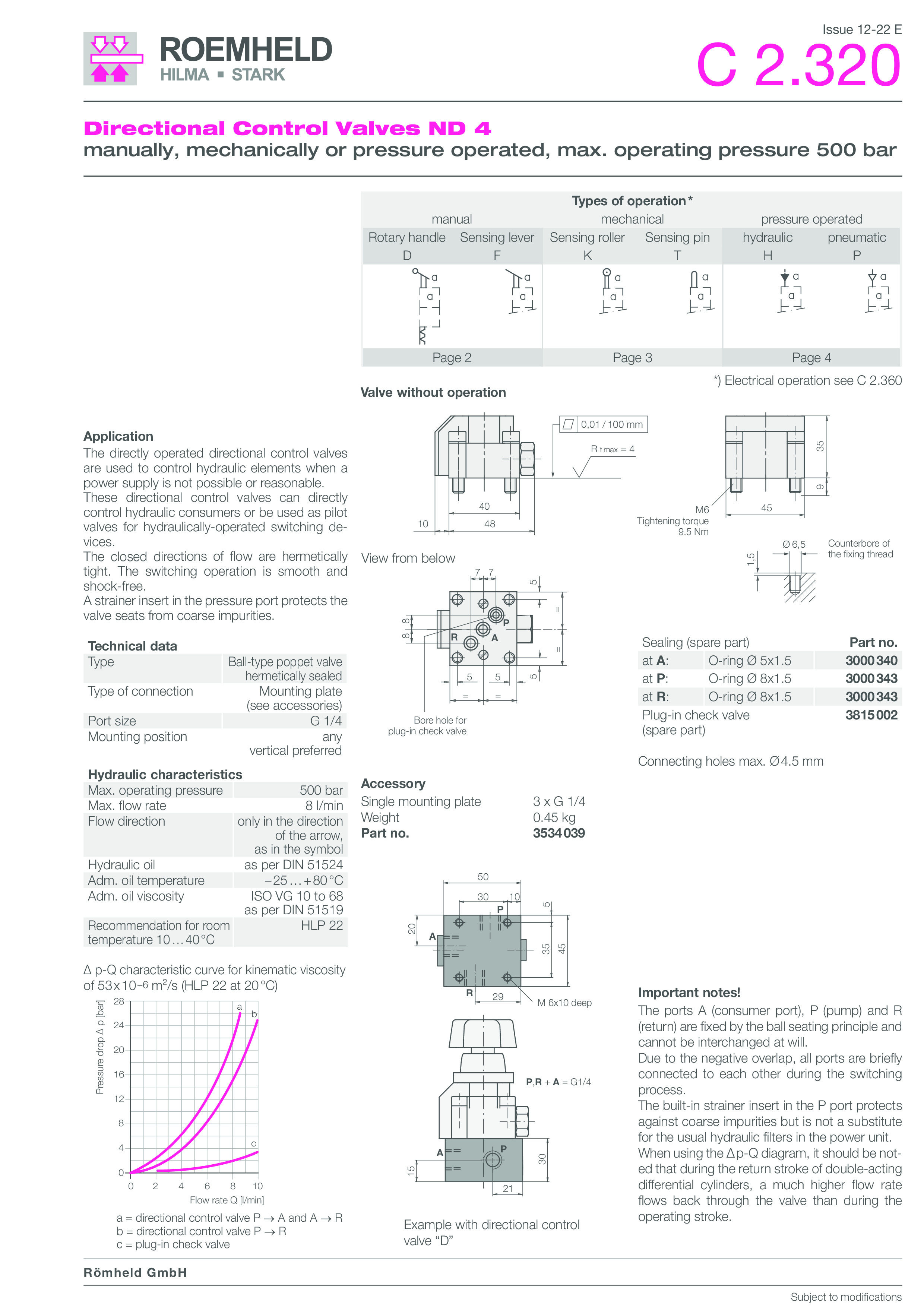

Manually Operated Directional Control Valves ND 4 - ROEMHELD C 2.320
- 2/2 directional control valve without check valve - Part No: 2321-302
- 3/2 directional control valve without check valve - Part No: 2321-201
- 3/2 directional control valve with built-in check valve - Part No: 2321-300
General data
- Type: Poppet valve
- Type of connection: Subplate mounted
- Port size: G 1/4
- Weight: 0.4 kg
Hydraulic data
- Adm. operating pressure: 0-500 bar
- Adm. flow rate: 8 l/min
- Direction of flow: Only in direction of arrow as in symbol
- Hydraulic oil: HLP 22
Operating specification
- Manually operated
- Angle of rotation: 90º
- Operating torque: 0.63 Nm
Accessories
Mounting plate - Part No: 3534-039
