M-.SEW 10 Series 1x
On/off directional seat valves with solenoid actuation M-.SEW 10 2/2, 3/2 and 4/2 direct operated
- Size 10
- Component series 1X
- Maximum operating pressure 420 bar
- Maximum flow 40 l/min
Description
Downloads

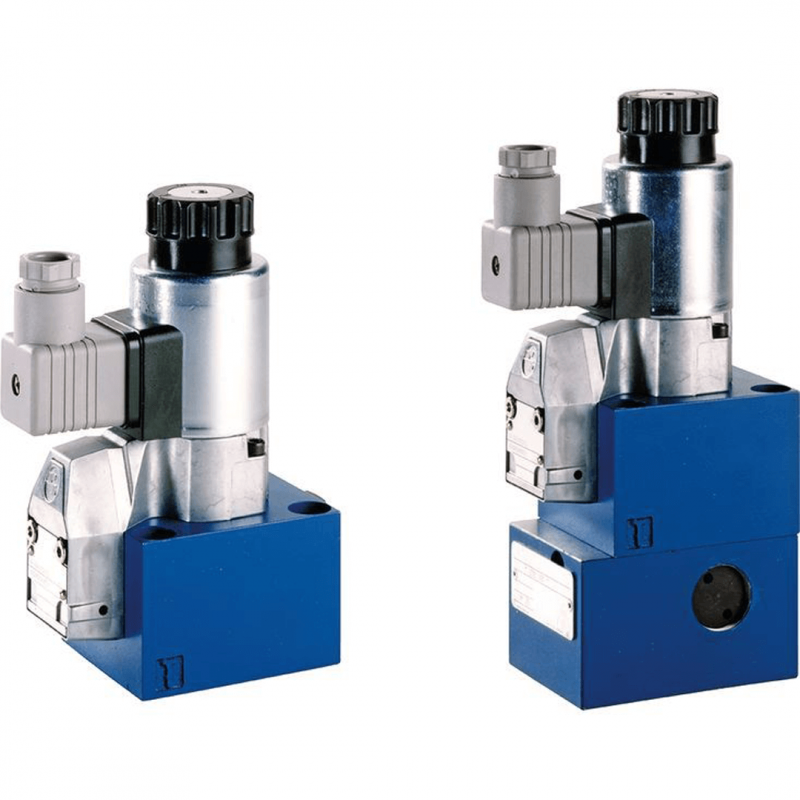

Bosch Rexroth On/off Directional Seat Valves with Solenoid Actuation Type M-.SEW 10
- Size 10
- Component series 1X
- Maximum operating pressure 420 bar
- Maximum flow 40 l/min
Features:
- 3/2 or 4/2-way version
- For intended use in potentially explosive atmosphere
- Porting pattern according to ISO 4401-05-04-0-05
- Blocked port is tight
- Safe switching also with longer standstill periods under pressure
- Air-gap DC and AC solenoids
- Solenoid coil is rotatable by 90°
- Electrical connection with individual connection and cable gland
- With concealed manual override, optional
