4WS(E)2E Size 16 Series 2x

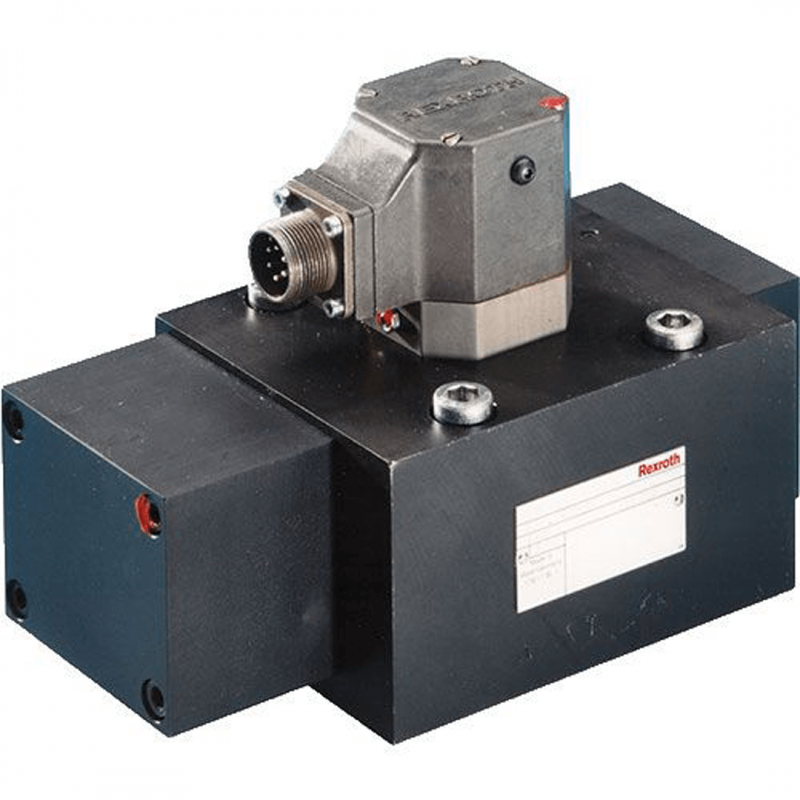

Bosch Rexroth Directional Servo-valves in 4-way Variant 4WS(E)2E. 16

• Component series 2X
• Size 16
• Maximum operating pressure 210/315 bar
• Maximum flow 320 l/min
• For subplate mounting
• Explosion-proof versions also available

Features:

• Valve for closed loop position, force and speed control
• Two stage servo valve with mechanical or mechanical and electrical feedback
• 1st stage as an orifice-flapper plate amplifier
• For subplate mounting, porting pattern to DIN 24 340 form A16 with port X,  subplates to catalogue sheet RE 45 054 (separate order)
• Dry torque motor, no contamination of the solenoid gap by the pressure fluid
• Can also be used as a 3-way version
• Wear-free spool return element
• Three control variations
