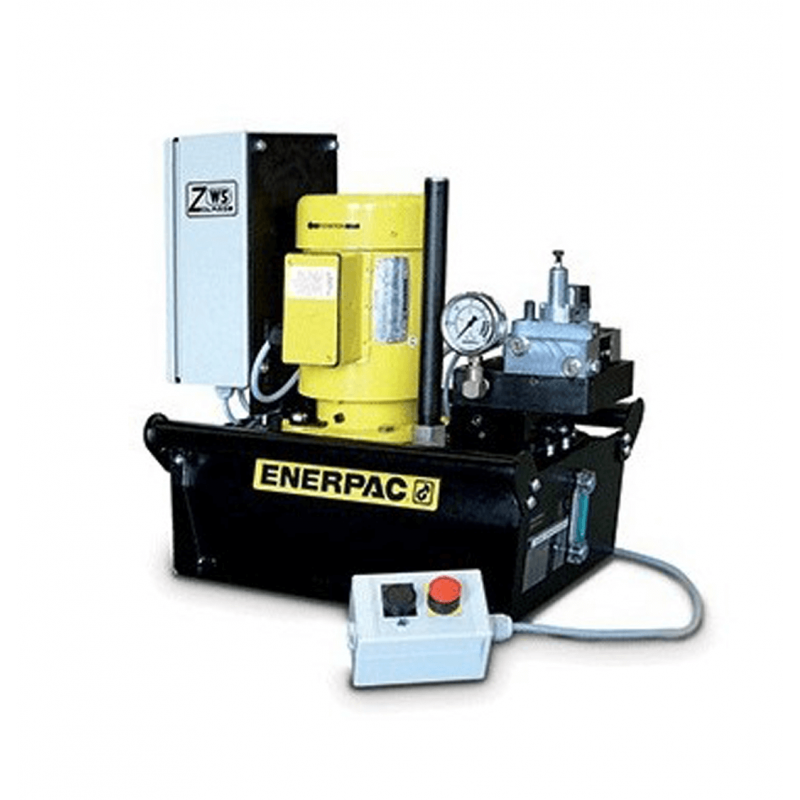

Enerpac ZW5-Series Electric Driven Workholding Pumps
- Flow: 1,64 l/min
- Pressure: 100 - 350 bar
- Motor: 1,1 kW
- Reservoir: 4 - 40 litres
These advanced workholding pumps, operating at maximum 350 bar hydraulic pressure, are highly suitable for production tooling applications – offering the optimum in terms of compact size for required oil flow and pressure rating and customization to your specific needs
Features:
- Enerpac electric driven workholding pumps can be customized to your needs
- Various models including electric controls and isolating valves
- Stackable to 8 VP-series valve stations high
- Adjustable relief valve
- Glycerine dampened pressure gauge G-2517L on pumps with VP-series valves
- 230/400 Volt - 50Hz - 1,1 kW motor, IP54 class protection
- Single stage pump; oil flow 1,64 l/min at 350 bar
- Pressure range 100 -350 bar
- 50 % continuous operation at 350 bar
