Enerpac SP-Series 50 ton hydraulic punch

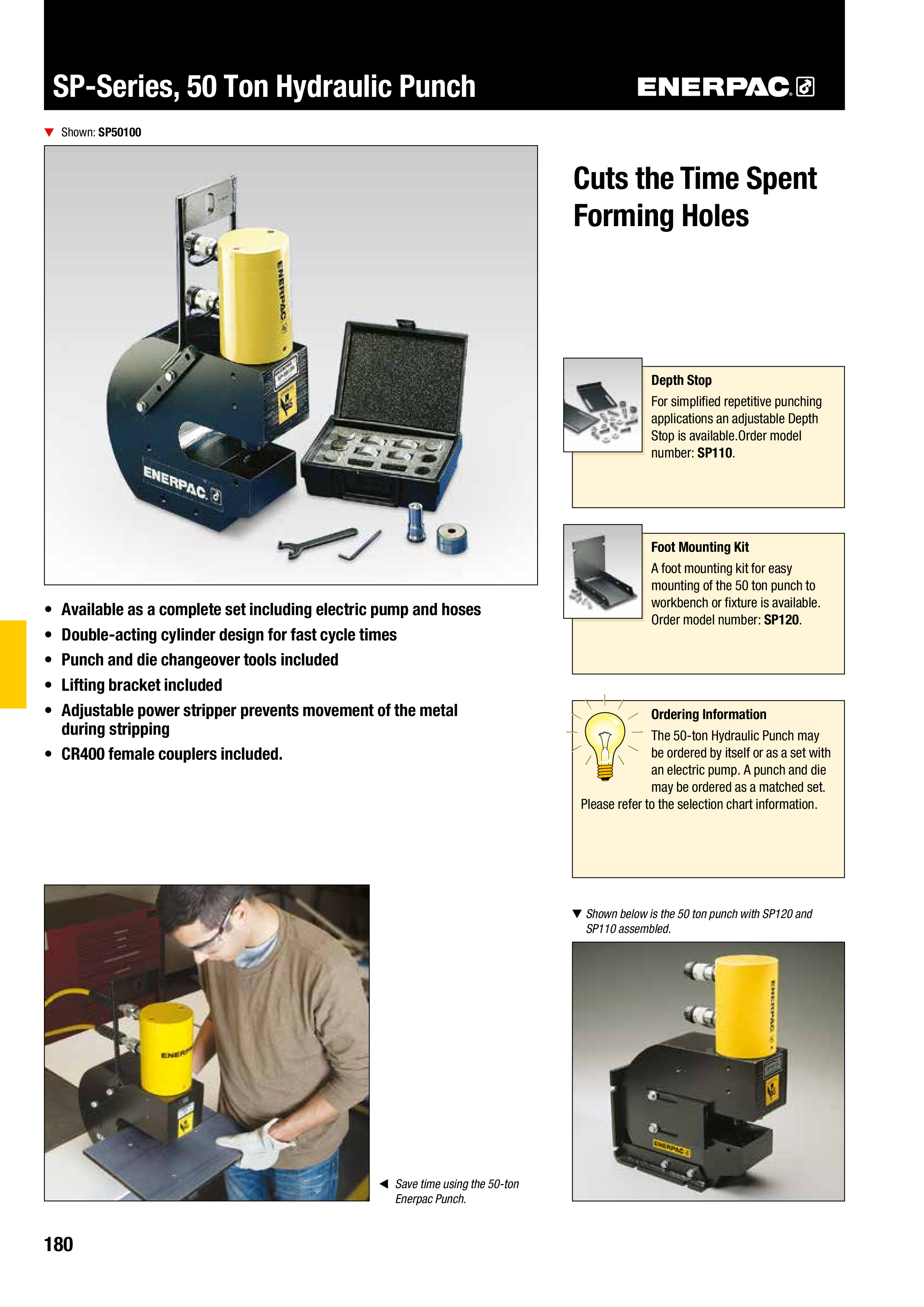

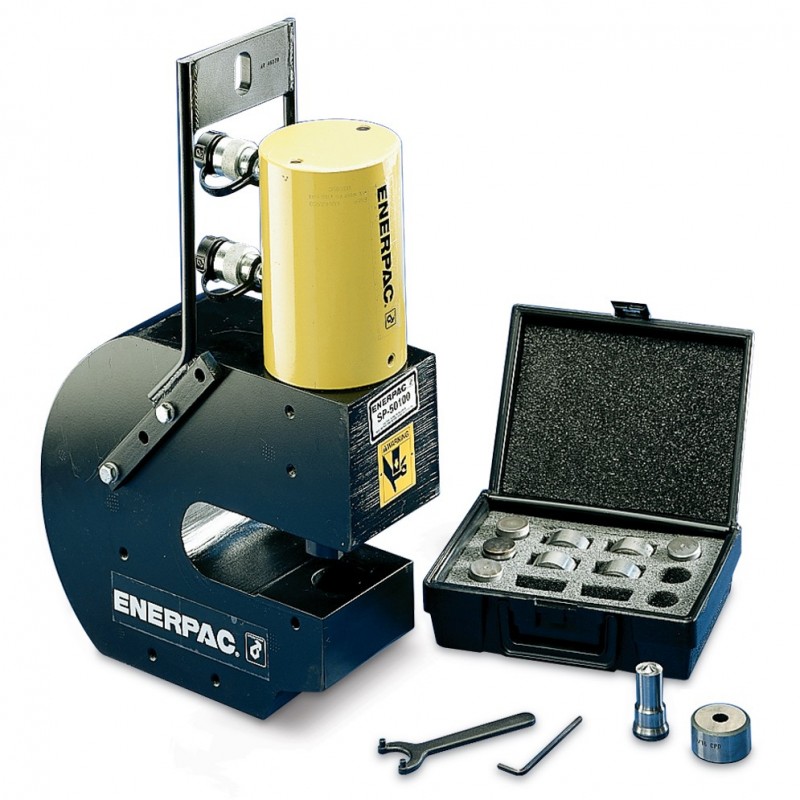

Enerpac SP-Series 50 ton Hydraulic Punch

SP-Series 50 ton hydraulic punch may be ordered by itself or as a set with an electric pump and hoses. A punch and die may be ordered as a matched set

  • Capacity: 50 ton (490 kN)
  • Hole Sizes: 13,5 - 26,2 mm
  • Max. Pressure: 700 bar

Description
Downloads

Enerpac SP-Series 50 ton Hydraulic Punch

  • Capacity: 50 ton (490 kN)
  • Hole Sizes: 13,5 - 26,2 mm
  • Max. Pressure: 700 bar

Features:

  • For simplified repetitive punching applications an adjustable Depth Stop is available
  • Adjustable power stripper prevents movement of the metal during stripping
  • Includes lifting bracket
  • A foot mounting kit for easy mounting of the 50 ton punch to workbench or fixture is available
  • Double-acting cylinder design for fast cycle times
  • Includes punch and die changeover tools
  • CR-400 female coupler included (CR-400 couplers fit all HC-Series hoses)
  • The 50-ton Hydraulic Punch may be ordered by itself or as a set with an electric pump and hoses. A punch and die may be ordered as a matched set
  • The SP-Series 50 ton hydraulic punch is an arbour style punch using a 50 ton (10,000 PSI) hydraulic cylinder to perform punching. To operate the cylinder a hydraulic pump, with a 4-way valve is required
