Enerpac STN-Series Single-Acting Hydraulic Nut Splitter Sets
Single-acting hydraulic nut cutter and hand pump for splitting and removing a stuck nut.
- 10 to 20-ton cutting force
- Hexagon Nut Range (mm): 19 to 41
- Bolt Range (mm): M12 to M27
- Not to be used on square nuts
Products
Downloads
Description
| Part Number | Material Number | Capacity (ton) | Bolt and Hexagon Nut Range | Price | Add to Parts List |
|---|---|---|---|---|---|
| STN1924H | 10 ton | Bolt M12 - M16 mm - Hex Nut 19 - 24 mm | £2,750.00 £3,300.00 Inc. VAT |
|
|
| STN2432H | 15 ton | Bolt M16 - M22 mm - Hex Nut 24 - 32 mm | £3,135.00 £3,762.00 Inc. VAT |
|
|
| STN3241H | 20 ton | Bolt M22 - M27 mm - Hex Nut 32 - 41 mm | £3,647.00 £4,376.40 Inc. VAT |
|

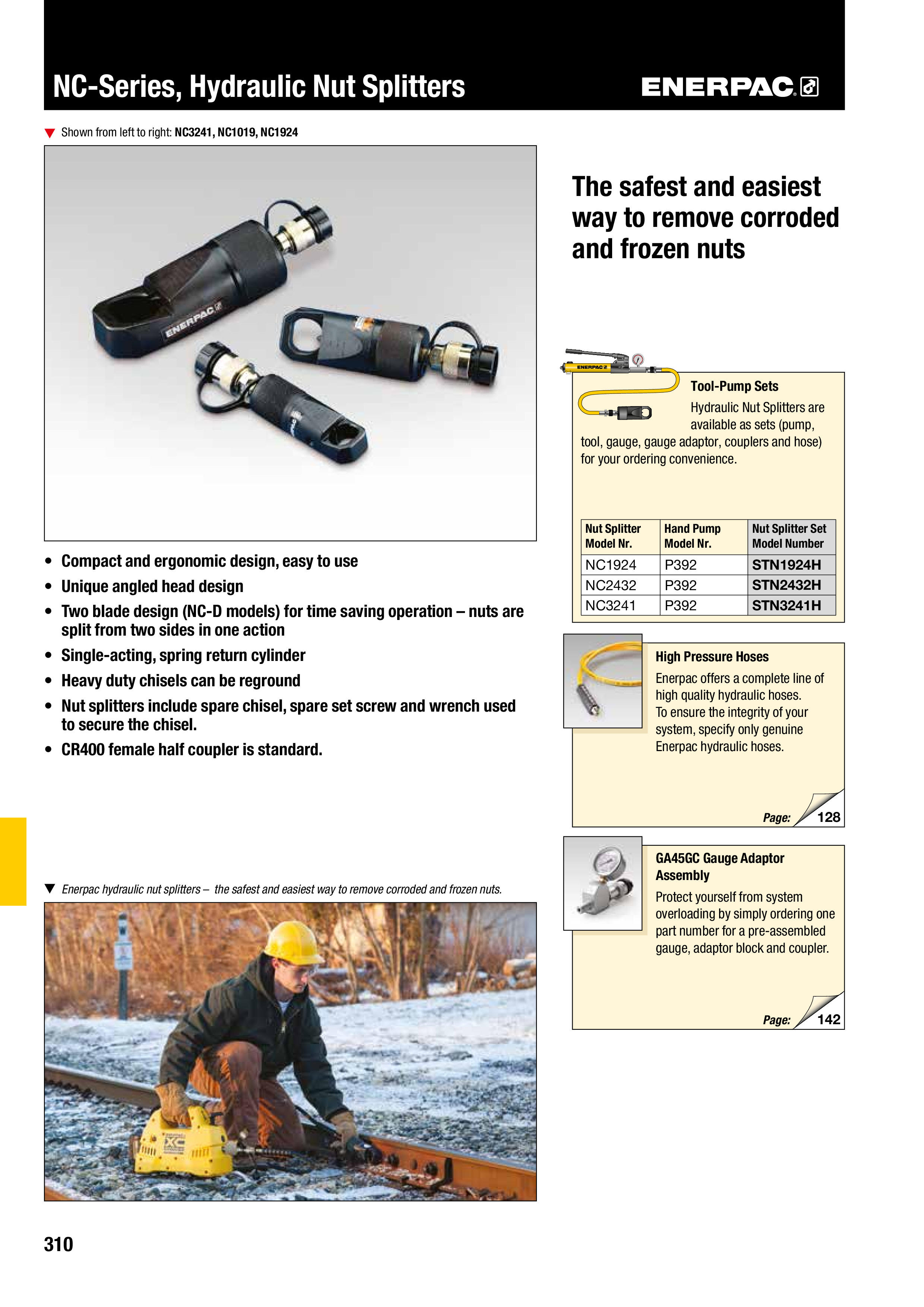

Enerpac Single-Acting Hydraulic Nut Splitter Sets
- NC- series single-acting hydraulic nut cutter
- P-392 hydraulic hand pump
- HC-7206 high-pressure hydraulic hose
- GP-10S pressure gauge
- GA-2 gauge adapter
Features:
- Single-acting hydraulic nut cutter and hand pump for splitting and removing a stuck nut
- Angled cutter head for flush fit over the nut
- Two speeds for pumping efficiency and optimal flow
- 10 to 20-ton cutting force
- Hexagon Nut Range (mm): 19 to 41
- Bolt Range (mm): M12 to M27
- Not to be used on square nuts
The Enerpac STN-series bolting tool pump set includes an Enerpac NC-series single-acting hydraulic nut cutter and an Enerpac P-392 hydraulic hand pump and is suitable for splitting and removing a stuck nut from the end of a bolt. The nut cutter contains a single-acting hydraulic cylinder a HC-7206 high-pressure hydraulic hose is also included along with a GP-10s pressure gauge and a GA-2 gauge adaptor. The cutter head is angled for a flush fit. The cutting blade is made of steel for strength and can be re-sharpened.
