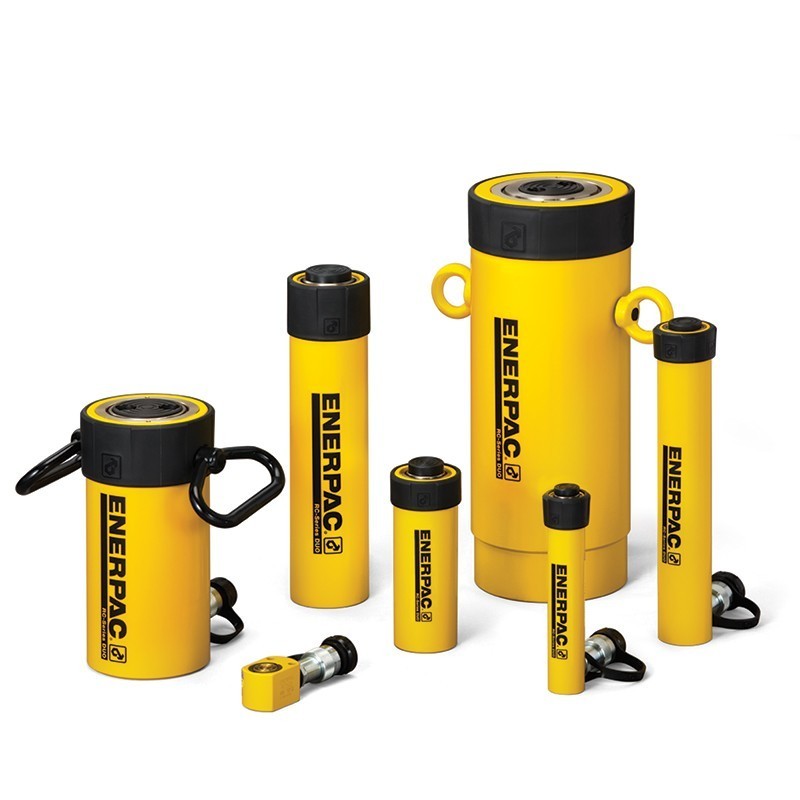

Enerpac RC-Series Single-Acting Cylinders

Enerpac RC-Series Single-Acting Cylinders

Enerpac RC-Series DUO single acting hydraulic cylinders set the industry standard for general purpose cylinders

  • Max Operating Pressure: 700 bar
  • Cylinder Capacity (ton): 5 to 95
  • Stroke (mm): 16 to 362

5 ton
10 ton
15 ton
25 ton
30 ton
50 ton
75 ton
95 ton
Downloads
Description
Part Number Material Number Cylinder Capacity Cylinder Stroke Price Add to Parts List
RC-50 RC-50 5 ton 16 mm £369.00
£442.80 Inc. VAT
RC-51 RC-51 5 ton 25 mm £415.00
£498.00 Inc. VAT
RC-53 RC-53 5 ton 76 mm £460.00
£552.00 Inc. VAT
RC-55 RC-55 5 ton 127 mm £513.00
£615.60 Inc. VAT
RC-57 RC-57 5 ton 177 mm £570.00
£684.00 Inc. VAT
RC-59 RC-59 5 ton 232 mm £631.00
£757.20 Inc. VAT
Part Number Material Number Cylinder Capacity Cylinder Stroke Price Add to Parts List
RC-102 RC-102 10 ton 54 mm £482.00
£578.40 Inc. VAT
RC-104 RC-104 10 ton 105 mm £532.00
£638.40 Inc. VAT
RC-106 RC-106 10 ton 156 mm £590.00
£708.00 Inc. VAT
RC-108 RC-108 10 ton 203 mm £660.00
£792.00 Inc. VAT
RC-1010 RC-1010 10 ton 257 mm £731.00
£877.20 Inc. VAT
RC-1012 RC-1012 10 ton 304 mm £815.00
£978.00 Inc. VAT
RC-1014 RC-1014 10 ton 356 mm £905.00
£1,086.00 Inc. VAT
RC-101 RC-101 10 ton 26 mm £437.00
£524.40 Inc. VAT
Part Number Material Number Cylinder Capacity Cylinder Stroke Price Add to Parts List
RC-152 RC-152 15 ton 51 mm £663.00
£795.60 Inc. VAT
RC-154 RC-154 15 ton 101 mm £735.00
£882.00 Inc. VAT
RC-156 RC-156 15 ton 152 mm £811.00
£973.20 Inc. VAT
RC-158 RC-158 15 ton 203 mm £913.00
£1,095.60 Inc. VAT
RC-1510 RC-1510 15 ton 254 mm £1,008.00
£1,209.60 Inc. VAT
RC-1512 RC-1512 15 ton 305 mm £1,128.00
£1,353.60 Inc. VAT
RC-1514 RC-1514 15 ton 356 mm £1,250.00
£1,500.00 Inc. VAT
RC-151 RC-151 15 ton 25 mm £599.00
£718.80 Inc. VAT
Part Number Material Number Cylinder Capacity Cylinder Stroke Price Add to Parts List
RC-252 RC-252 25 ton 50 mm £790.00
£948.00 Inc. VAT
RC-254 RC-254 25 ton 102 mm £875.00
£1,050.00 Inc. VAT
RC-256 RC-256 25 ton 158 mm £970.00
£1,164.00 Inc. VAT
RC-258 RC-258 25 ton 210 mm £1,103.00
£1,323.60 Inc. VAT
RC-2510 RC-2510 25 ton 261 mm £1,239.00
£1,486.80 Inc. VAT
RC-2512 RC-2512 25 ton 311 mm £1,393.00
£1,671.60 Inc. VAT
RC-2514 RC-2514 25 ton 362 mm £1,552.00
£1,862.40 Inc. VAT
RC-251 RC-251 25 ton 26 mm £715.00
£858.00 Inc. VAT
Part Number Material Number Cylinder Capacity Cylinder Stroke Price Add to Parts List
RC-308 RC-308 30 ton 209 mm £1,831.00
£2,197.20 Inc. VAT
Part Number Material Number Cylinder Capacity Cylinder Stroke Price Add to Parts List
RC-502 RC-502 50 ton 51 mm £1,463.00
£1,755.60 Inc. VAT
RC-504 RC-504 50 ton 101 mm £1,628.00
£1,953.60 Inc. VAT
RC-506 RC-506 50 ton 159 mm £1,808.00
£2,169.60 Inc. VAT
RC-5013 RC-5013 50 ton 337 mm £2,470.00
£2,964.00 Inc. VAT
Part Number Material Number Cylinder Capacity Cylinder Stroke Price Add to Parts List
RC-756 RC-756 75 ton 156 mm £3,057.00
£3,668.40 Inc. VAT
RC-7513 RC-7513 75 ton 333 mm £4,123.00
£4,947.60 Inc. VAT
Part Number Material Number Cylinder Capacity Cylinder Stroke Price Add to Parts List
RC-1006 RC-1006 95 ton 168 mm £3,708.00
£4,449.60 Inc. VAT
RC-10010 RC-10010 95 ton 260 mm £4,679.00
£5,614.80 Inc. VAT

Enerpac RC-Series Single-Acting General Purpose Cylinders

  • Max Operating Pressure: 700 bar
  • Cylinder Capacity (ton): 5 to 95
  • Stroke (mm): 16 to 362
  • Oil capacity (cm³): 10 to 3466
  • Cylinder effective area (cm²): 6,5 to 133,3
  • Collapsed height (mm): 41 to 449

RC-50 cylinder has a non removable grooved saddle and no collar thread

Gauges available to minimize the risk of overloading and ensure long, dependable service from your equipment

Features:

  • Enerpac RC Series single acting hydraulic cylinders set the industry standard for general purpose cylinders
  • Unique GR2 Bearing Design, reduces wear, extending life
  • Collar threads, plunger threads and base mounting holes enable easy fixturing (on most models)
  • Designed for use in all positions
  • High strength alloy steel for durability
  • Redesigned cylinder thread protector for ease of use
  • Heavy-duty, pretensioned spring improves retraction speed
  • Baked enamel finish for increased corrosion resistance
  • CR-400 coupler and dust cap included on all models
  • Plunger wiper reduces contamination, extending cylinder life

Use only Enerpac oil with the cylinder. The use of any other oil may invalidate your warranty
