Carr Lane Quick-Acting Knobs
Carr Lane Quick-Acting Knobs Diagram
of
Carr Lane Quick-Acting Knobs
Carr Lane Quick-Acting Knobs Diagram

Carr Lane Quick-Acting Knobs

Quick-acting four-prong knob that slides in and out of clamping position, ideal when the knob must be completely removed for loading

  • Metric and Imperial sizes
  • Thread - 1/4-20 - 5/8-11 OR M6 - M16
Print page

Products
Downloads
Description
Part Number Material Number Metric or Imperial External Diameter Thread Price Add to Parts List
CLM-8-QAK CLM-8-QAK Metric 1-1/2 M8 £14.84
£17.81 Inc. VAT
CLM-10-QAK CLM-10-QAK Metric 2 M10 £15.84
£19.01 Inc. VAT
CLM-12-QAK CLM-12-QAK Metric 2-1/2 M12 £16.55
£19.86 Inc. VAT
CLM-16-QAK CLM-16-QAK Metric 3 M16 £17.09
£20.51 Inc. VAT
CLM-6-QAK CLM-6-QAK Metric 1-1/8 M6 £11.54
£13.85 Inc. VAT
CL-1-QAK CL-1-QAK Imperial 1-1/8 1/4-20 £7.88
£9.46 Inc. VAT
CL-2-QAK CL-2-QAK Imperial 1-1/2 5/16-18 £9.22
£11.06 Inc. VAT
CL-3-QAK CL-3-QAK Imperial 2 3/8-16 £10.62
£12.74 Inc. VAT
CL-4-QAK CL-4-QAK Imperial 2-1/2 1/2-13 £12.94
£15.53 Inc. VAT
CL-5-QAK CL-5-QAK Imperial 3 5/8-11 £16.30
£19.56 Inc. VAT
Knobs

Carr Lane Quick-Acting Knobs

  • Metric and Imperial sizes
  • Thread - 1/4-20 - 5/8-11 OR M6 - M16

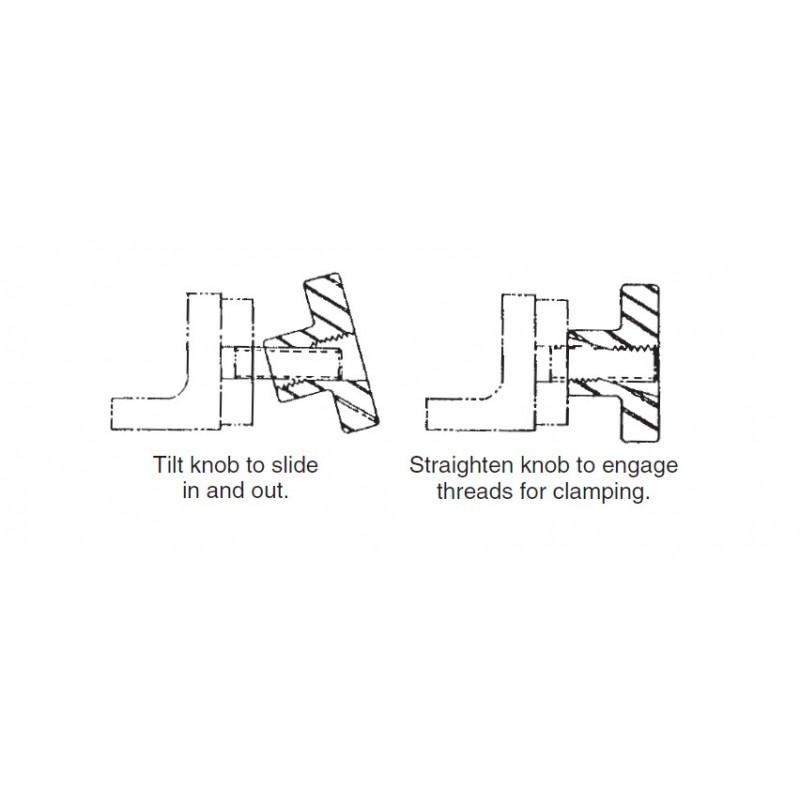

Quick-acting four-prong knob that slides in and out of clamping position, ideal when the knob must be completely removed for loading. Tilt knob to slide in, then straighten to engage threads and tighten. To remove, loosen knob, then tilt to slide out. Four-prong design provides a firm grip for applications requiring quick tightening and high torque.

Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors.
If you can’t find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959

Quantity Unit discount You Save
