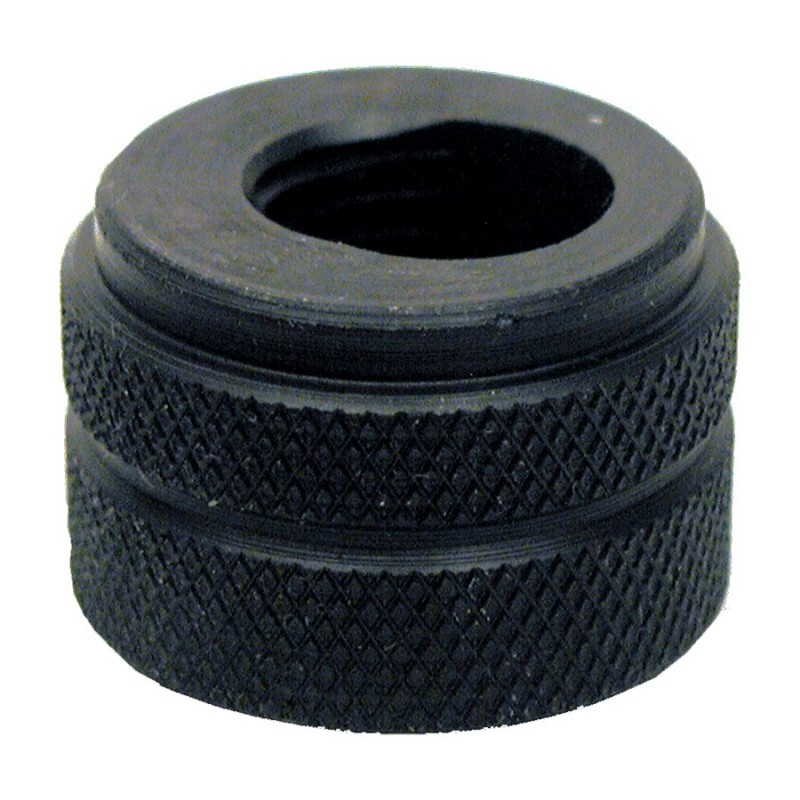

This fast-acting knob slides in and out of the clamping position, perfect for situations where complete removal of the knob is necessary for loading. To engage, tilt the knob to slide it in, then straighten to align the threads and tighten. For removal, simply loosen the knob and tilt it to slide out. Available in tapped-hole sizes ranging from #10-24 to 1/2-13 (M5 to M12 metric).
| Part Number | Material Number | Metric or Imperial | External Diameter | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CLM-8-QKK | Metric | 7/8 | M8 | £11.52 £13.82 Inc. VAT |
|
|
| CLM-10-QKK | Metric | 1 | M10 | £12.98 £15.58 Inc. VAT |
|
|
| CLM-12-QKK | Metric | 1-1/8 | M12 | On Enquiry | ||
| CLM-5-QKK | Metric | 5/8 | M5 | £9.06 £10.87 Inc. VAT |
|
|
| CLM-6-QKK | Metric | 3/4 | M6 | £10.03 £12.04 Inc. VAT |
|
|
| CL-1-QKK | Imperial | 5/8 | #10-24 | £6.59 £7.91 Inc. VAT |
|
|
| CL-2-QKK | Imperial | 3/4 | 1/4-20 | £6.70 £8.04 Inc. VAT |
|
|
| CL-5-QKK | Imperial | 1-1/8 | 1/2-3 | £14.36 £17.23 Inc. VAT |
|
|
| CL-3-QKK | Imperial | 7/8 | 5/16-18 | £8.56 £10.27 Inc. VAT |
|
|
| CL-4-QKK | Imperial | 1 | 3/8-16 | £13.30 £15.96 Inc. VAT |
|
Quick Acting Knob that slides in and out of clamping position, ideal when the knob must be completely removed for loading.
Operation Instructions

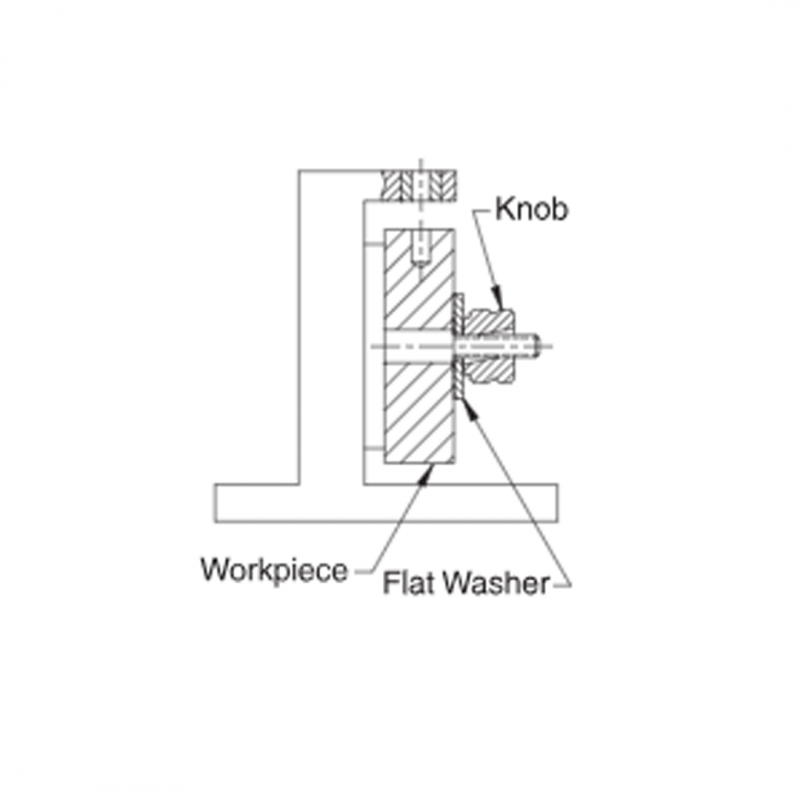

Tilt knob to slide in, then straighten to engage threads and tighten. To remove, loosen knob, then tilt to slide out, for full strength, use a stud that extendes slightly beyond the knob to engage all threads.
| Quantity | Unit discount | You Save |
|---|
Quick-acting four-prong knob that slides in and out of clamping position, ideal when the knob must be completely removed for loading
Adjustable-torque thumb screws exert positive and repeatable force. When turned clockwise, the knob disengages and rotates freely once the desired torque is reach. Turning it anti-clockwise locks the knob for a secure retraction. These can be used as a controlled-torque nut or as a thumb screw by fitting a custom screw in the tapped hole. Available in both metric and imperial sizes.
