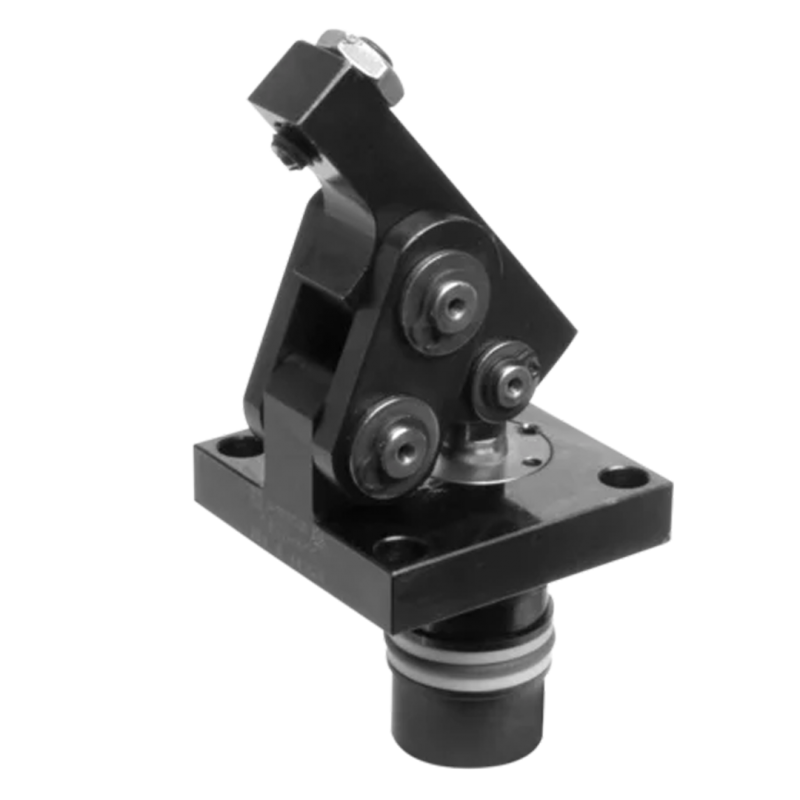

Mini Hinge Clamps with Metallic Wiper Edge

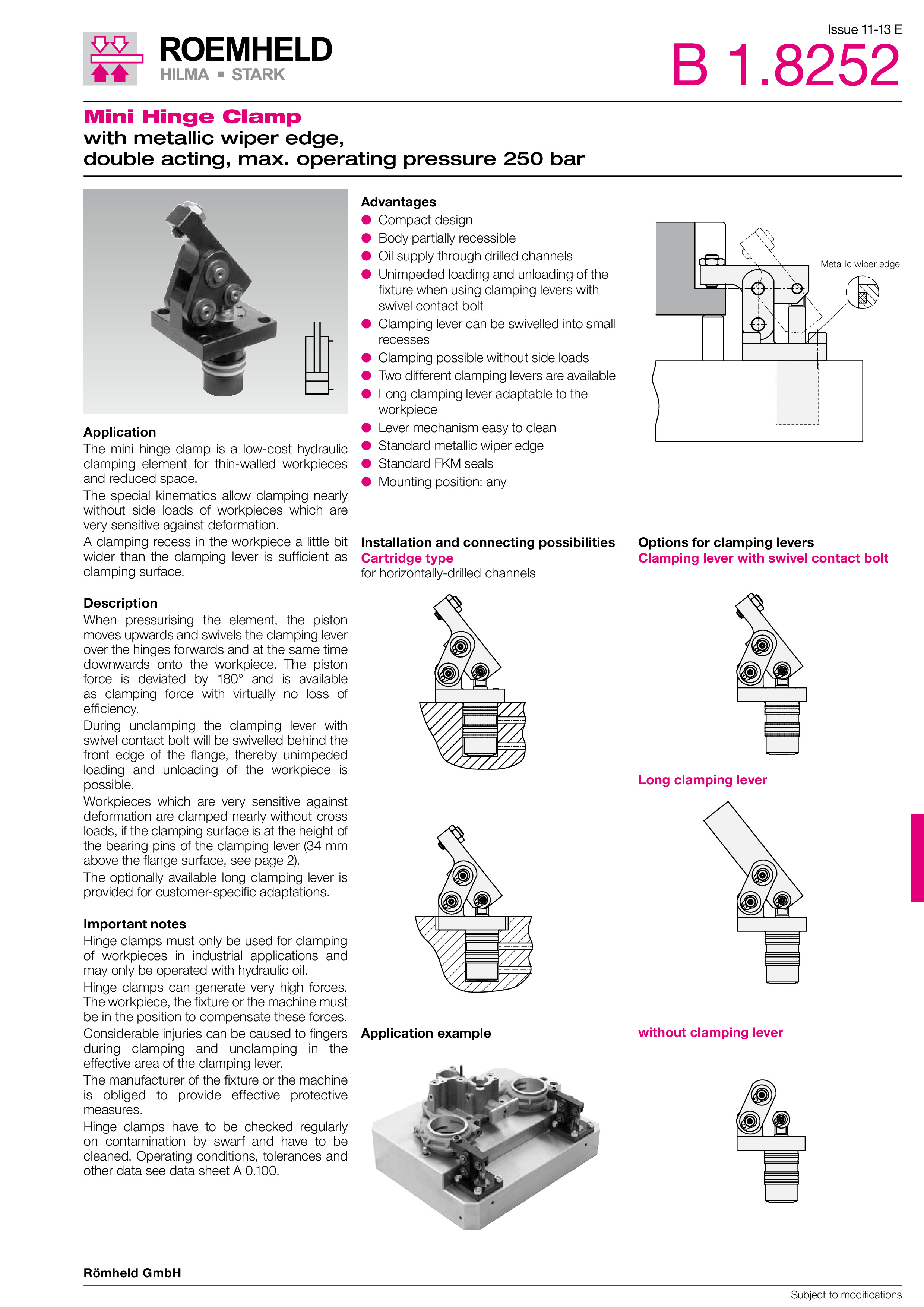

Mini Hinge Clamps with Metallic Wiper Edge - ROEMHELD B1.8252

• Max. operating pressure 250 bar
• Max. clamping force: 2.2 kN
• Usable clamping stroke: 3 mm
• Adm. flow rate 8 .. 15 cm³/s

Advantages:

• Compact design
• Body partially recessible
• Oil supply through drilled channels
• Unimpeded loading and unloading of the fixture when using clamping levers with swivel contact bolt
• Clamping lever can be swivelled into small recesses
• Clamping possible without side loads
• Two different clamping levers are available
• Long clamping lever adaptable to the workpiece
• Lever mechanism easy to clean
• Standard metallic wiper edge
• Standard FKM seals
• Mounting position: any

Description:

When pressurising the element, the piston moves upwards and swivels the clamping lever over the hinges forwards and at the same time downwards onto the workpiece. The piston force is deviated by 180° and is available as clamping force with virtually no loss of efficiency. During unclamping the clamping lever with swivel contact bolt will be swivelled behind the front edge of the flange, thereby unimpeded loading and unloading of the workpiece is possible. Workpieces which are very sensitive against deformation are clamped nearly without cross loads, if the clamping surface is at the height of the bearing pins of the clamping lever (34 mm above the flange surface). The optionally available long clamping lever is provided for customer-specific adaptations.

Application:

The mini hinge clamp is a low-cost hydraulic clamping element for thin-walled workpieces and reduced space. The special kinematics allow clamping nearly without side loads of workpieces which are very sensitive against deformation. A clamping recess in the workpiece a little bit wider than the clamping lever is sufficient as clamping surface.
