4WRPFH Size 6 Series 3x

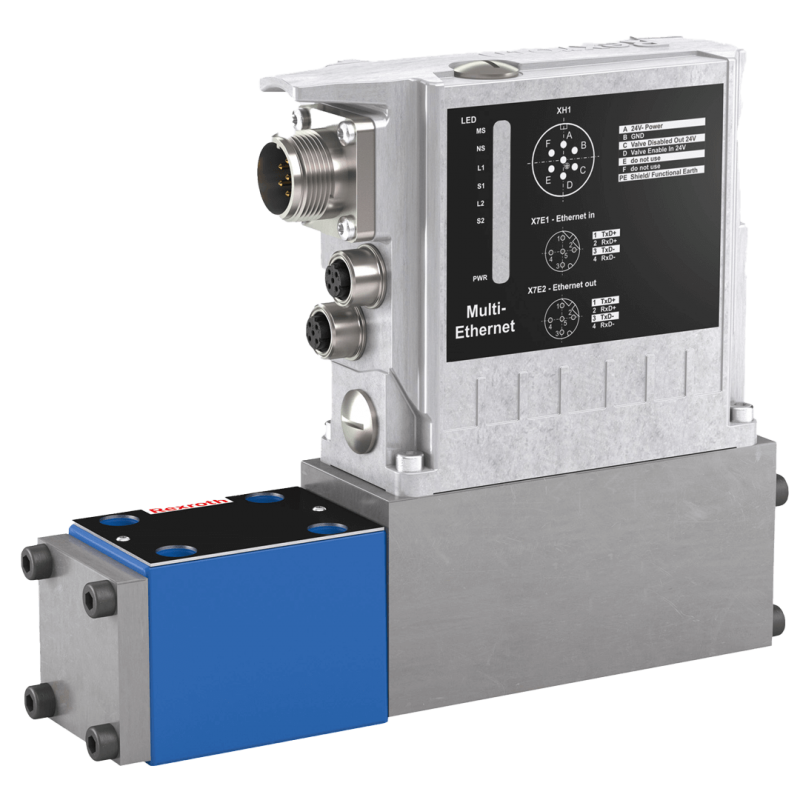

Directional control valve, direct operated, with integrated field bus (IFB-Multi-Ethernet) Type 4WRPFH
- Size 6
- Component series 3X
- Maximum operating pressure 350 bar
- Rated flow 40 l/min (∆p = 35 bar)
Description
Downloads

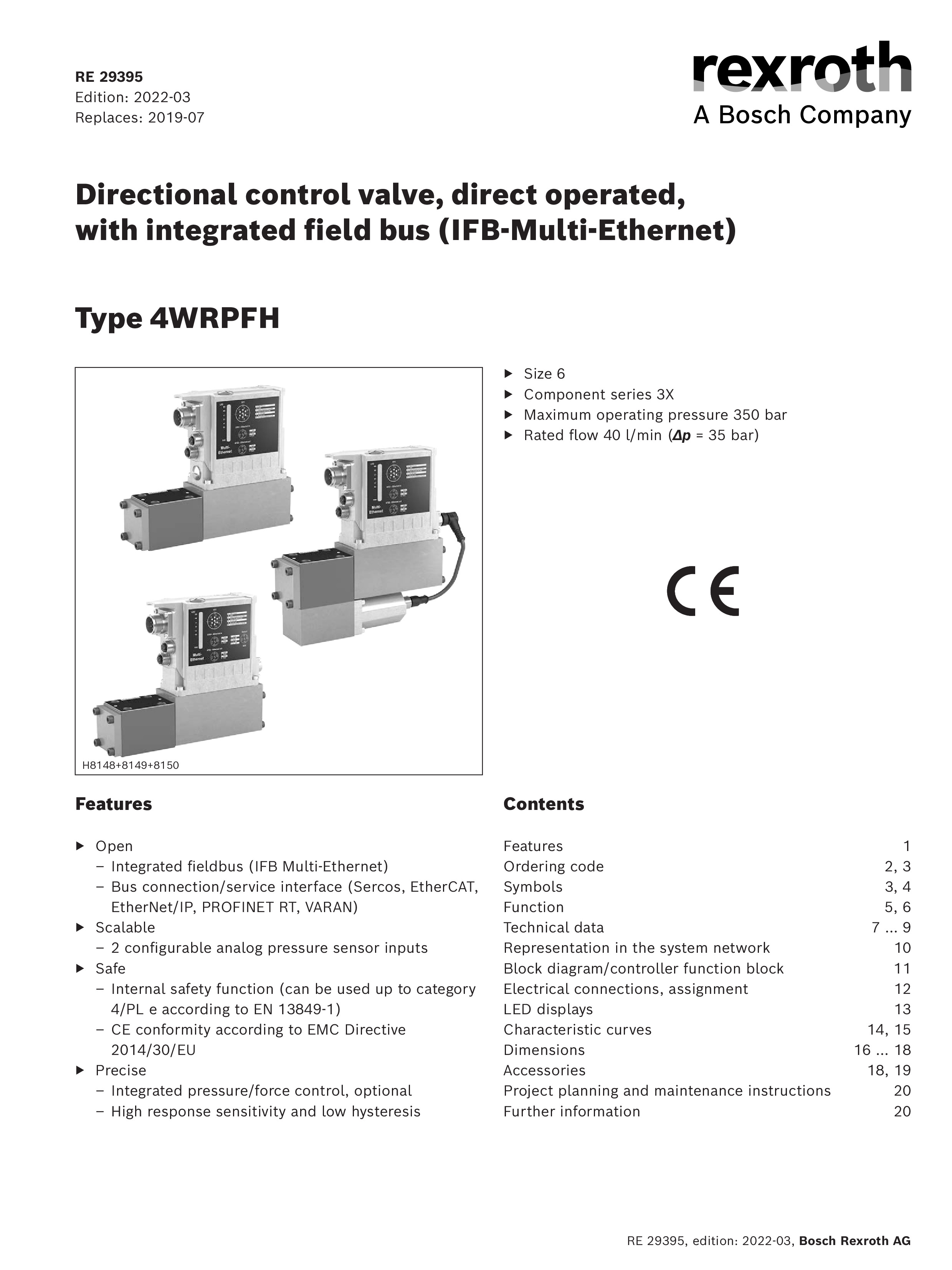

Bosch Rexroth Directional control valve, direct operated, Type 4WRPFH
- Size 6
- Component series 3X
- Maximum operating pressure 350 bar
- Rated flow 40 l/min (∆p = 35 bar)
Features:
- Open –Integrated fieldbus (IFB Multi-Ethernet) –Bus connection/service interface (Sercos, EtherCAT, EtherNet/IP, PROFINET RT, VARAN)
- Scalable –2 configurable analog pressure sensor inputs
- Safe –Internal safety function (can be used up to category 4/PL e according to EN 13849-1) -CE conformity according to EMC Directive 2014/30/EU
- Precise –Integrated pressure/force control, optional –High response sensitivity and low hysteresis
