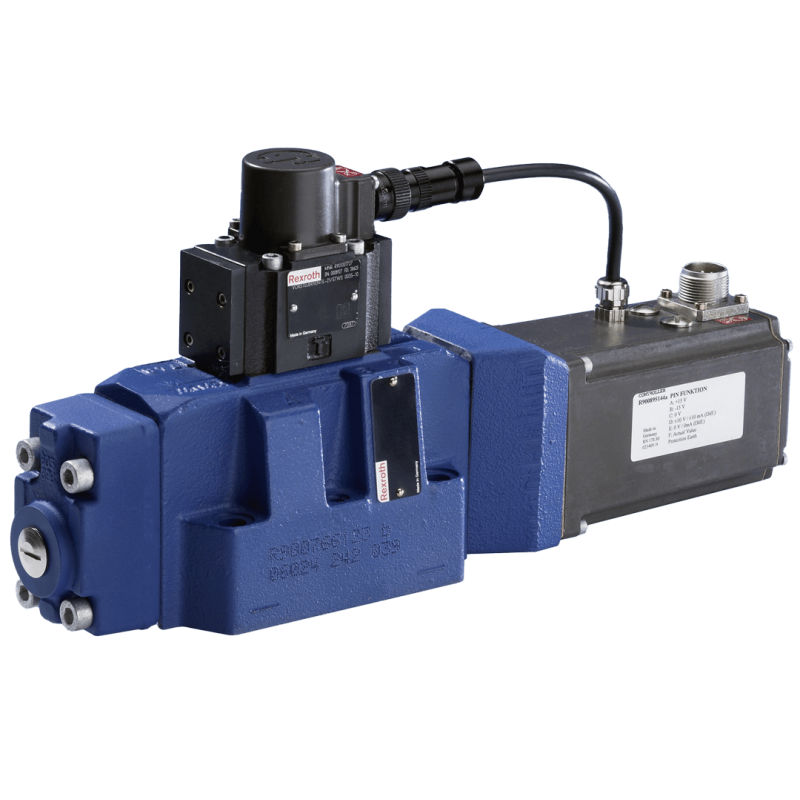

Directional control valves, pilot-operated,(OBE) Type 4WRDE

4WRDE Size 10 to 35 Series 5x

Directional control valves, pilot-operated, with electrical position feedback and integrated electronics (OBE) Type 4WRDE

  • Size 10 … 35
  • Component series 5X
  • Maximum operating pressure 350 bar
  • Maximum flow 3000 l/min

Description

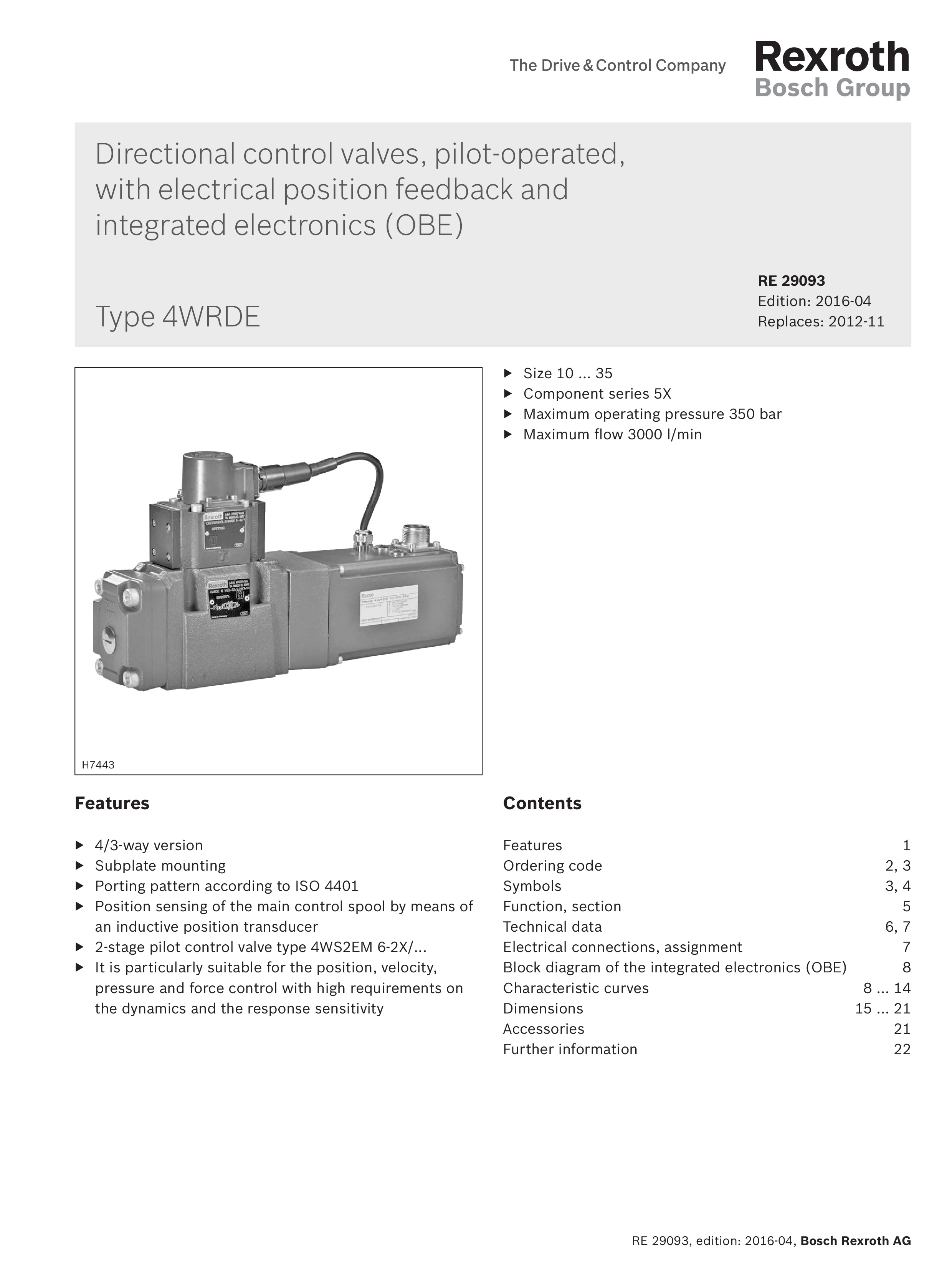

Downloads

Directional control valves, pilot-operated,(OBE) Type 4WRDE

  • Size 10 … 35
  • Component series 5X
  • Maximum operating pressure 350 bar
  • Maximum flow 3000 l/min

Features:

  • 4/3-way version
  • Subplate mounting
  • Porting pattern according to ISO 4401
  • Position sensing of the main control spool by means of an inductive position transducer
  • 2-stage pilot control valve type 4WS2EM 6-2X/...
  • It is particularly suitable for the position, velocity, pressure and force control with high requirements on the dynamics and the response sensitivity
