4WS2EM …XD Size 10 Series 5x

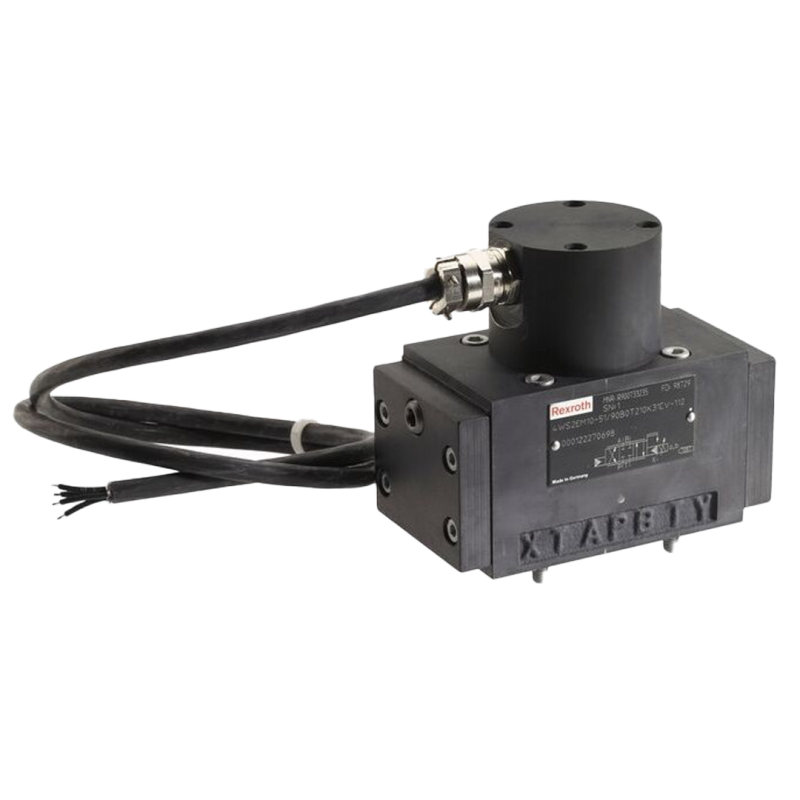

Directional servo valve with mechanical position feedback Type 4WS2EM …XD
- Size 10
- Component series 5X
- Maximum operating pressure 315 bar
- Maximum flow 180 l/min
Description
Downloads
Bosch Rexroth Directional servo valve Type 4WS2EM …XD
- Size 10
- Component series 5X
- Maximum operating pressure 315 bar
- Maximum flow 180 l/min
Features:
- 4 or 3-way version
- For intended use in potentially explosive atmosphere
- Valve for position, force, pressure or velocity control
- Subplate mounting
- Porting pattern according to 4401-05-05-0-05
- Dry control motor, no contamination of the solenoid gaps by the hydraulic fluid
- Wear-free control spool return element
- Pressure chambers at the control sleeve with gap seal, therefore no wear of seal ring
