CytroPac

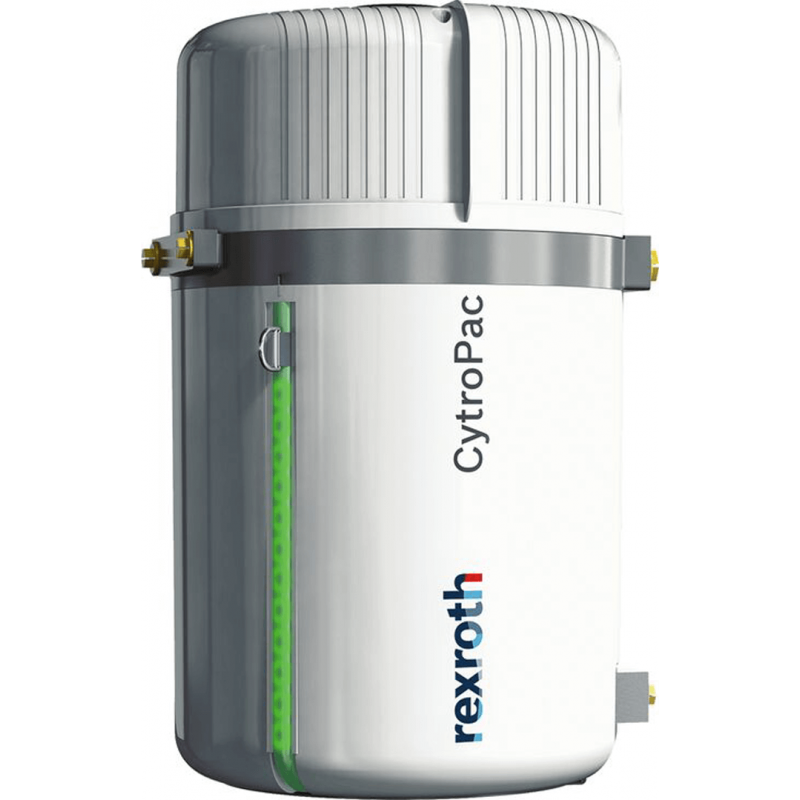

Bosch Rexroth Hydraulic power unit Type CytroPac

The new CytroPac power unit provides maximum power in the smallest space with everything you need for fast installation – including an economical Sytronix drive, completely wired frequency converter and Industry 4.0 compatibility. With powerful 4 KW and pressure of 240 bar in 50 percent less installation space.

Advantages

Simplify your design

·         No additional cooling device necessary. Simple wiring reduces the space required in the control cabinet, in best case cabinet free

·         Reduced tank size due to optimized design for efficient degassing

·         The space-saving heat pipe system ensures optimal cooling

Streamline your installation

·         Integrated frequency converter with Multi-Ethernet connectivity (e.g. Sercos, EtherCAT, EtherNet/IP, PROFINET RT, VARAN)

·         Plug & produce: Preassembled and tested

·         Parameter setting via web interface or Ethernet

·         Personnel needs no deep insight into the physics of hydraulics

Minimize your Downtime:

·         Integrated sensors collect operation data of components and fluid

·         Supply operation data for intelligent analysis of the data and to detect wear before it causes a standstill

·         Higher uptime due to condition monitoring and predictive maintenance

Maximize Your Productivity:

·         Variable speed pump saves up to 80 per cent of energy

·         The frequency converter additionally serves as a sensor node and transmits all measured data to the machine control in real time

·         Low-noise operation

·         Access via Ethernet or web interface to change parameters

·         Operated via machine controls, no hydraulics know-how necessary

Component series 1X

Tank Size 20 L

Maximum operating pressure 240 bar

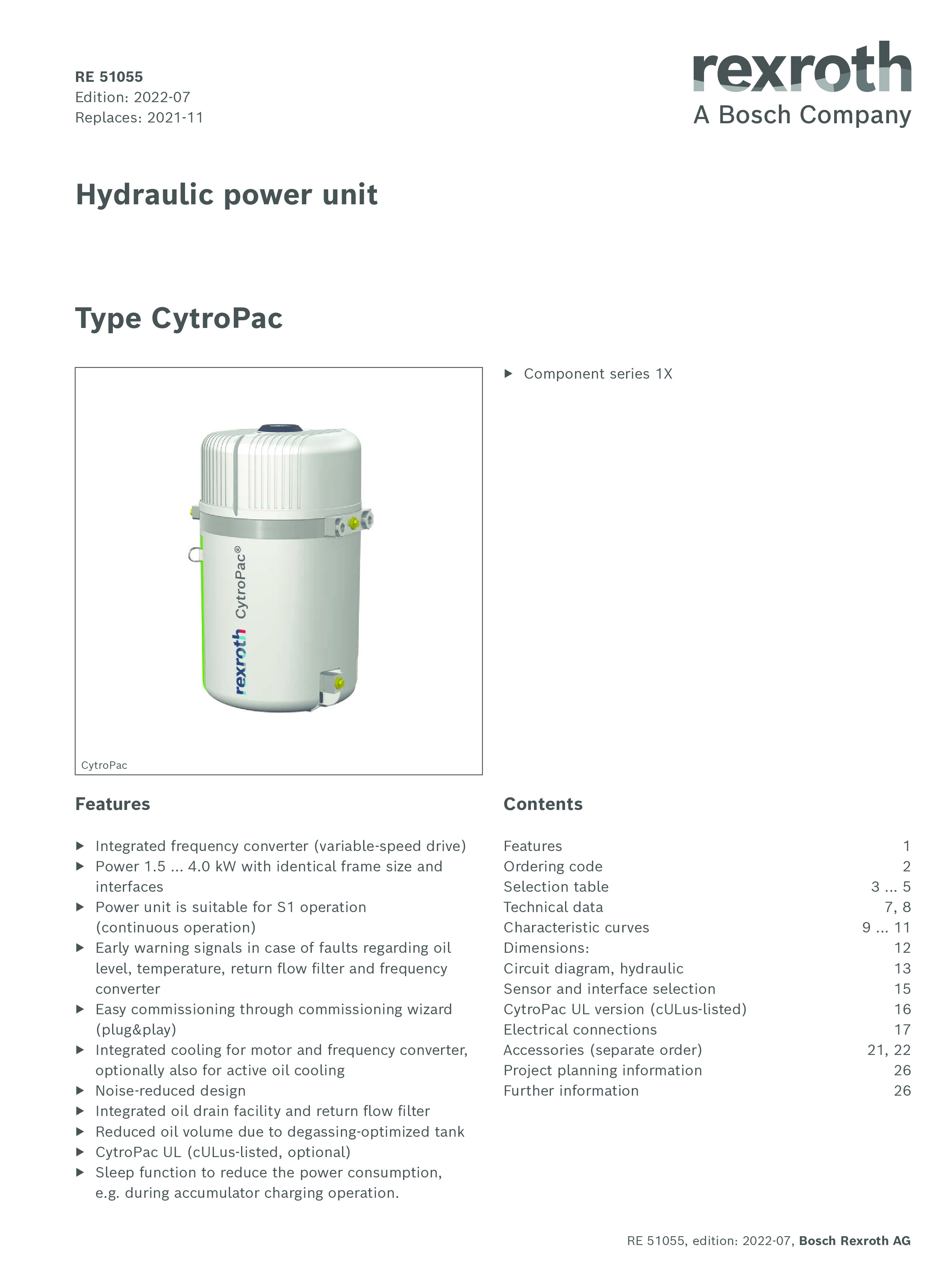

Features:

• Integrated frequency converter (variable-speed drive)
• Power 1.5 … 4.0 kW with identical frame size and interfaces
• Power unit is suitable for S1 operation (continuous operation)
• Early warning signals in case of faults regarding oil level, temperature, return flow filter and frequency converter
• Easy commissioning through commissioning wizard (plug&play)
• Integrated cooling for motor and frequency converter, optionally also for active oil cooling
• Noise-reduced design
• Integrated oil drain facility and return flow filter
• Reduced oil volume due to degassing-optimized tank
• CytroPac UL (cULus-listed, optional)
• Sleep function to reduce the power consumption ,e.g. during accumulator charging operation.
