CytroBox

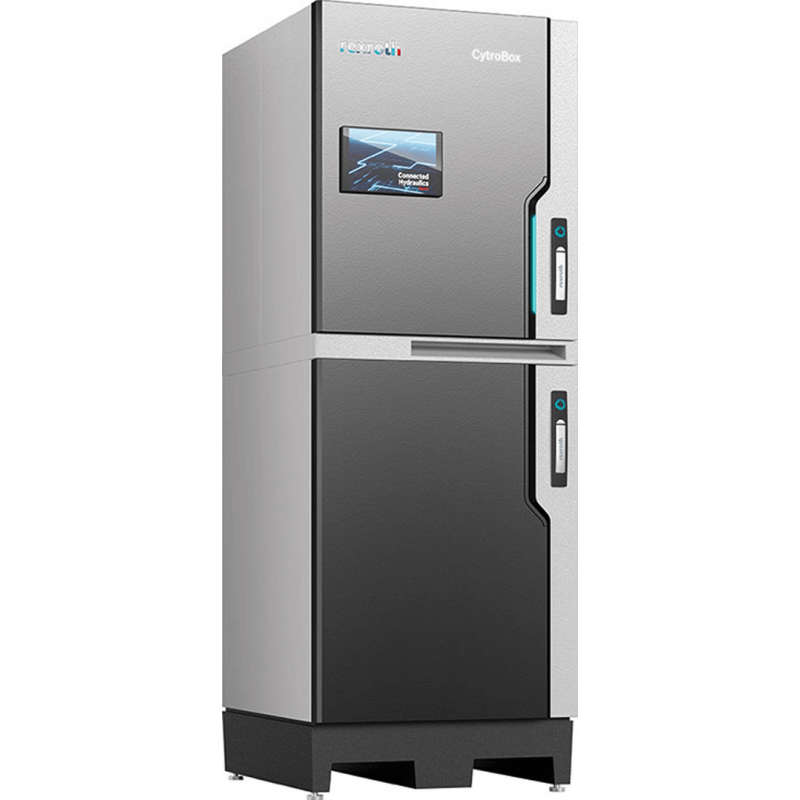

Hydraulic power unit CytroBox
The CytroBox – A Compact, energy-efficient, quit and connected hydraulic power unit that requires 50% less space, saves up to 80% of energy, reduces oil volume by 75% and reduces noise emissions by 10dB(A). The digital service CytroConnect makes the CytroBox a “Connected Product” using Cloud-based standardized applications provide the user with visualization and evaluation of system status on mobil devices.
CytroBox’s all-in-one power unit saves space in production lines, combining a small footprint with a compact design, which also includes the degassing and flow-optimized tank. Thanks to a CFD simulation, the oil volume is reduced by 75 percent from 600 litres to 150 litres. To reduce the size even more, its high-performance synchronous motors have a length of only 400mm and a diameter of 200mm, making them up to 90 percent smaller than comparable asynchronous motors. Further advantages of the synchronous technology includes higher dynamics and increased energy density. In addition to the compact components, the cooling lines held to a minimum thanks to the innovative water-cooling concept.
- Component series 1X
- Maximum operating pressure 315 bar
- Maximum flow 160 l/min
Bosch Rexroth Hydraulic power unit CytroBox
The CytroBox – A Compact, energy-efficient, quit and connected hydraulic power unit that requires 50% less space, saves up to 80% of energy, reduces oil volume by 75% and reduces noise emissions by 10dB(A). The digital service CytroConnect makes the CytroBox a “Connected Product” using Cloud-based standardized applications provide the user with visualization and evaluation of system status on mobil devices.
CytroBox’s all-in-one power unit saves space in production lines, combining a small footprint with a compact design, which also includes the degassing and flow-optimized tank. Thanks to a CFD simulation, the oil volume is reduced by 75 percent from 600 litres to 150 litres. To reduce the size even more, its high-performance synchronous motors have a length of only 400mm and a diameter of 200mm, making them up to 90 percent smaller than comparable asynchronous motors. Further advantages of the synchronous technology includes higher dynamics and increased energy density. In addition to the compact components, the cooling lines held to a minimum thanks to the innovative water-cooling concept.
- Component series 1X
- Maximum operating pressure 315 bar
- Maximum flow 160 l/min
Features:
- Integrated drive controller
- Power up to 30 kW with identical frame size and interfaces
- Servo drive
- Reduced hydraulic fluid volume due to degassing-optimized tank
- Optional set-up of different hydraulic controls
- STO (Safe Torque Off)
- Acoustically optimized
- Easy setup via wizard (plug & play)
