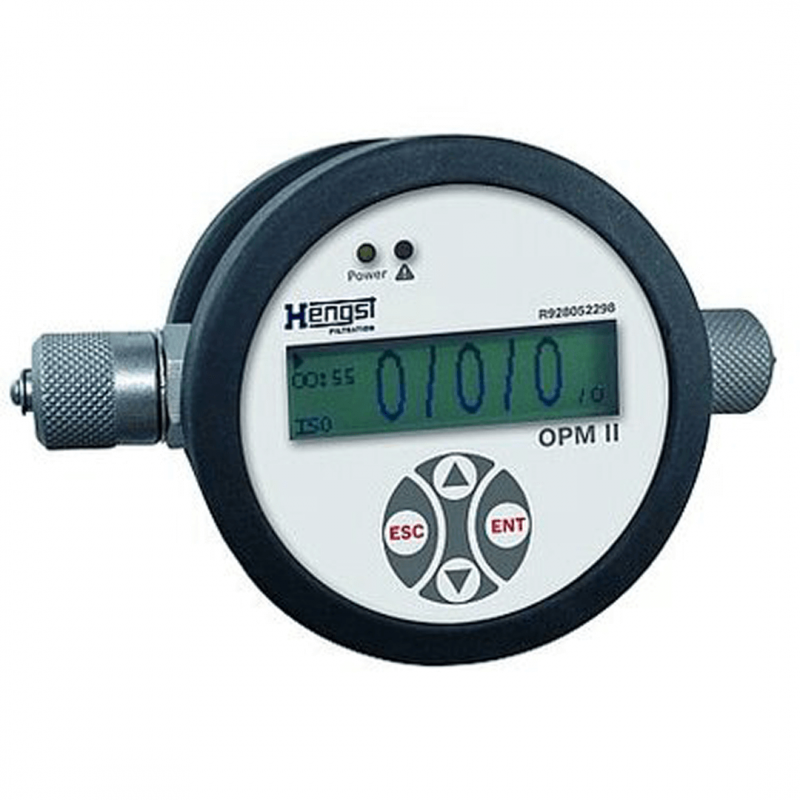

Hengst Online particle monitor OPM II
Particle monitors measure the particle contamination of the hydraulic fluid directly in the system. This allows changes and trends in oil cleanliness to be detected quickly.
Hengst - Formerly Bosch Rexroth Filtration
Description

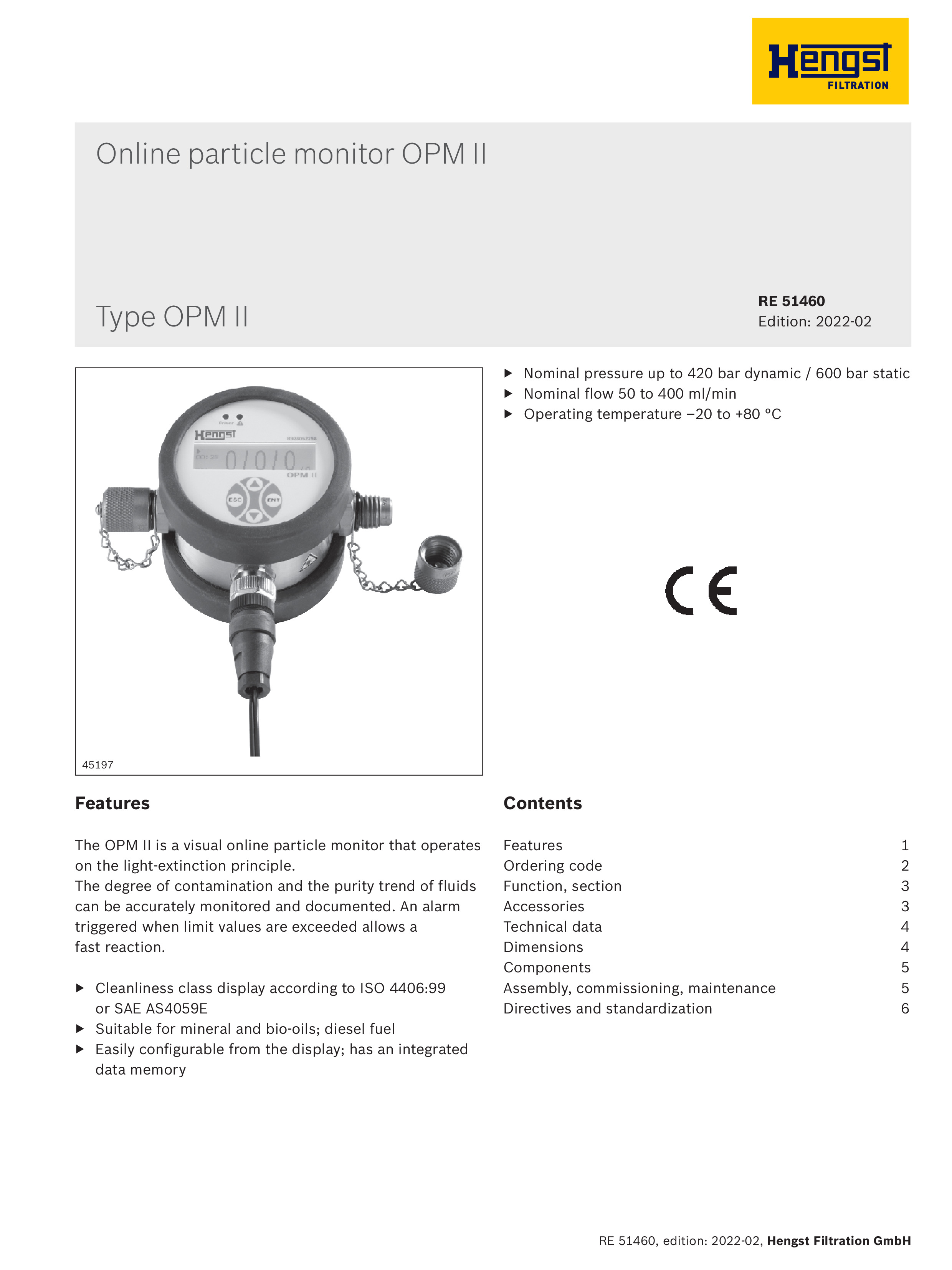

Downloads
Hengst Online particle monitor OPM II
- Nominal pressure up to 420 bar dynamic / 600 bar static
- Nominal flow 50 to 400 ml/min
- Operating temperature ‒20 to +80 °C
Features:
- The OPM II is a visual online particle monitor that operates on the light-extinction principle.
- The degree of contamination and the purity trend of fluids can be accurately monitored and documented. An alarm triggered when limit values are exceeded allows a fast reaction.
- Cleanliness class display according to ISO 4406:99 or SAE AS4059E
- Suitable for mineral and bio-oils; diesel fuel Easily configurable from the display; has an integrated data memory
