Lifting Modules Strong for High Demands

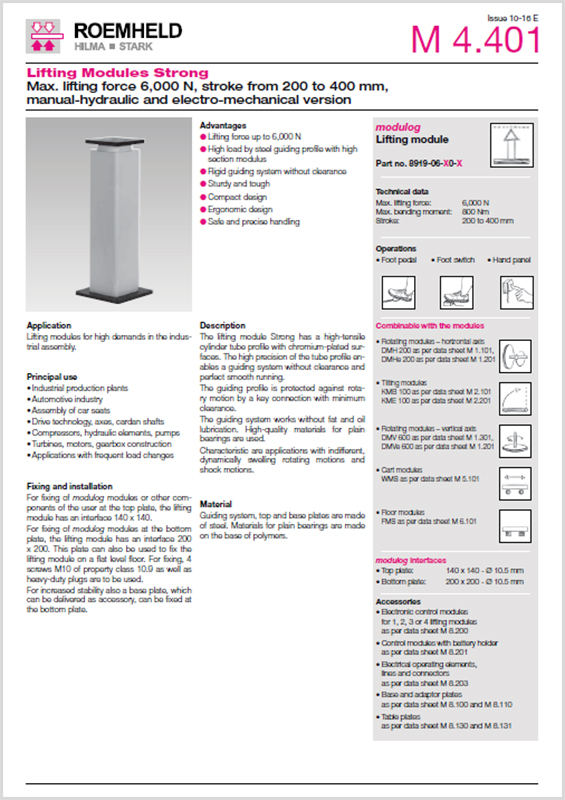

ROEMHELD M4.401 Lifting Modules for high demands in the industrial assembly
- Max. lifting force: 6,000 N
- Stroke from 200 to 400 mm
- Max. bending moment: 800 Nm
- Pump strokes per 100 mm: 10
- Lifting speed 5 - 7 mm/s
- Control voltage: 24 VDC
- Supply voltage: 230 VAC

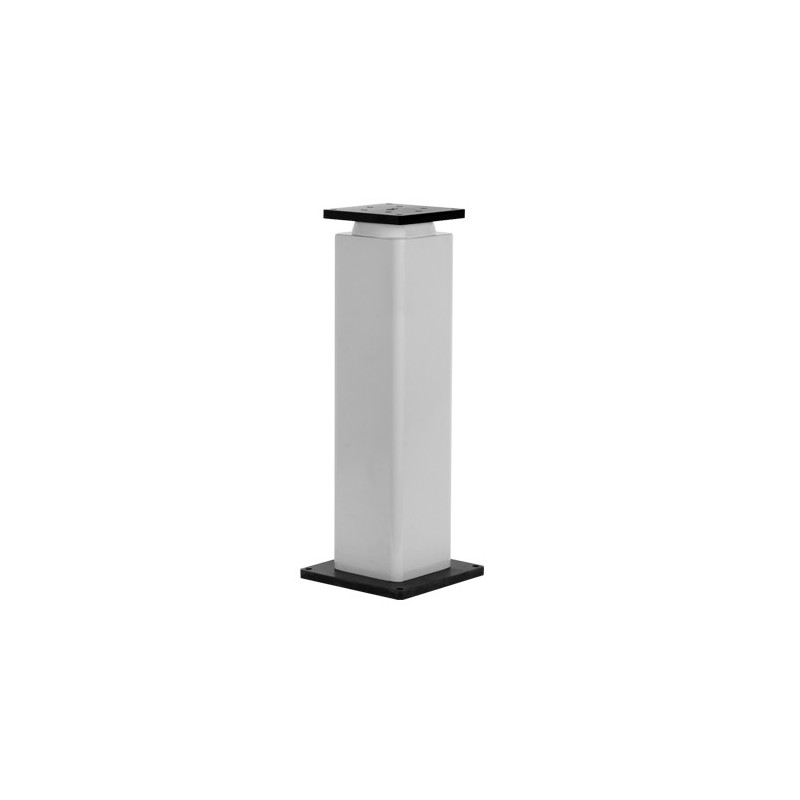

Lifting Module Strong for High Demands - ROEMHELD M4.401
- Max. lifting force: 6,000 N
- Stroke from 200 to 400 mm
- Max. bending moment: 800 Nm
- Pump strokes per 100 mm: 10
- Lifting speed 5 - 7 mm/s
- Control voltage: 24 VDC
- Supply voltage: 230 VAC
Advantages:
- High load by steel guiding profile with high section modulus
- Rigid guiding system without clearance
- Sturdy and tough
- Compact design
- Ergonomic design
- Safe and precise handling
- Operations: foot pedal, foot switch or hand panel
- Manual-hydraulic and electro-mechanical version
Application:
Lifting modules for high demands in the industrial assembly.
Principal use:
- Industrial production plants
- Automotive industry
- Assembly of car seats
- Drive technology, axes, cardan shafts
- Compressors, hydraulic elements, pumps
- Turbines, motors, gearbox construction
- Applications with frequent load changes
Description:
The lifting module Strong has a high-tensile cylinder tube profile with chromium-plated surfaces. The high precision of the tube profile enables a guiding system without clearance and perfect smooth running. The guiding profile is protected against rotary motion by a key connection with minimum clearance. The guiding system works without fat and oil lubrication. High-quality materials for plain bearings are used. Characteristic are applications with indifferent, dynamically swelling rotating motions and shock motions.
