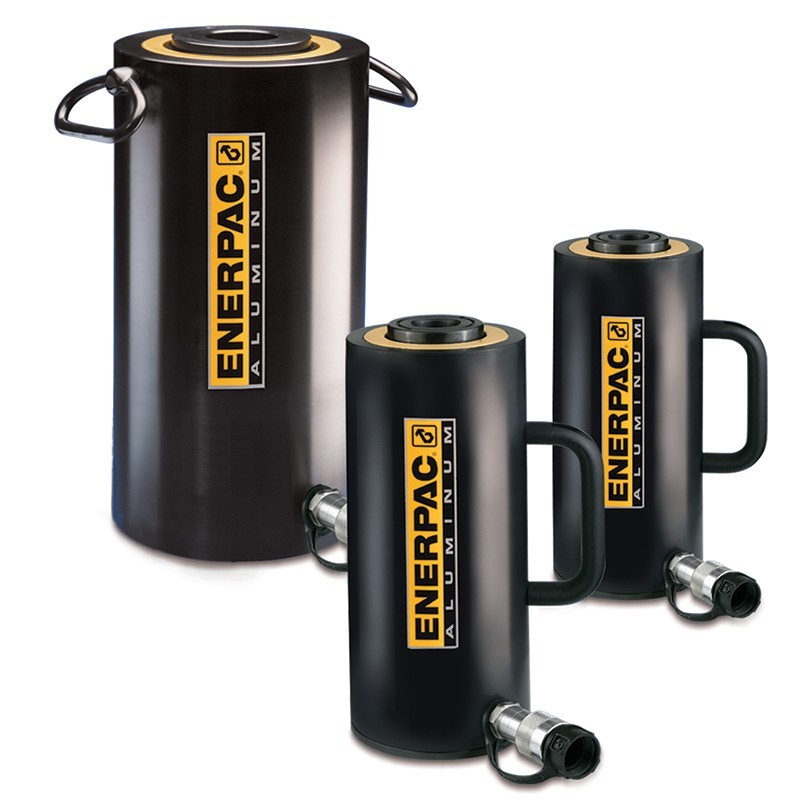

Enerpac RACH-Series Single-Acting Aluminium Hollow Plunger Cylinders

Enerpac RACH-Series hollow plunger design allows for both, pull and push forces providing lightweight, versatile solutions for tensioning and testing

Max Operating Pressure: 700 bar
Cylinder Capacity: 20 to 150 ton
Stroke: 50 to 250 mm

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

20 ton

30 ton

60 ton

100 ton

150 ton

Downloads

Description

Part Number	Cylinder Capacity	Cylinder Stroke	Price
RACH-204 RACH-204	20 ton	100 mm	£2,181.00 £2,617.20 Inc. VAT
RACH-206 RACH-206	20 ton	150 mm	£2,423.00 £2,907.60 Inc. VAT
RACH-208 RACH-208	20 ton	200 mm	£2,717.00 £3,260.40 Inc. VAT
RACH-202 RACH-202	20 ton	50 mm	£1,964.00 £2,356.80 Inc. VAT
RACH-2010 RACH-2010	20 ton	250 mm	£3,030.00 £3,636.00 Inc. VAT

Part Number	Cylinder Capacity	Cylinder Stroke	Price
RACH-304 RACH-304	30 ton	100 mm	£2,887.00 £3,464.40 Inc. VAT
RACH-306 RACH-306	30 ton	150 mm	£3,205.00 £3,846.00 Inc. VAT
RACH-308 RACH-308	30 ton	200 mm	£3,590.00 £4,308.00 Inc. VAT
RACH-3010 RACH-3010	30 ton	250 mm	£4,004.00 £4,804.80 Inc. VAT
RACH-302 RACH-302	30 ton	50 mm	£2,600.00 £3,120.00 Inc. VAT

Part Number	Cylinder Capacity	Cylinder Stroke	Price
RACH-6010 RACH-6010	60 ton	250 mm	£5,457.00 £6,548.40 Inc. VAT
RACH-604 RACH-604	60 ton	100 mm	£4,009.00 £4,810.80 Inc. VAT
RACH-606 RACH-606	60 ton	150 mm	£4,420.00 £5,304.00 Inc. VAT
RACH-602 RACH-602	60 ton	50 mm	£3,639.00 £4,366.80 Inc. VAT
RACH-608 RACH-608	60 ton	200 mm	£4,920.00 £5,904.00 Inc. VAT

Part Number	Cylinder Capacity	Cylinder Stroke	Price
RACH-1004 RACH-1004	100 ton	100 mm	£6,525.00 £7,830.00 Inc. VAT
RACH-1006 RACH-1006	100 ton	150 mm	£7,230.00 £8,676.00 Inc. VAT
RACH-1002 RACH-1002	100 ton	50 mm	£5,891.00 £7,069.20 Inc. VAT
RACH-1008 RACH-1008	100 ton	200 mm	£8,090.00 £9,708.00 Inc. VAT
RACH-10010 RACH-10010	100 ton	250 mm	£9,009.00 £10,810.80 Inc. VAT

Part Number	Cylinder Capacity	Cylinder Stroke	Price
RACH-1506 RACH-1506	150 ton	150 mm	£10,963.00 £13,155.60 Inc. VAT
RACH-1508 RACH-1508	150 ton	200 mm	£12,271.00 £14,725.20 Inc. VAT
RACH-1502 RACH-1502	150 ton	50 mm	£8,917.00 £10,700.40 Inc. VAT
RACH-15010 RACH-15010	150 ton	250 mm	£13,677.00 £16,412.40 Inc. VAT
RACH-1504 RACH-1504	150 ton	100 mm	£9,886.00 £11,863.20 Inc. VAT

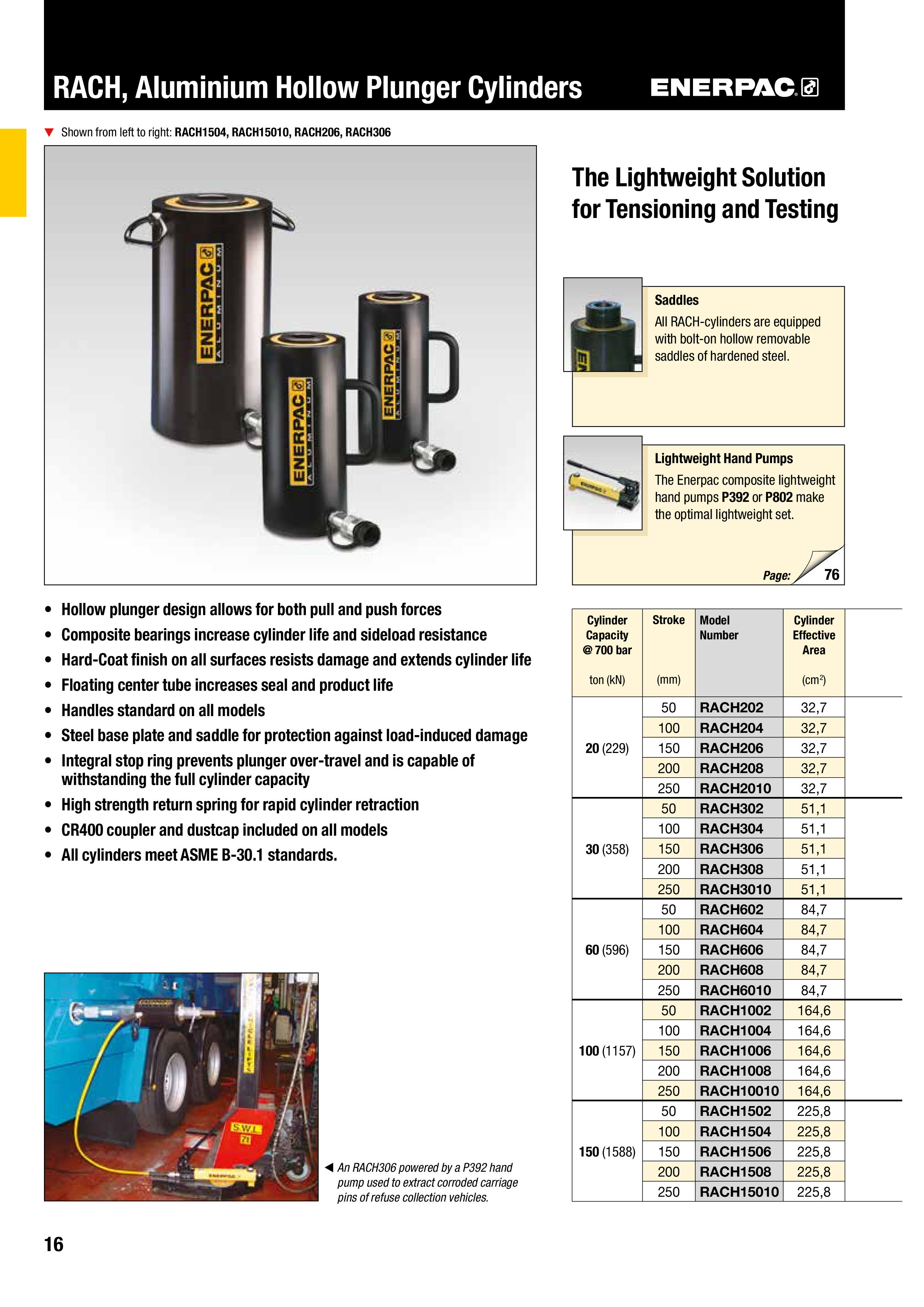

RACH-Series_Lightweight_Hollow_Plunger_Cylinders_EN-GB

Enerpac RACH-Series Single-Acting Aluminium Hollow Plunger Cylinders

Max Operating Pressure: 700 bar
Stroke: 50 to 250 mm
Cylinder Capacity: 20 to 150 ton
Centre Hole Diameter: 27 to 79 mm
Collapsed Height: 188 to 570 mm
Extended Height: 238 to 820 mm

Enerpac hollow plunger cylinders provide lightweight, versatile solutions for tensioning and testing

Features:

Enerpac hollow aluminium cylinders are a lightweight solution for tensioning and testing.
Hollow plunger cylinder design allows for both pull and push forces
Composite bearings increase cylinder life and sideload resistance
Hard-Coat finish on all surfaces resists damage and extends aluminium cylinder life
Floating centre tube increases seal and product life
Handles standard on all models
Steel base plate and saddle for protection against load-induced damage
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
High strength return spring for rapid cylinder retraction.
CR-400 coupler and dust cap included on all models
All cylinders meet ASME B-30.1 and ISO 10100 standards
