Enerpac RACL-Series Single-Acting Aluminium Lock Nut Cylinders

Aluminium lock nuts on the Enerpac RACL-Series cylinders provide excellent mechanical load holding for extended periods

Max Operating Pressure: 700 bar
Cylinder Capacity: 20 to 150 ton
Stroke: 50 to 250 mm

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

20 ton

30 ton

50 ton

100 ton

150 ton

Downloads

Description

Part Number	Cylinder Capacity	Cylinder Stroke	Price
RACL-204 RACL-204	20 ton	100 mm	£1,517.00 £1,820.40 Inc. VAT
RACL-206 RACL-206	20 ton	150 mm	£1,664.00 £1,996.80 Inc. VAT
RACL-202 RACL-202	20 ton	50 mm	£1,389.00 £1,666.80 Inc. VAT
RACL-208 RACL-208	20 ton	200 mm	£1,839.00 £2,206.80 Inc. VAT
RACL-2010 RACL-2010	20 ton	250 mm	£2,028.00 £2,433.60 Inc. VAT

Part Number	Cylinder Capacity	Cylinder Stroke	Price
RACL-3010 RACL-3010	30 ton	250 mm	£2,614.00 £3,136.80 Inc. VAT
RACL-302 RACL-302	30 ton	50 mm	£1,770.00 £2,124.00 Inc. VAT
RACL-304 RACL-304	30 ton	100 mm	£1,939.00 £2,326.80 Inc. VAT
RACL-306 RACL-306	30 ton	150 mm	£2,130.00 £2,556.00 Inc. VAT
RACL-308 RACL-308	30 ton	200 mm	£2,365.00 £2,838.00 Inc. VAT

Part Number	Cylinder Capacity	Cylinder Stroke	Price
RACL-502 RACL-502	50 ton	50 mm	£2,254.00 £2,704.80 Inc. VAT
RACL-504 RACL-504	50 ton	100 mm	£2,477.00 £2,972.40 Inc. VAT
RACL-506 RACL-506	50 ton	150 mm	£2,720.00 £3,264.00 Inc. VAT
RACL-508 RACL-508	50 ton	200 mm	£3,019.00 £3,622.80 Inc. VAT
RACL-5010 RACL-5010	50 ton	250 mm	£3,342.00 £4,010.40 Inc. VAT

Part Number	Cylinder Capacity	Cylinder Stroke	Price
RACL-1006 RACL-1006	100 ton	150 mm	£4,750.00 £5,700.00 Inc. VAT
RACL-1002 RACL-1002	100 ton	50 mm	£3,948.00 £4,737.60 Inc. VAT
RACL-1008 RACL-1008	100 ton	200 mm	£5,271.00 £6,325.20 Inc. VAT
RACL-10010 RACL-10010	100 ton	250 mm	£5,822.00 £6,986.40 Inc. VAT
RACL-1004 RACL-1004	100 ton	100 mm	£4,330.00 £5,196.00 Inc. VAT

Part Number	Cylinder Capacity	Cylinder Stroke	Price
RACL-1504 RACL-1504	150 ton	100 mm	£6,483.00 £7,779.60 Inc. VAT
RACL-1506 RACL-1506	150 ton	150 mm	£7,127.00 £8,552.40 Inc. VAT
RACL-1502 RACL-1502	150 ton	50 mm	£5,901.00 £7,081.20 Inc. VAT
RACL-1508 RACL-1508	150 ton	200 mm	£7,915.00 £9,498.00 Inc. VAT
RACL-15010 RACL-15010	150 ton	250 mm	£8,758.00 £10,509.60 Inc. VAT

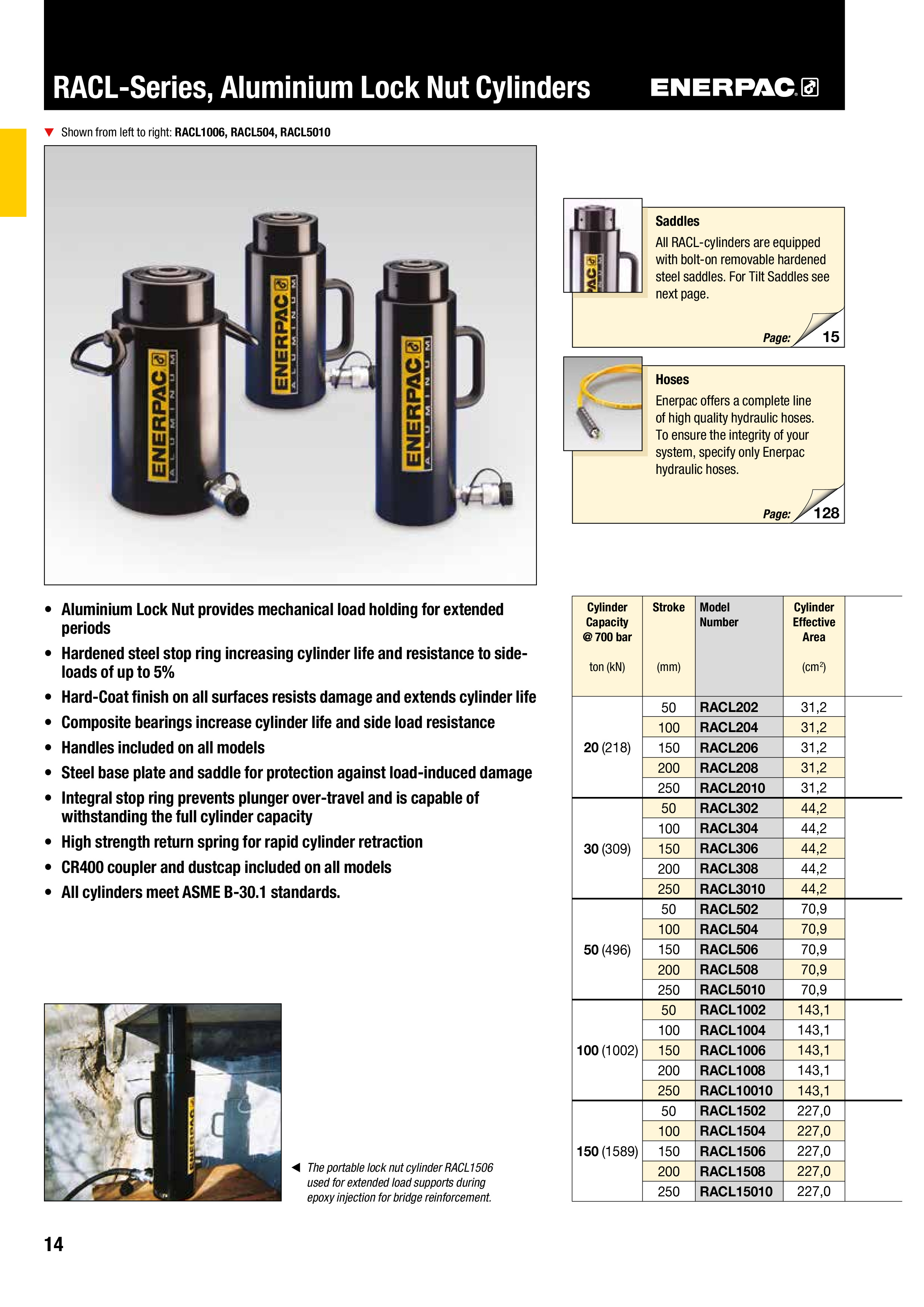

RACL-Series_Lightweight_Lock_Nut_Cylinders_EN-GB

Enerpac RACL-Series Single-Acting Aluminium Lock Nut Cylinders

Max Operating Pressure: 700 bar
Stroke: 50 to 250 mm
Cylinder Capacity: 20 to 150 ton
Collapsed Height: 224 to 525 mm
Oil Capacity cm³: 156 to 5675

Features:

Enerpac Aluminium Lock Nut Cylinders provide mechanical load holding for extended periods
Hardened steel stop ring increasing cylinder life and resistance to side-loads of up to 5%
Hard-Coat finish on all surfaces resists damage and extends cylinder life
Composite bearings increase cylinder life and side load resistance
Handles included on all cylinder models
Steel base plate and saddle for protection against load induced damage
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
High strength return spring for rapid cylinder retraction
CR-400 coupler and dust cap included on all models
All aluminium lock nut cylinders meet ASME B-30.1 and ISO 10100 standards

Use only Enerpac oil with the cylinder. The use of any other oil may invalidate your warranty
