Enerpac CSM-Series Manifold Cylinders

Enerpac CSM-Series Manifold Cylinders

• Force: 1,7 - 26,9 kN
• Stroke: 7,0 - 25,0 kN
• Pressure: 40 - 350 bar

Features:

• Enerpac manifold cylinders have a single-acting design with spring return simplifying hydraulic requirements
• Compact fixture-integrated positioning and holding
• Design eliminates the need for fittings and tubing, minimizing space requirements and facilitating easy removal of chips and dirt
• Minimal cylinder height relative to the plunger stroke enables extremely compact fixture designs
• Manifold cylinder body is fully recessed within the fixture allowing the workpiece to be positioned near-flush with the fixture surface, saving space
• Nitro carburized bodies and internal plunger wipers allow maintenance-free, high cycle performance
• Centre-tapped plungers will hold workpiece contact buttons

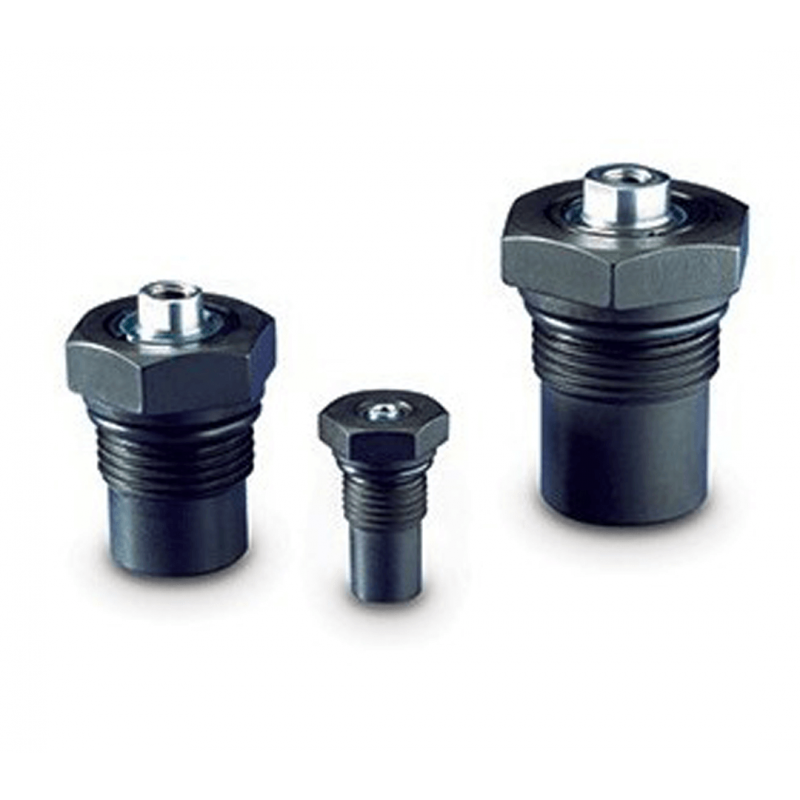

These compact, fixture-integrated cylinders are designed for workpiece positioning, holding and ejecting applications where space is at a premium. No exposed tubing

Manifold cylinders are designed to be screwed directly into a manifold or fixture. Enerpac’s manifold cylinders include a steel washer and O-ring providing an effective seal between the cylinder and manifold
