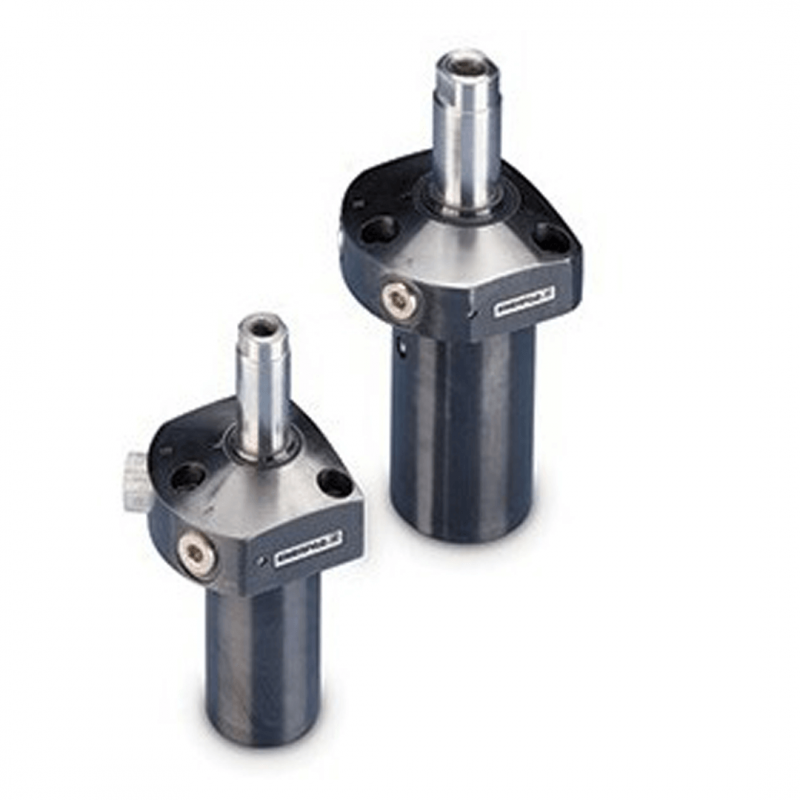

Enerpac PU-Series Upper Flange Models Pull Cylinders

Enerpac PU-Series Upper Flange Models Pull Cylinders

• Pull force: 2,6 - 43,5 kN
• Push force: 5,3 - 81,9 kN
• Stroke: 16,5 - 30,0 mm
• Pressure: 35 - 350 bar

Feature:

• Guided linear plunger movement
• Flexible design allows for manifold or threaded port connection
• Low profile mounting style allows body to be below mounting surface
• Internal plunger thread allows easy mounting of attachments
• Simple mounting preparation
• Easy to machine fixture hole: does not require tight tolerances
• Easy assembly: 3 or 4 mounting bolts
• Double oil connection: threaded port or manifold mount

Enerpac upper flange model pull cylinders require minimal mounting height for when space is at a premium

Upper flange pull cylinders are designed for integrated manifold mounting solutions

Hydraulic connections are made through SAE or BSPP oil connection or the standard integrated O-ring ports
