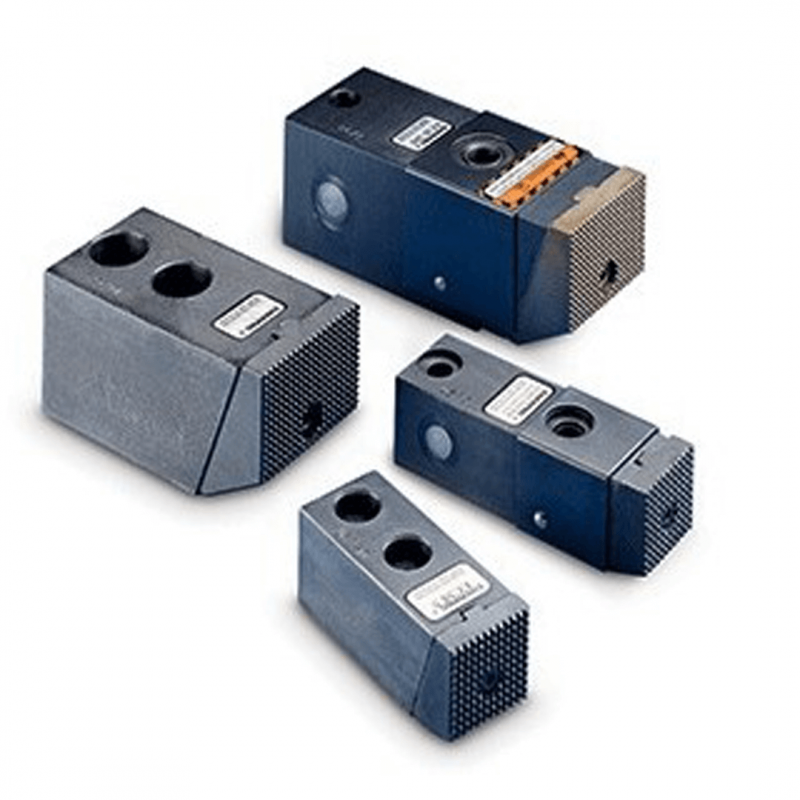

Enerpac ECH, ECM-Series Pull Down Clamps
ECH, ECM-Series low profile pull down clamps for unobstructed top face machining
- Force: 3,9 - 17,4 kN
- Stroke: 5,1 - 7,9 kN
- Pressure: 15 - 350 bar
Description
Downloads
Enerpac ECH, ECM-Series Pull Down Clamps
- Force: 3,9 - 17,4 kN
- Stroke: 5,1 - 7,9 kN
- Pressure: 15 - 350 bar
Enerpac pull down clamps are designed to allow unobstructed top face machining. Independent horizontal and vertical movement achieves high lateral and pull down forces to hold the workpiece firmly down against the machine table or fixture. The pull down forces are approximately 33% of the clamping force
Features:
- Enerpac low profile pull down clamps for unobstructed top face machining
- Independent horizontal and vertical movement for a true pull down effect
- Compact size and low height allows more flexible and economic mounting than comparable dedicated vise
- Manifold and BSPP porting
- Contamination resistant design for low maintenance, removable guard for chip removal
- Oil ports on both sides for mounting flexibility
- Optional mechanical counter hold provides pull down on end stop for large parts
- Mounting bolts included for ease of installation
