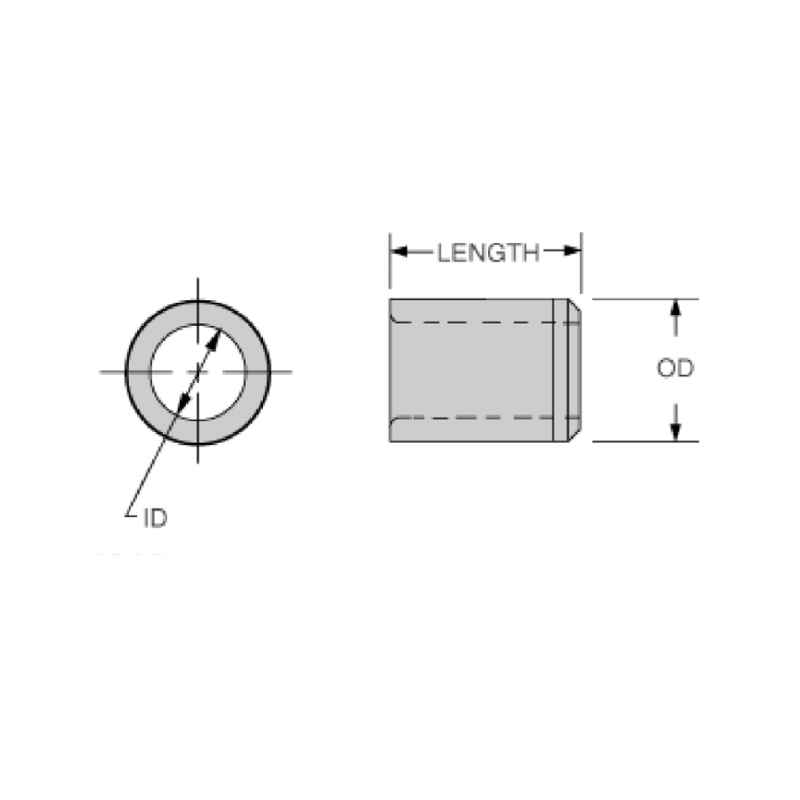

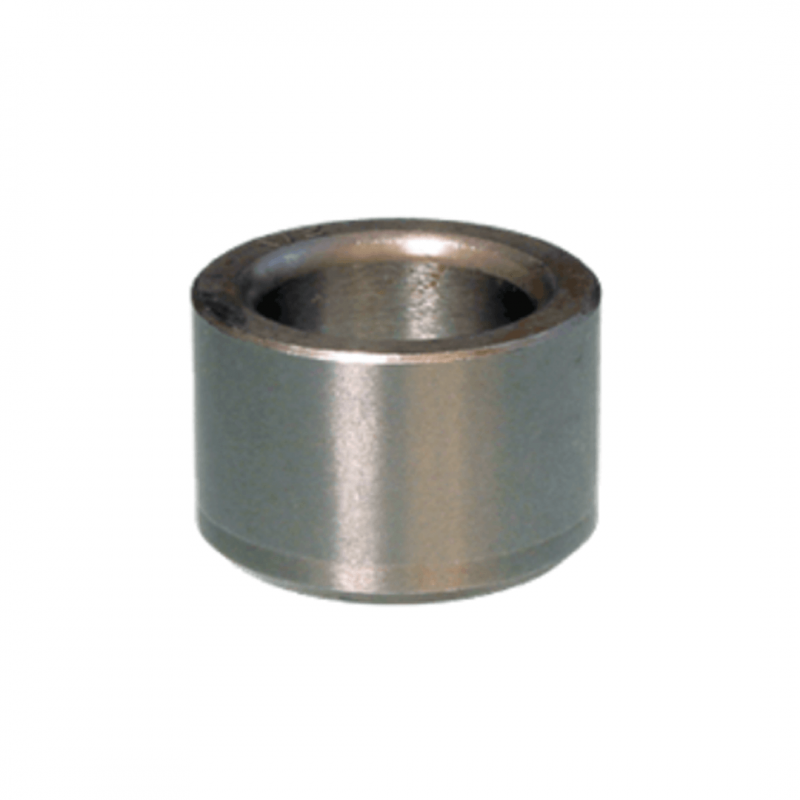

Carr Lane Liner Bushings

Carr Lane Liner bushings are permanently installed bushings used to hold renewable drill bushings. The inner diameter of the liner has an exact sliding tolerance with the outer diameter of the replaceable bushing. This arrangement ensures the correct positioning of the replaceable bushing and shields the jig plate from damage and wear caused by regular bushing changes. The "length" specified for an HL bushing refers to its total length, not the portion beneath the head. These are available in both ground and unground options available.

  • OD - 1/2 - 2-3/4
  • ID RANGE - 5/16 - 2-1/4
  • Imperial sizes with a variety of lengths and unground options available
Print page

Products
Downloads
Description
Part Number Material Number OD Length ID Unground Price Add to Parts List
L-28-5U L-28-5U 7/16 7/16 1/4 Yes On Enquiry
L-28-10U L-28-10U 7/16 5/8 1/4 Yes On Enquiry
L-28-6U L-28-6U 7/16 3/8 1/4 Yes On Enquiry
L-28-12U L-28-12U 7/16 3/4 1/4 Yes On Enquiry
L-28-4U L-28-4U 7/16 1/4 1/4 Yes On Enquiry
L-28-8U L-28-8U 7/16 1/2 1/4 Yes On Enquiry
L-28-5 L-28-5 7/16 7/16 1/4 No £12.22
£14.66 Inc. VAT
L-28-10 L-28-10 7/16 5/8 1/4 No £13.68
£16.42 Inc. VAT
L-28-6 L-28-6 7/16 3/8 1/4 No £13.28
£15.94 Inc. VAT
L-28-12 L-28-12 7/16 3/4 1/4 No £15.01
£18.01 Inc. VAT
L-28-4 L-28-4 7/16 1/4 1/4 No £11.84
£14.21 Inc. VAT
L-28-8 L-28-8 7/16 1/2 1/4 No £11.96
£14.35 Inc. VAT
L-176-40U L-176-40U 2-3/4 2-1/2 2-1/4 Yes On Enquiry
L-176-16U L-176-16U 2-3/4 1 2-1/4 Yes On Enquiry
L-176-28U L-176-28U 2-3/4 1-3/4 2-1/4 Yes On Enquiry
L-176-48U L-176-48U 2-3/4 3 2-1/4 Yes On Enquiry
L-176-22U L-176-22U 2-3/4 1-3/8 2-1/4 Yes On Enquiry
L-176-34U L-176-34U 2-3/4 2-1/8 2-1/4 Yes On Enquiry
L-176-12U L-176-12U 2-3/4 3/4 2-1/4 Yes On Enquiry
L-176-24U L-176-24U 2-3/4 1-1/2 2-1/4 Yes On Enquiry
L-176-28 L-176-28 2-3/4 1-3/4 2-1/4 No £53.27
£63.92 Inc. VAT
L-176-48 L-176-48 2-3/4 3 2-1/4 No £88.88
£106.66 Inc. VAT
L-176-22 L-176-22 2-3/4 1-3/8 2-1/4 No £47.60
£57.12 Inc. VAT
L-176-34 L-176-34 2-3/4 2-1/8 2-1/4 No £58.14
£69.77 Inc. VAT
L-176-12 L-176-12 2-3/4 3/4 2-1/4 No £47.24
£56.69 Inc. VAT
L-176-24 L-176-24 2-3/4 1-1/2 2-1/4 No £50.40
£60.48 Inc. VAT
L-176-40 L-176-40 2-3/4 2-1/2 2-1/4 No £64.84
£77.81 Inc. VAT
L-176-16 L-176-16 2-3/4 1 2-1/4 No £42.74
£51.29 Inc. VAT
L-144-16U L-144-16U 2-1/4 1 1-3/4 Yes On Enquiry
L-144-28U L-144-28U 2-1/4 1-3/4 1-3/4 Yes On Enquiry
L-144-48U L-144-48U 2-1/4 3 1-3/4 Yes On Enquiry
L-144-22U L-144-22U 2-1/4 1-3/8 1-3/4 Yes On Enquiry
L-144-34U L-144-34U 2-1/4 2-1/8 1-3/4 Yes On Enquiry
L-144-12U L-144-12U 2-1/4 3/4 1-3/4 Yes On Enquiry
L-144-24U L-144-24U 2-1/4 1-1/2 1-3/4 Yes On Enquiry
L-144-40U L-144-40U 2-1/4 2-1/2 1-3/4 Yes On Enquiry
L-144-48 L-144-48 2-1/4 3 1-3/4 No £85.10
£102.12 Inc. VAT
L-144-22 L-144-22 2-1/4 1-3/8 1-3/4 No £42.74
£51.29 Inc. VAT
L-144-34 L-144-34 2-1/4 2-1/8 1-3/4 No £54.32
£65.18 Inc. VAT
L-144-12 L-144-12 2-1/4 3/4 1-3/4 No £42.74
£51.29 Inc. VAT
L-144-24 L-144-24 2-1/4 1-1/2 1-3/4 No £44.87
£53.84 Inc. VAT
L-144-40 L-144-40 2-1/4 2-1/2 1-3/4 No £59.48
£71.38 Inc. VAT
L-144-16 L-144-16 2-1/4 1 1-3/4 No £38.52
£46.22 Inc. VAT
L-144-28 L-144-28 2-1/4 1-3/4 1-3/4 No £46.92
£56.30 Inc. VAT
L-112-28U L-112-28U 1-3/4 1-3/4 1-3/8 Yes On Enquiry
L-112-48U L-112-48U 1-3/4 3 1-3/8 Yes On Enquiry
L-112-22U L-112-22U 1-3/4 1-3/8 1-3/8 Yes On Enquiry
L-112-34U L-112-34U 1-3/4 2-1/8 1-3/8 Yes On Enquiry
L-112-12U L-112-12U 1-3/4 3/4 1-3/8 Yes On Enquiry
L-112-24U L-112-24U 1-3/4 1-1/2 1-3/8 Yes On Enquiry
L-112-40U L-112-40U 1-3/4 2-1/2 1-3/8 Yes On Enquiry
L-112-16U L-112-16U 1-3/4 1 1-3/8 Yes On Enquiry
L-112-48 L-112-48 1-3/4 3 1-3/8 No £73.12
£87.74 Inc. VAT
L-112-22 L-112-22 1-3/4 1-3/8 1-3/8 No £33.71
£40.45 Inc. VAT
L-112-34 L-112-34 1-3/4 2-1/8 1-3/8 No £44.48
£53.38 Inc. VAT
L-112-12 L-112-12 1-3/4 3/4 1-3/8 No £33.71
£40.45 Inc. VAT
L-112-24 L-112-24 1-3/4 1-1/2 1-3/8 No £36.08
£43.30 Inc. VAT
L-112-40 L-112-40 1-3/4 2-1/2 1-3/8 No £47.48
£56.98 Inc. VAT
L-112-16 L-112-16 1-3/4 1 1-3/8 No £29.72
£35.66 Inc. VAT
L-112-28 L-112-28 1-3/4 1-3/4 1-3/8 No £38.16
£45.79 Inc. VAT
L-88-8U L-88-8U 1-3/8 1/2 1 Yes On Enquiry
L-88-12U L-88-12U 1-3/8 3/4 1 Yes On Enquiry
L-88-16U L-88-16U 1-3/8 1 1 Yes On Enquiry
L-88-48U L-88-48U 1-3/8 3 1 Yes On Enquiry
L-88-22U L-88-22U 1-3/8 1-3/8 1 Yes On Enquiry
L-88-34U L-88-34U 1-3/8 2-1/8 1 Yes On Enquiry
L-88-24U L-88-24U 1-3/8 1-1/2 1 Yes On Enquiry
L-88-40U L-88-40U 1-3/8 2-1/2 1 Yes On Enquiry
L-88-28U L-88-28U 1-3/8 1-3/4 1 Yes On Enquiry
L-88-22 L-88-22 1-3/8 1-3/8 1 No £26.00
£31.20 Inc. VAT
L-88-12 L-88-12 1-3/8 3/4 1 No £19.58
£23.50 Inc. VAT
L-88-16 L-88-16 1-3/8 1 1 No £23.57
£28.28 Inc. VAT
L-88-8 L-88-8 1-3/8 1/2 1 No £26.95
£32.34 Inc. VAT
L-88-34 L-88-34 1-3/8 2-1/8 1 No £41.06
£49.27 Inc. VAT
L-88-24 L-88-24 1-3/8 1-1/2 1 No £32.60
£39.12 Inc. VAT
L-88-40 L-88-40 1-3/8 2-1/2 1 No £45.88
£55.06 Inc. VAT
L-88-28 L-88-28 1-3/8 1-3/4 1 No £35.41
£42.49 Inc. VAT
L-88-48 L-88-48 1-3/8 3 1 No £63.40
£76.08 Inc. VAT
L-64-16U L-64-16U 1 1 3/4 Yes On Enquiry
L-64-28U L-64-28U 1 1-3/4 3/4 Yes On Enquiry
L-64-8U L-64-8U 1 1/2 3/4 Yes On Enquiry
L-64-48U L-64-48U 1 3 3/4 Yes On Enquiry
L-64-22U L-64-22U 1 1-3/8 3/4 Yes On Enquiry
L-64-34U L-64-34U 1 2-1/8 3/4 Yes On Enquiry
L-64-12U L-64-12U 1 3/4 3/4 Yes On Enquiry
L-64-24U L-64-24U 1 1-1/2 3/4 Yes On Enquiry
L-64-40U L-64-40U 1 2-1/2 3/4 Yes On Enquiry
L-80-20 L-80-20 1 1-1/4 7/8 No £29.45
£35.34 Inc. VAT
L-80-12 L-80-12 1 3/4 7/8 No £22.39
£26.87 Inc. VAT
L-80-24 L-80-24 1 1-1/2 7/8 No £31.84
£38.21 Inc. VAT
L-80-8 L-80-8 1 1/2 7/8 No £26.32
£31.58 Inc. VAT
L-80-16 L-80-16 1 1 7/8 No £26.32
£31.58 Inc. VAT
L-80-10 L-80-10 1 5/8 7/8 No £24.84
£29.81 Inc. VAT
L-64-8 L-64-8 1 1/2 3/4 No £14.98
£17.98 Inc. VAT
L-64-48 L-64-48 1 3 3/4 No £52.09
£62.51 Inc. VAT
L-64-22 L-64-22 1 1-3/8 3/4 No £19.60
£23.52 Inc. VAT
L-64-34 L-64-34 1 2-1/8 3/4 No £26.95
£32.34 Inc. VAT
L-64-12 L-64-12 1 3/4 3/4 No £14.98
£17.98 Inc. VAT
L-64-24 L-64-24 1 1-1/2 3/4 No £19.31
£23.17 Inc. VAT
L-64-40 L-64-40 1 2-1/2 3/4 No £31.16
£37.39 Inc. VAT
L-64-16 L-64-16 1 1 3/4 No £15.88
£19.06 Inc. VAT
L-64-28 L-64-28 1 1-3/4 3/4 No £24.18
£29.02 Inc. VAT
L-80-10U L-80-10U 1 5/8 7/8 Yes On Enquiry
L-80-20U L-80-20U 1 1-1/4 7/8 Yes On Enquiry
L-80-12U L-80-12U 1 3/4 7/8 Yes On Enquiry
L-80-24U L-80-24U 1 1-1/2 7/8 Yes On Enquiry
L-80-8U L-80-8U 1 1/2 7/8 Yes On Enquiry
L-80-16U L-80-16U 1 1 7/8 Yes On Enquiry
L-56-20U-36 L-56-20U-36 7/8 1-1/4 9/16 Yes On Enquiry
L-56-6U-36 L-56-6U-36 7/8 3/8 9/16 Yes On Enquiry
L-56-12U-36 L-56-12U-36 7/8 3/4 9/16 Yes On Enquiry
L-56-8U-36 L-56-8U-36 7/8 1/2 9/16 Yes On Enquiry
L-56-16U-36 L-56-16U-36 7/8 1 9/16 Yes On Enquiry
L-56-5U-36 L-56-5U-36 7/8 5/16 9/16 Yes On Enquiry
L-56-10U-36 L-56-10U-36 7/8 5/8 9/16 Yes On Enquiry
L-56-8-40 L-56-8-40 7/8 1/2 5/8 No £16.46
£19.75 Inc. VAT
L-56-16-40 L-56-16-40 7/8 1 5/8 No £17.93
£21.52 Inc. VAT
L-56-5-40 L-56-5-40 7/8 5/16 5/8 No £17.93
£21.52 Inc. VAT
L-56-10-40 L-56-10-40 7/8 5/8 5/8 No £17.10
£20.52 Inc. VAT
L-56-20-40 L-56-20-40 7/8 1-1/4 5/8 No £19.60
£23.52 Inc. VAT
L-56-6-40 L-56-6-40 7/8 3/8 5/8 No £18.52
£22.22 Inc. VAT
L-56-12-40 L-56-12-40 7/8 3/4 5/8 No £17.10
£20.52 Inc. VAT
L-56-6-36 L-56-6-36 7/8 3/8 9/16 No £18.52
£22.22 Inc. VAT
L-56-12-36 L-56-12-36 7/8 3/4 9/16 No £17.10
£20.52 Inc. VAT
L-56-8-36 L-56-8-36 7/8 1/2 9/16 No £16.46
£19.75 Inc. VAT
L-56-16-36 L-56-16-36 7/8 1 9/16 No £17.93
£21.52 Inc. VAT
L-56-5-36 L-56-5-36 7/8 5/16 9/16 No £17.93
£21.52 Inc. VAT
L-56-10-36 L-56-10-36 7/8 5/8 9/16 No £17.10
£20.52 Inc. VAT
L-56-20-36 L-56-20-36 7/8 1-1/4 9/16 No £19.60
£23.52 Inc. VAT
L-56-12U-40 L-56-12U-40 7/8 3/4 5/8 Yes On Enquiry
L-56-8U-40 L-56-8U-40 7/8 1/2 5/8 Yes On Enquiry
L-56-16U-40 L-56-16U-40 7/8 1 5/8 Yes On Enquiry
L-56-5U-40 L-56-5U-40 7/8 5/16 5/8 Yes On Enquiry
L-56-10U-40 L-56-10U-40 7/8 5/8 5/8 Yes On Enquiry
L-56-20U-40 L-56-20U-40 7/8 1-1/4 5/8 Yes On Enquiry
L-56-6U-40 L-56-6U-40 7/8 3/8 5/8 Yes On Enquiry
L-48-28U L-48-28U 3/4 1-3/4 1/2 Yes On Enquiry
L-48-8U L-48-8U 3/4 1/2 3/8 Yes On Enquiry
L-48-22U L-48-22U 3/4 1-3/8 1/2 Yes On Enquiry
L-48-5U L-48-5U 3/4 5/16 1/2 Yes On Enquiry
L-48-34U L-48-34U 3/4 2-1/8 1/2 Yes On Enquiry
L-48-12U L-48-12U 3/4 3/4 1/2 Yes On Enquiry
L-48-24U L-48-24U 3/4 1-1/2 1/2 Yes On Enquiry
L-48-6U L-48-6U 3/4 3/8 1/2 Yes On Enquiry
L-48-16U L-48-16U 3/4 1 1/2 Yes On Enquiry
L-48-22 L-48-22 3/4 1-3/8 1/2 No £20.00
£24.00 Inc. VAT
L-48-5 L-48-5 3/4 5/16 1/2 No £12.22
£14.66 Inc. VAT
L-48-34 L-48-34 3/4 2-1/8 1/2 No £27.40
£32.88 Inc. VAT
L-48-12 L-48-12 3/4 3/4 1/2 No £12.52
£15.02 Inc. VAT
L-48-24 L-48-24 3/4 1-1/2 1/2 No £21.31
£25.57 Inc. VAT
L-48-6 L-48-6 3/4 3/8 1/2 No £13.68
£16.42 Inc. VAT
L-48-16 L-48-16 3/4 1 1/2 No £15.78
£18.94 Inc. VAT
L-48-28 L-48-28 3/4 1-3/4 1/2 No £23.18
£27.82 Inc. VAT
L-48-8 L-48-8 3/4 1/2 3/8 No £11.96
£14.35 Inc. VAT
L-40-8U-24 L-40-8U-24 5/8 1/2 3/8 Yes On Enquiry
L-40-16U-24 L-40-16U-24 5/8 1 3/8 Yes On Enquiry
L-40-5U-24 L-40-5U-24 5/8 5/16 3/8 Yes On Enquiry
L-40-10U-24 L-40-10U-24 5/8 5/8 3/8 Yes On Enquiry
L-40-6U-24 L-40-6U-24 5/8 3/8 3/8 Yes On Enquiry
L-40-12U-24 L-40-12U-24 5/8 3/4 3/8 Yes On Enquiry
L-40-4U-24 L-40-4U-24 5/8 1/4 3/8 Yes On Enquiry
L-40-6-28 L-40-6-28 5/8 3/8 7/16 No £12.60
£15.12 Inc. VAT
L-40-12-28 L-40-12-28 5/8 3/4 7/16 No £13.68
£16.42 Inc. VAT
L-40-4-28 L-40-4-28 5/8 1/4 7/16 No £13.68
£16.42 Inc. VAT
L-40-8-28 L-40-8-28 5/8 1/2 7/16 No £12.60
£15.12 Inc. VAT
L-40-16-28 L-40-16-28 5/8 1 7/16 No £14.33
£17.20 Inc. VAT
L-40-5-28 L-40-5-28 5/8 5/16 7/16 No £11.84
£14.21 Inc. VAT
L-40-10-28 L-40-10-28 5/8 5/8 7/16 No £13.28
£15.94 Inc. VAT
L-40-16-24 L-40-16-24 5/8 1 3/8 No £14.33
£17.20 Inc. VAT
L-40-5-24 L-40-5-24 5/8 5/16 3/8 No £11.84
£14.21 Inc. VAT
L-40-10-24 L-40-10-24 5/8 5/8 3/8 No £13.28
£15.94 Inc. VAT
L-40-6-24 L-40-6-24 5/8 3/8 3/8 No £11.03
£13.24 Inc. VAT
L-40-12-24 L-40-12-24 5/8 3/4 3/8 No £13.68
£16.42 Inc. VAT
L-40-4-24 L-40-4-24 5/8 1/4 3/8 No £13.68
£16.42 Inc. VAT
L-40-8-24 L-40-8-24 5/8 1/2 3/8 No £11.03
£13.24 Inc. VAT
L-40-10U-28 L-40-10U-28 5/8 5/8 7/16 Yes On Enquiry
L-40-6U-28 L-40-6U-28 5/8 3/8 7/16 Yes On Enquiry
L-40-12U-28 L-40-12U-28 5/8 3/4 7/16 Yes On Enquiry
L-40-4U-28 L-40-4U-28 5/8 1/4 7/16 Yes On Enquiry
L-40-8U-28 L-40-8U-28 5/8 1/2 7/16 Yes On Enquiry
L-40-16U-28 L-40-16U-28 5/8 1 7/16 Yes On Enquiry
L-40-5U-28 L-40-5U-28 5/8 5/16 7/16 Yes On Enquiry
L-36-6U L-36-6U 9/16 3/8 5/16 Yes On Enquiry
L-36-12U L-36-12U 9/16 3/4 5/16 Yes On Enquiry
L-36-4U L-36-4U 9/16 1/4 5/16 Yes On Enquiry
L-36-8U L-36-8U 9/16 1/2 5/16 Yes On Enquiry
L-36-16U L-36-16U 9/16 1 5/16 Yes On Enquiry
L-36-5U L-36-5U 9/16 5/16 5/16 Yes On Enquiry
L-36-10U L-36-10U 9/16 5/8 5/16 Yes On Enquiry
L-36-4 L-36-4 9/16 1/4 5/16 No £13.68
£16.42 Inc. VAT
L-36-8 L-36-8 9/16 1/2 5/16 No £12.60
£15.12 Inc. VAT
L-36-16 L-36-16 9/16 1 5/16 No £13.68
£16.42 Inc. VAT
L-36-5 L-36-5 9/16 5/16 5/16 No £11.84
£14.21 Inc. VAT
L-36-10 L-36-10 9/16 5/8 5/16 No £13.28
£15.94 Inc. VAT
L-36-6 L-36-6 9/16 3/8 5/16 No £12.60
£15.12 Inc. VAT
L-36-12 L-36-12 9/16 3/4 5/16 No £13.68
£16.42 Inc. VAT
L-32-12U L-32-12U 1/2 3/4 5/16 Yes On Enquiry
L-32-4U L-32-4U 1/2 1/4 5/16 No On Enquiry
L-32-8U L-32-8U 1/2 1/2 5/16 Yes On Enquiry
L-32-16U L-32-16U 1/2 1 5/16 Yes On Enquiry
L-32-5U L-32-5U 1/2 5/16 5/16 Yes On Enquiry
L-32-10U L-32-10U 1/2 5/8 5/16 Yes On Enquiry
L-32-6U L-32-6U 1/2 3/8 5/16 Yes On Enquiry
L-32-22 L-32-22 1/2 1-3/8 5/16 No £20.00
£24.00 Inc. VAT
L-32-8 L-32-8 1/2 1/2 5/16 No £11.96
£14.35 Inc. VAT
L-32-16 L-32-16 1/2 1 5/16 No £15.29
£18.35 Inc. VAT
L-32-5 L-32-5 1/2 5/16 5/16 No £12.22
£14.66 Inc. VAT
L-32-10 L-32-10 1/2 5/8 5/16 No £14.33
£17.20 Inc. VAT
L-32-6 L-32-6 1/2 3/8 5/16 No £13.28
£15.94 Inc. VAT
L-32-12 L-32-12 1/2 3/4 5/16 No £15.01
£18.01 Inc. VAT
L-32-4 L-32-4 1/2 1/4 5/16 No £10.37
£12.44 Inc. VAT
L-32-22U L-32-22U 1/2 1-3/8 5/16 Yes On Enquiry
L-20-10U L-20-10U 5/16 5/8 3/16 Yes On Enquiry
L-20-6U L-20-6U 5/16 3/8 3/16 Yes On Enquiry
L-20-12U L-20-12U 5/16 3/4 3/16 Yes On Enquiry
L-20-4 L-20-4 5/16 1/4 3/16 No £13.68
£16.42 Inc. VAT
L-20-8U L-20-8U 5/16 1/2 3/16 Yes On Enquiry
L-20-5U L-20-5U 5/16 5/16 3/16 Yes On Enquiry
L-20-6 L-20-6 5/16 3/8 3/16 No £15.01
£18.01 Inc. VAT
L-20-12 L-20-12 5/16 3/4 3/16 No £17.10
£20.52 Inc. VAT
L-20-4 L-20-4 5/16 1/4 3/16 No £13.68
£16.42 Inc. VAT
L-20-8 L-20-8 5/16 1/2 3/16 No £15.78
£18.94 Inc. VAT
L-20-5 L-20-5 5/16 5/16 3/16 No £14.33
£17.20 Inc. VAT
L-20-10 L-20-10 5/16 5/8 3/16 No £16.46
£19.75 Inc. VAT
L-20-4U L-20-4U 5/16 1/4 3/16 Yes On Enquiry
Carr Lane Liner Bushings datasheet

Carr Lane Liner Bushings

Carr Lane Liner bushings are permanently installed bushings used to hold renewable drill bushings. The inner diameter of the liner has an exact sliding tolerance with the outer diameter of the replaceable bushing. This arrangement ensures the correct positioning of the replaceable bushing and shields the jig plate from damage and wear caused by regular bushing changes. The "length" specified for an HL bushing refers to its total length, not the portion beneath the head. These are available in both ground and unground options available.

Options:

  • OD - 1/2 - 2-3/4
  • ID RANGE - 5/16 - 2-1/4
  • Length - 1/4 - 3
Quantity Unit discount You Save

Customers who bought this product also bought:

Carr Lane Shoulder Screws

Carr Lanes shoulder screws are a type of fastener that are manufactured with a cylindrical body and a shoulder between the threaded portion and the head of the screw. The shoulder is larger in diameter in comparison to the threaded area and is a bearing surface or precise reference point. This item is available in both metric and imperial sizing and in thread diameters from 1/4" to 3/4" (8 to 20mm). These shoulder screws are best used for critical applications where precision and performance are vital.

  • Metric and Imperial sizes available
  • Shoulder Dia - 1/4 - 3/4 or 8mm - 20mm
£7.64 £9.17 Inc. VAT
View
