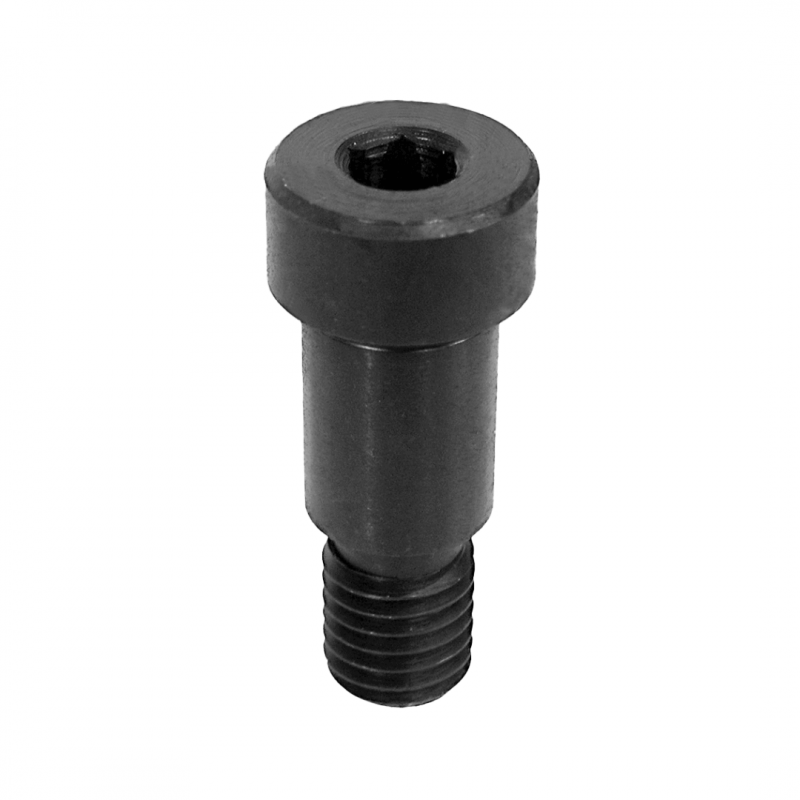

Carr Lanes shoulder screws are a type of fastener that are manufactured with a cylindrical body and a shoulder between the threaded portion and the head of the screw. The shoulder is larger in diameter in comparison to the threaded area and is a bearing surface or precise reference point. This item is available in both metric and imperial sizing and in thread diameters from 1/4" to 3/4" (8 to 20mm). These shoulder screws are best used for critical applications where precision and performance are vital.
| Part Number | Material Number | Metric or Imperial | Length | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CLM-806-SS | Metric | 6mm | M6 | £15.56 £18.67 Inc. VAT |
|
|
| CLM-1016-SS | Metric | 16mm | M8 | £16.30 £19.56 Inc. VAT |
|
|
| CLM-810-SS | Metric | 10mm | M6 | £17.74 £21.29 Inc. VAT |
|
|
| CLM-1020-SS | Metric | 20mm | M8 | £16.30 £19.56 Inc. VAT |
|
|
| CLM-812-SS | Metric | 12mm | M6 | £16.30 £19.56 Inc. VAT |
|
|
| CLM-1312-SS | Metric | 12mm | M10 | £15.56 £18.67 Inc. VAT |
|
|
| CLM-816-SS | Metric | 16mm | M6 | £16.61 £19.93 Inc. VAT |
|
|
| CLM-1320-SS | Metric | 20mm | M10 | £16.62 £19.94 Inc. VAT |
|
|
| CLM-1006-SS | Metric | 6mm | M8 | £16.93 £20.32 Inc. VAT |
|
|
| CLM-1616-SS | Metric | 16mm | M12 | £18.07 £21.68 Inc. VAT |
|
|
| CLM-2016-SS | Metric | 16mm | M16 | £23.66 £28.39 Inc. VAT |
|
|
| CLM-1008-SS | Metric | 8mm | M8 | £17.74 £21.29 Inc. VAT |
|
|
| CLM-1010-SS | Metric | 10mm | M8 | £16.30 £19.56 Inc. VAT |
|
|
| CLM-2025-SS | Metric | 25mm | M16 | £24.50 £29.40 Inc. VAT |
|
|
| CLM-1012-SS | Metric | 12mm | M8 | £16.30 £19.56 Inc. VAT |
|
|
| CLM-1310-SS | Metric | 10mm | M10 | £15.47 £18.56 Inc. VAT |
|
|
| CL-21-SS | Imperial | 5/8 | 1/4-20 | £9.72 £11.66 Inc. VAT |
|
|
| CL-47-SS | Imperial | 1 | 5/16-18 | £11.40 £13.68 Inc. VAT |
|
|
| CL-35-SS | Imperial | 3/4 | 1/2-13 | £13.58 £16.30 Inc. VAT |
|
|
| CL-13-SS | Imperial | 1/2 | #10-24 | £4.99 £5.99 Inc. VAT |
|
|
| CL-37-SS | Imperial | 5/8 | #10-24 | £7.75 £9.30 Inc. VAT |
|
|
| CL-7-SS | Imperial | 3/4 | 1/4-20 | £9.72 £11.66 Inc. VAT |
|
|
| CL-3-SS | Imperial | 3/8 | 3/8-16 | £10.66 £12.79 Inc. VAT |
|
|
| CL-36-SS | Imperial | 1 | 1/2-13 | £13.93 £16.72 Inc. VAT |
|
|
| CL-15-SS | Imperial | 3/4 | #10-24 | £7.75 £9.30 Inc. VAT |
|
|
| CL-8-SS | Imperial | 1 | 1/4-20 | £10.39 £12.47 Inc. VAT |
|
|
| CL-4-SS | Imperial | 1/2 | 3/8-16 | £12.20 £14.64 Inc. VAT |
|
|
| CL-39-SS | Imperial | 3/4 | 5/8-11 | £12.82 £15.38 Inc. VAT |
|
|
| CL-16-SS | Imperial | 1 | #10-24 | £7.75 £9.30 Inc. VAT |
|
|
| CL-24-SS | Imperial | 1/4 | 5/16-18 | £7.75 £9.30 Inc. VAT |
|
|
| CL-31-SS | Imperial | 5/8 | 3/8-16 | £12.20 £14.64 Inc. VAT |
|
|
| CL-40-SS | Imperial | 1 | 5/8-11 | £13.48 £16.18 Inc. VAT |
|
|
| CL-1-SS | Imperial | 1/4 | 1/4-20 | £9.72 £11.66 Inc. VAT |
|
|
| CL-2-SS | Imperial | 3/8 | 5/16-18 | £7.75 £9.30 Inc. VAT |
|
|
| CL-32-SS | Imperial | 3/4 | 3/8-16 | £14.00 £16.80 Inc. VAT |
|
|
| CL-6-SS | Imperial | 5/16 | 1/4-20 | £9.72 £11.66 Inc. VAT |
|
|
| CL-14-SS | Imperial | 1/2 | 5/16-18 | £8.12 £9.74 Inc. VAT |
|
|
| CL-46-SS | Imperial | 1 | 3/8-16 | £14.50 £17.40 Inc. VAT |
|
|
| CL-33-SS | Imperial | 1/2 | 1/2-13 | £11.04 £13.25 Inc. VAT |
|
|
| CL-5-SS | Imperial | 1/4 | #10-24 | £7.64 £9.17 Inc. VAT |
|
|
| CL-11-SS | Imperial | 3/8 | 1/4-20 | £9.72 £11.66 Inc. VAT |
|
|
| CL-9-SS | Imperial | 5/8 | 5/16-18 | £8.89 £10.67 Inc. VAT |
|
|
| CL-10-SS | Imperial | 3/4 | 5/16-18 | £10.14 £12.17 Inc. VAT |
|
|
| CL-34-SS | Imperial | 5/8 | 1/2-13 | £11.04 £13.25 Inc. VAT |
|
|
| CL-12-SS | Imperial | 3/8 | #10-24 | £4.99 £5.99 Inc. VAT |
|
|
| CL-20-SS | Imperial | 1/2 | 1/4-20 | £9.72 £11.66 Inc. VAT |
|
Carr Lanes shoulder screws are a type of fastener that are manufactured with a cylindrical body and a shoulder between the threaded portion and the head of the screw. The shoulder is larger in diameter in comparison to the threaded area and is a bearing surface or precise reference point. This item is available in both metric and imperial sizing and in thread diameters from 1/4" to 3/4" (8 to 20mm). These shoulder screws are best used for critical applications where precision and performance are vital.
Options:
| Quantity | Unit discount | You Save |
|---|
Swivel-screw bodies that accept any of the feet also in this category
Carr Lane Head Liners are similar to L bushings but include a head that offers resistance to substantial axial forces. The inner diameter of the liner has an exact sliding tolerance with the outer diameter of the replaceable bushing. This arrangement ensures the correct positioning of the replaceable bushing and shields the jig plate from damage and wear caused by regular bushing changes. The "length" specified for an HL bushing refers to its total length, not the portion beneath the head. These are available in both metric and imperial sizing.
Range of Carr Lane Assemblies including Hand Knob, Swivel Washer and Knob Shoe avaible in a variety of sizes
A precision locating pin is commonly used with a matching bushing to align two parts of a fixture. The pin’s head and shank diameters are concentric within .0005" TIR. Available in pin diameters of 1/4", 5/16", 3/8", and 1/2" (6mm, 8mm, 10mm, and 12mm in metric). A precision bushing is used with a Bullet-Nose Dowel to align two components of a fixture. The bushing’s ID and OD are concentric within .0003" TIR. Available for pin diameters of 1/4", 5/16", 3/8", and 1/2" (6mm, 8mm, 10mm, and 12mm in metric).
Carr Lanes cone locating pin is designed to be used with the matching bushing. These pins are ideal for the fast assembly of two fixture parts, as they help accommodate significant misalignment. The pin's shank diameter and the bushing's outer diameter are precisely the same, enabling both fixture pieces to be bored for the installation hole simultaneously, ensuring enhanced accuracy. The mating bushing is paired with a Cone Locator Pin to align two pieces of a fixture. These are offered with 1/2 and 3/4" shank diameters (12 and 20mm in metric).
Carr Lanes Hex and jam nuts are available in various thread sizes in both metric and imperial sizing to fit the needs of your application. They are also available in steel and stainless teel variants.
Adjustable-toque thumb screws exert positive and repeatable force. When turned clockwise, the knob disengages and rotates freely once the desired torque is reached. Turning it anti-clockwise locks the knob for secure retraction. Adjustable-Torque Thumb Screws come with a swivel foot option and a knurled check nut. These screws are available in body-thread sizes ranging from #10-32 to 5/8-11 (M5 to M16 in metric), with various length options.
Carr Lane Liner bushings are permanently installed bushings used to hold renewable drill bushings. The inner diameter of the liner has an exact sliding tolerance with the outer diameter of the replaceable bushing. This arrangement ensures the correct positioning of the replaceable bushing and shields the jig plate from damage and wear caused by regular bushing changes. The "length" specified for an HL bushing refers to its total length, not the portion beneath the head. These are available in both ground and unground options available.
