Carr Lane Construction Balls Adjustable Type

Carr Lane Construction Balls Adjustable Type

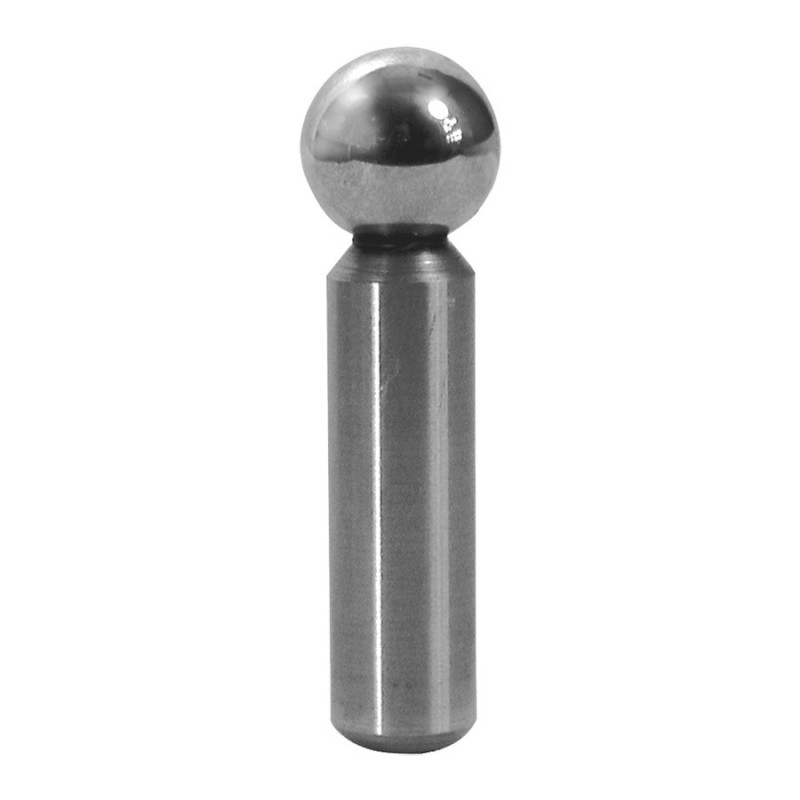

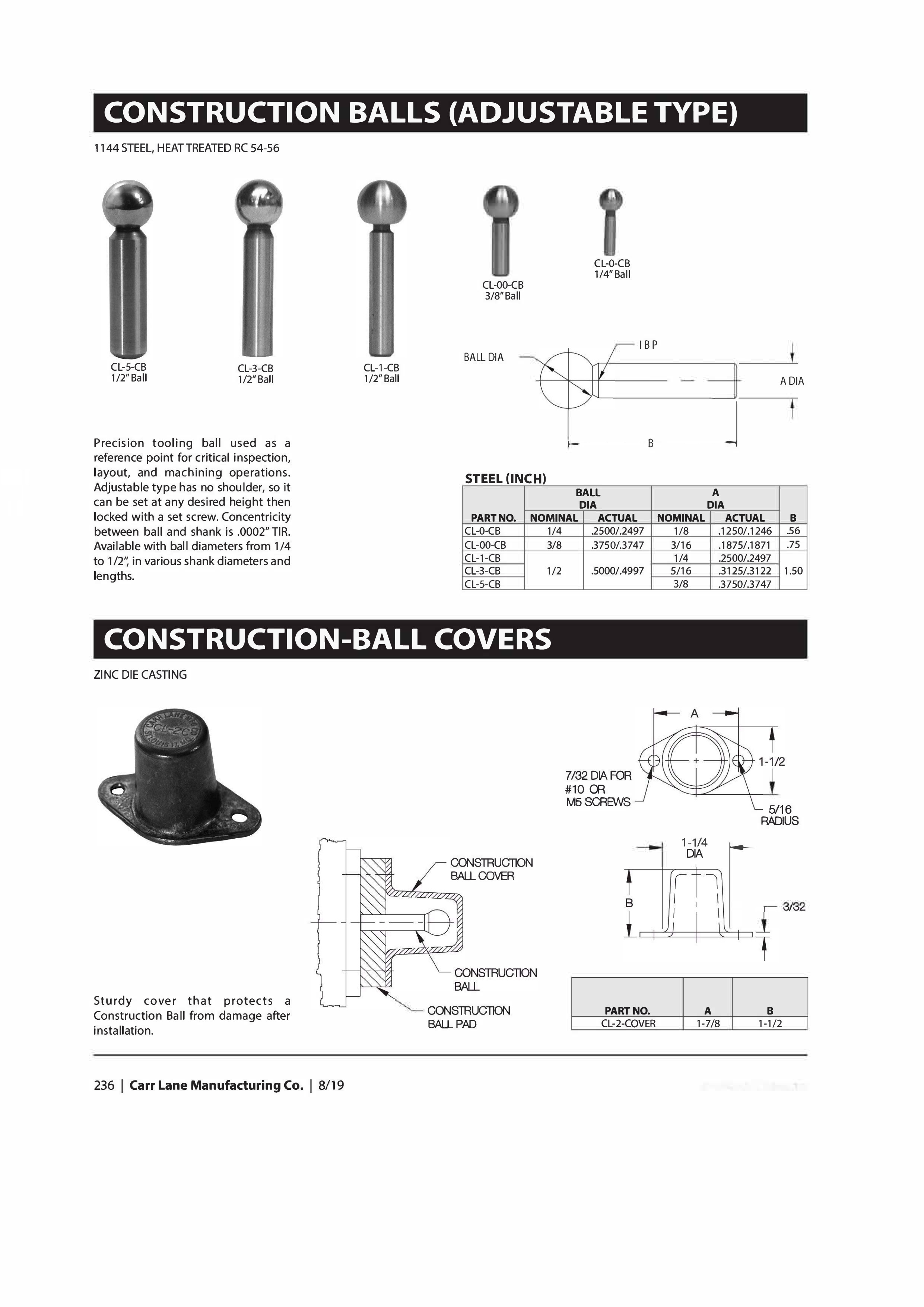

he precision tooling ball serves as a reference for essential inspection, layout, and machining tasks. The adjustable version is manufactured without a shoulder, allowing it to be positioned at any required height and secured with a set screw. The concentricity between the ball and shank is within .0002" TIR. These construction balls are offered in 1/4", 3/8", and 1/2" ball sizes.

  • Available in imperial sizing only
  • Ball Diameter: 1/4 - 1/2
  • External Diameter: 1/8 - 3/8

Print page

Products
Downloads
Description
Part Number Material Number External Diameter Ball Diameter Price Add to Parts List
CL-0-CB CL-0-CB 1/8 1/4 £22.90
£27.48 Inc. VAT
CL-00-CB CL-00-CB 3/16 3/8 £26.06
£31.27 Inc. VAT
CL-1-CB CL-1-CB 1/4 1/2 £25.34
£30.41 Inc. VAT
CL-3-CB CL-3-CB 5/16 1/2 £26.77
£32.12 Inc. VAT
CL-5-CB CL-5-CB 3/8 1/2 £28.44
£34.13 Inc. VAT
Carr Lane Construction Balls Adjustable Type

Carr Lane Construction Balls Adjustable Type

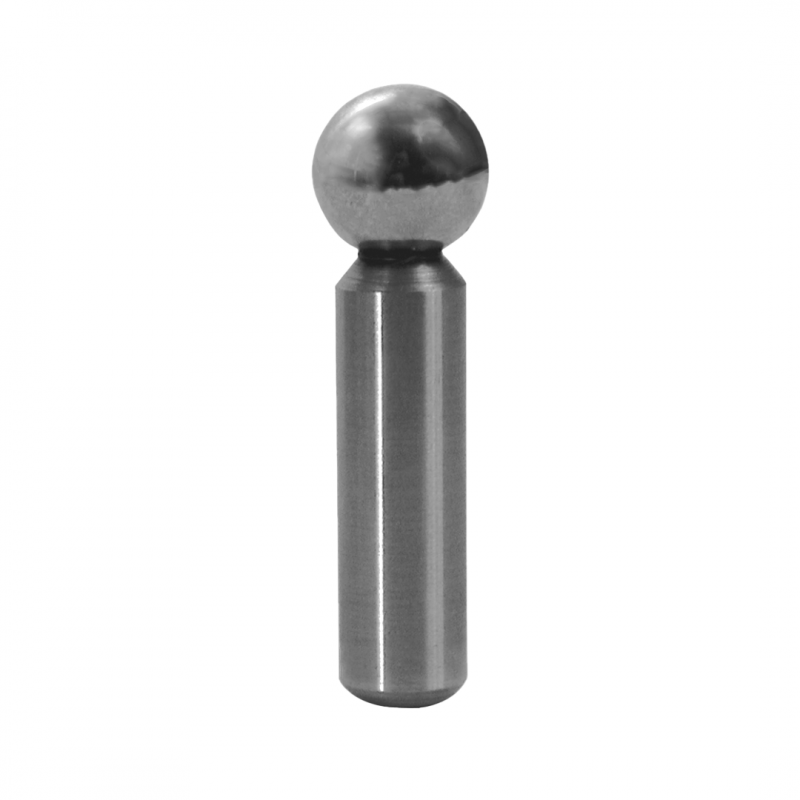

he precision tooling ball serves as a reference for essential inspection, layout, and machining tasks. The adjustable version is manufactured without a shoulder, allowing it to be positioned at any required height and secured with a set screw. The concentricity between the ball and shank is within .0002" TIR. These construction balls are offered in 1/4", 3/8", and 1/2" ball sizes.

Options:

  • Ball Diameter: 1/4 - 1/2
  • External Diameter: 1/8 - 3/8

Quantity Unit discount You Save
