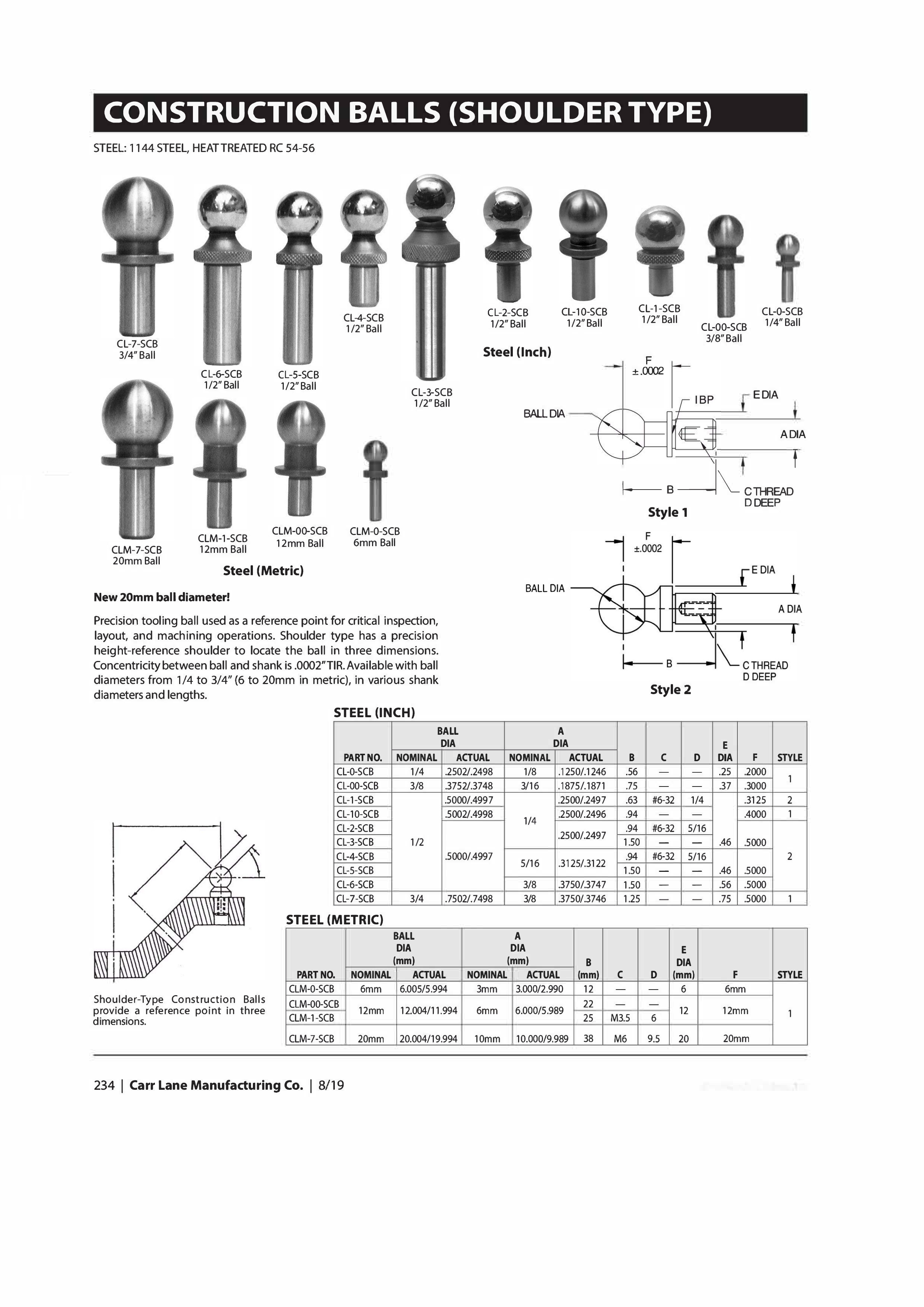

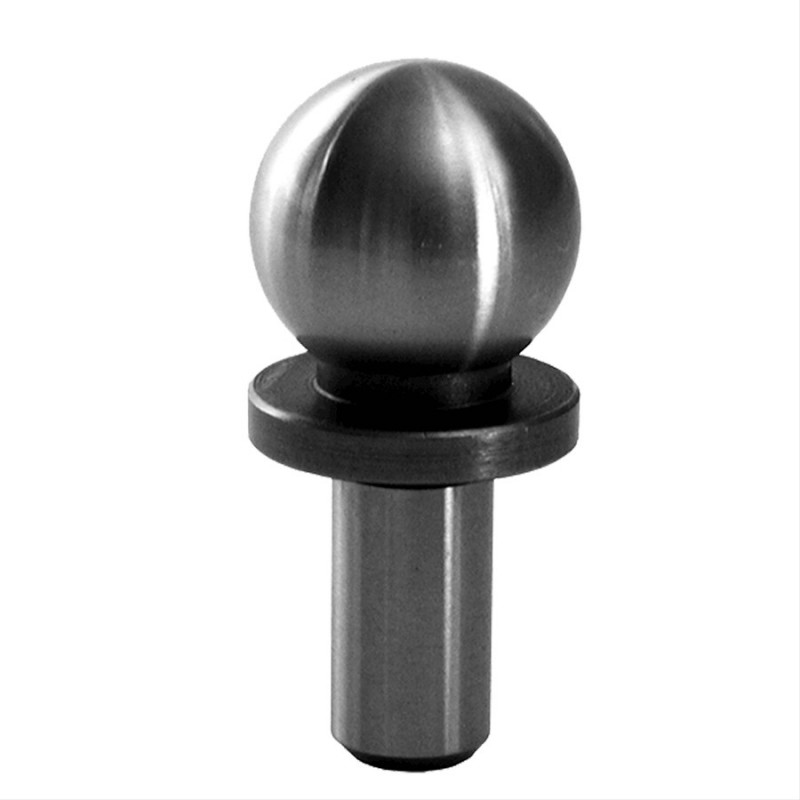

Carr Lane Shoulder Type Construction Balls
A precision tooling ball serves as a reference for essential inspection, layout, and machining tasks. The shoulder type design includes a precision height-reference shoulder that ensures accurate three-dimensional positioning of the ball. The concentricity between the ball and shank is maintained within a tolerance of .0002" TIR. These balls are available in sizes of 1/4", 3/8", 1/2", and 3/4" (6mm, 12mm, and 20mm in metric), and are offered in both steel and stainless steel materials.
- Thread: #6-32 or M3.5
- Threaded and Un-Threaded
- Metric and Imperial
- Length: .47 - 1.50
Products
Downloads
Description
| Part Number | Material Number | Metric or Imperial | External Diameter | Length | Ball Diameter | Threaded | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|---|
| CLM-1-SCB | Metric | 6mm | .98 | 12mm | Yes | £42.40 £50.88 Inc. VAT |
|
|
| CLM-00-SCB | Metric | 6mm | .87 | 12mm | No | £41.15 £49.38 Inc. VAT |
|
|
| CLM-0-SCB | Metric | 3mm | .47 | 6mm | No | £34.10 £40.92 Inc. VAT |
|
|
| CL-10-SCB | Imperial | 1/4 | .94 | 1/2 | No | £33.61 £40.33 Inc. VAT |
|
|
| CL-1-SCB | Imperial | 1/4 | .63 | 1/2 | Yes | £33.61 £40.33 Inc. VAT |
|
|
| CL-7-SCB | Imperial | 3/8 | 1.25 | 3/4 | No | £52.28 £62.74 Inc. VAT |
|
|
| CL-00-SCB | Imperial | 3/16 | .75 | 3/8 | No | £33.61 £40.33 Inc. VAT |
|
|
| CL-6-SCB | Imperial | 3/8 | 1.50 | 1/2 | No | £38.93 £46.72 Inc. VAT |
|
|
| CL-0-SCB | Imperial | 1/8 | .56 | 1/4 | No | £33.06 £39.67 Inc. VAT |
|
|
| CL-5-SCB | Imperial | 5/16 | 1.50 | 1/2 | No | £33.10 £39.72 Inc. VAT |
|
|
| CL-4-SCB | Imperial | 5/16 | .94 | 1/2 | Yes | £33.62 £40.34 Inc. VAT |
|
|
| CL-3-SCB | Imperial | 1/4 | 1.50 | 1/2 | No | £38.93 £46.72 Inc. VAT |
|
|
| CL-2-SCB | Imperial | 1/4 | .94 | 1/2 | Yes | £33.61 £40.33 Inc. VAT |
|
Carr Lane Shoulder Type Construction Balls
A precision tooling ball serves as a reference for essential inspection, layout, and machining tasks. The shoulder type design includes a precision height-reference shoulder that ensures accurate three-dimensional positioning of the ball. The concentricity between the ball and shank is maintained within a tolerance of .0002" TIR. These balls are available in sizes of 1/4", 3/8", 1/2", and 3/4" (6mm, 12mm, and 20mm in metric), and are offered in both steel and stainless steel materials.
Options:
- Thread: #6-32 or M3.5
- Threaded and Un-Threaded
- Metric and Imperial
- Length: .47 - 1.50
| Quantity | Unit discount | You Save |
|---|
Customers who bought this product also bought:
Carr Lane Turn Screws
Turn Screw available in Quarter and Half turn type, ideal for swing-away lids and jig plates
- Thread: #10-24 - 1/2-13 or M5 - M12
- Metric and Imperial sizes
£0.00
£0.00 Inc. VAT
Carr Lane Construction Balls Adjustable Type
he precision tooling ball serves as a reference for essential inspection, layout, and machining tasks. The adjustable version is manufactured without a shoulder, allowing it to be positioned at any required height and secured with a set screw. The concentricity between the ball and shank is within .0002" TIR. These construction balls are offered in 1/4", 3/8", and 1/2" ball sizes.
- Available in imperial sizing only
- Ball Diameter: 1/4 - 1/2
- External Diameter: 1/8 - 3/8
£21.60
£25.92 Inc. VAT
Carr Lane Construction Ball Covers CL-2-COVER
Carr Lanes construction ball covers are manufactured from durable die-cast zinc to protect construction balls from any damage or impairment after setting. These covers are designed with two hole which allows the cover to be attached using #10 screws. One size accommodates all construction balls.
£3.84
£4.61 Inc. VAT
Carr Lane Bullet-Nose Pins
Precision bullet-nose locating pins are commonly paired with matching bushings to accurately align two parts of a fixture. Typically, a Bullet-Nose Round Pin and a Bullet-Nose Diamond Pin are used together to align two holes without causing interference. The diamond pin is designed to locate in only one axis, preventing any binding. The pin's shank diameter matches the outer diameter (OD) of the bushing, ensuring that the installation holes can be bored simultaneously in both fixture pieces for enhanced precision.
- Round, Diamond and Bushings
- Imperial and Metric
- External Diameter - 9/16 - 1-1/2 or .512 - .866
£6.02
£7.22 Inc. VAT
