Hilma Compact Clamping Claw

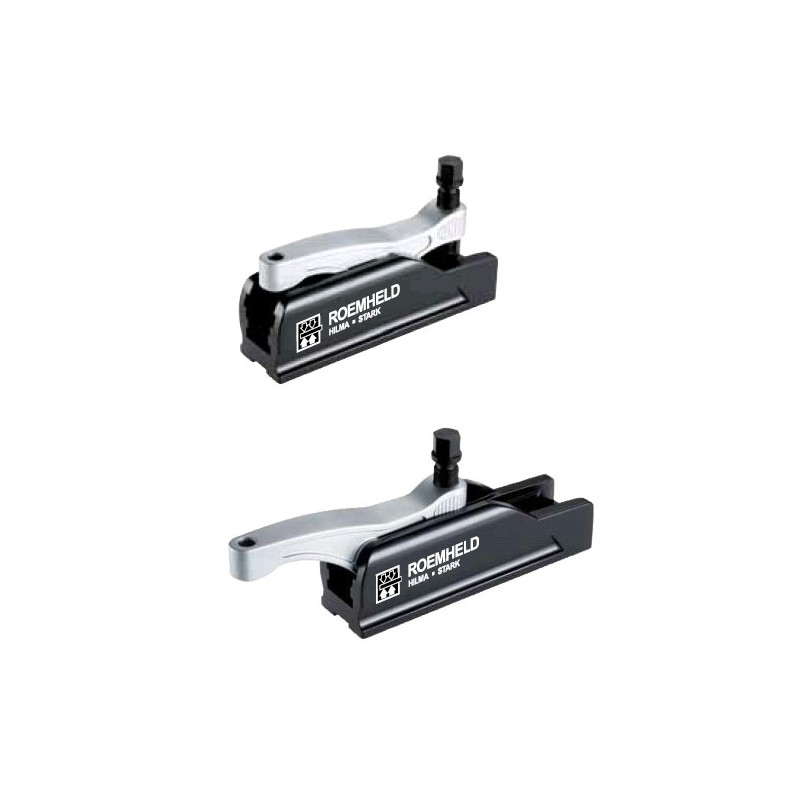

Hilma Compact Clamping Claw with Movable Clamping Lever

Application:

• Universal use on machined and unmachined workpieces
• Any position is possible due to the self-locking clamping lever

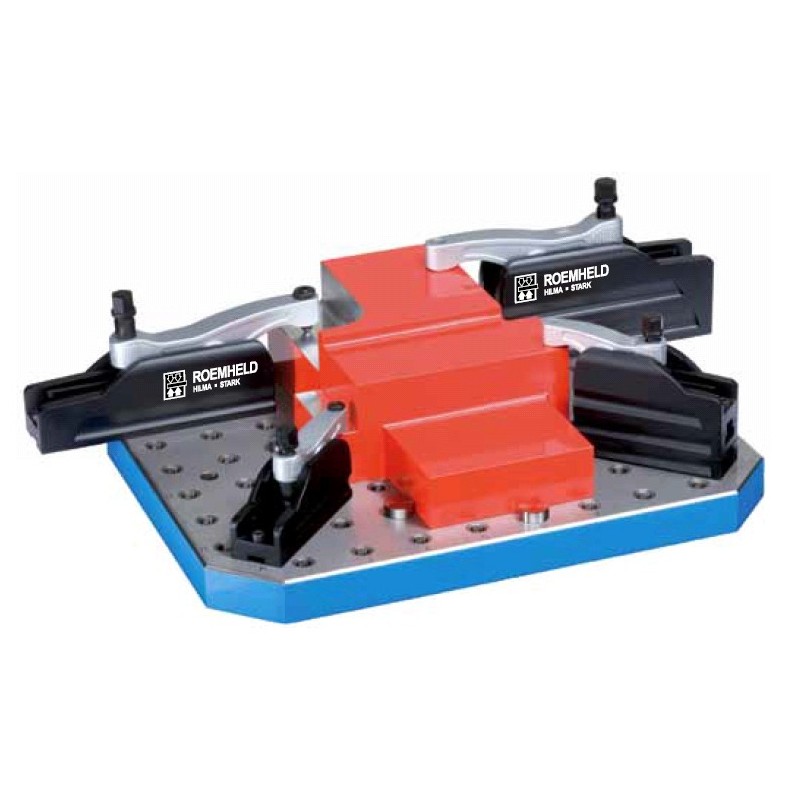

• Clamping and locking of dies and workpieces on injection moulding machines and machine tools

Function:

1. Move the clamping lever to the clamping point
2. Clamp using the hexagonal collar screw
3. Unclamp in the reverse order

Mounting hints:

1. Remove the ISO 4762-M6x10 stop screw
2. Return the clamping lever and remove it
3. Fasten the base body with 2 Allen screws (delivered with the clamping claw)
4. Put the clamping lever into the guiding groove of the base body and insert it
5. Tighten the ISO 4762-M6x10 stop screw

Special features:

• Material: Tempered steel, base body with black coating, clamping lever with silver-coloured coating
• Precise, clamps true to position
• Convenient, universal handling
• High clamping force with low tightening torque, wear-resistant due to the clamping lever provided with a slide bearing
• Large, infinitely variable clamping range
• The clamping lever can be completely retracted into the housing to enable the unimpeded change of workpieces
• The clamping lever has a location thread for various clamping elements, e.g. ball pressure screws or pendulum supports
• Large adjusting range with constant clamping force
• Infinitely variable extension of the clamping range using a height adapter
• Easy and flexible fastening options
• Protected against corrosion
• Resistant to dirt and swarf
