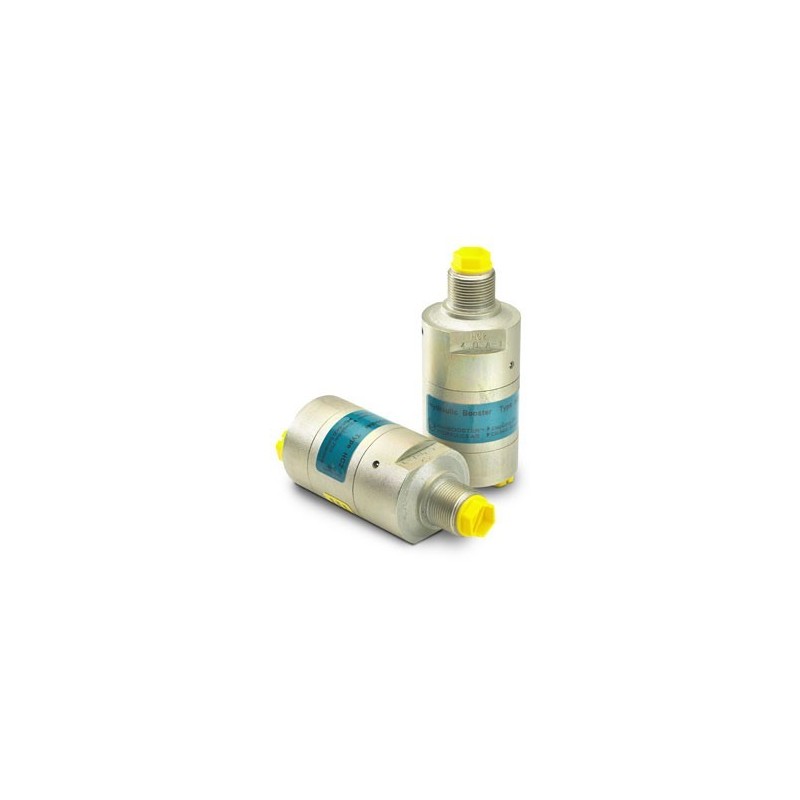

Minibooster HC2

Ordering example of an HC2 with i = 4.0 DV incorporated and BSP connections: HC2 - 4.0 - B - 1

Minibooster A Model

Without Dump Valve High pressure is relieved externally. This is achieved in most cases by the use of a pilot operated check valve. This is a good solution when there is high return flow from a large bore hydraulic cylinder.

Minibooster B Model

With Dump Valve Allows the high pressure side to be relieved. When port 'R' is pressurised and port 'IN' is open to tank. Pilot supply will open the 'DV' valve allowing the fluid from the high pressure side 'H' to flow back to tank

Minibooster G Model

With RV Valve The RV valve allows you to control the high-pressure side proportionally controlled directly from the low-pressure side.

General Minibooster Specifications

• High flow - low pressure
• Low flow - high pressure

As shown in the chart Minibooster has a dual flow/pressure feature. Initially when fluid is supplied to the booster it flows straight through to the high pressure side. At this point all the supplied flow (up to the max. allowed inlet flow) goes to the actuator allowing it to operate fast in the desired direction. As soon as inlet pressure is reached in the actuator, the flow will then be supplied via the high pressure piston until intensified pressure is reached.

Temperature range oil: -40 °C to +120 °C

Temperature range water: +3 °C to +50 °C

Temperature limits:

• +30 °C to +60 °C = Best performance - long life-time
• Outside above range = Reduced performance and/or life-time

Maximum inlet flow: See performance data for each model

Inlet pressure: Min. 20 bar (290 psi), max. 200 bar (2900 psi)

Note: Outlet pressure must never exceed 800 bar (11600 psi ), except for the HC7, HC8 + HC9

Filtration: 10 micron nominal; max. 19/16 according to ISO 4406

Connections: See data for each model.

Advantages summarised:

• Gives high pressure whenever needed
• Expensive high-pressure pumps not required
• Expense saved on tubing
• Increase expensive high pressure by simply increasing inexpensive low pressure
• Low pressure is changed into high pressure with hardly any use of energy or heat generation
• Leakages on the high-pressure side compensated dynamically
• System works with labyrinthine tubing, which gives a longer life
• No rotating parts
• Light weight
• Small size – high performance

Typical clamping circuit

0-103 Model - Example with single-acting cylinder

The HC2 is used to boost the pressure in an existing hydraulic circuit, e.g. in a machining centre to ensure a sufficient clamping force. As the HC2 can be directly fitted into the workholding system, high-pressure connections can be avoided.

Applications with larger flowrates

0-104 Model - Example with external pilot-operated check valve

In applications where the pump supplies a flow exceeding the maximum permissible supplied flow to the HC2, the HC2 is installed in parallel with a pilot-operated check valve. This check valve is dimensioned to allow for all the flow supplied from the pump. The inlet flow to the HC2 is limited to the maximum permissible flow for the particular intensification ratio.

As the cylinder moves forward, all the flow from the pump is used. When the pump pressure is established in the cylinder the check valve closes, and the end pressure builds up through the HC2. The cylinder is retracted by changing the position of the directional valve, whereby the pump is connected to the other side of the cylinder and the DV opens, allowing the fluid to return to the tank.

Fluids:

• Recognised hydraulic and transmission fluids compatible with Buna-N seals
• Viscosity 1 to 500 cSt (mm2/s)
• Water glycol mix (minimum 5% Glycol)
• Other media on request
• For other fluids, contact technical sales

Viscosity limits:

• 20-40 cSt (mm2/s) = Best performance - long life-time
• 16-19 and 40-100 cSt (mm2/s) = Good performance - good life-time
• 12-15 and 101-300 cSt (mm2/s) = Reduced performance and life-time
• 1-11 and 301-500 cSt (mm2/s) = Short performance and life-time

Materials:

• Oil boosters: Body: cast iron, internal components: steel, external surface: zinc chromate finish
• Stainless boosters: Body and internal components: stainless steel 316 W.1.4404
• Static seals: nitrile - other material on request, e.g. Viton, EPDM
• Dynamic seals: see table below

Dynamic seals for dual media boosters:
