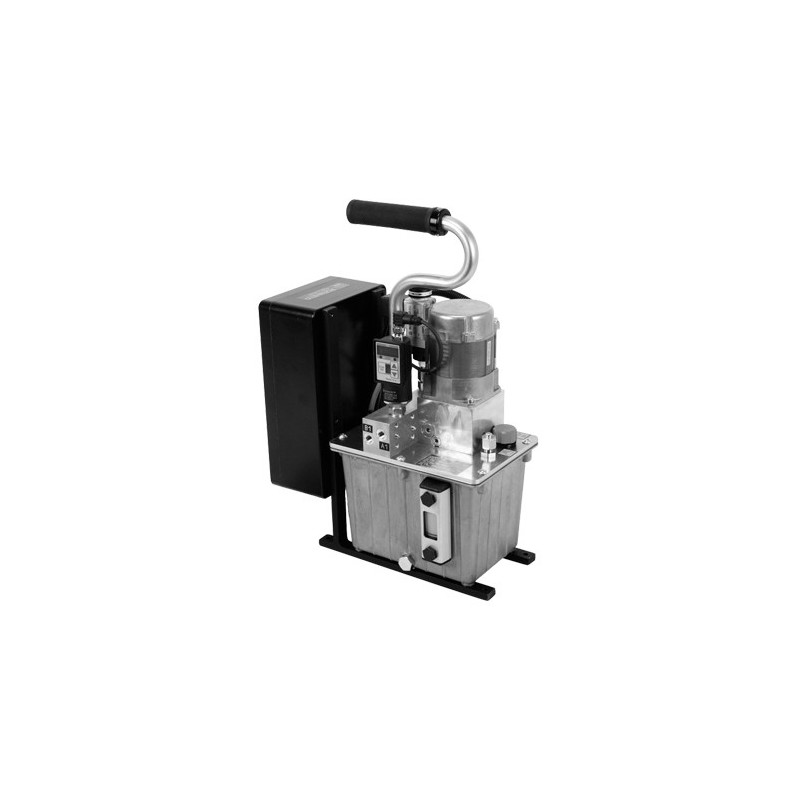

Hydraulic Power Units - ROEMHELD D8.010

Hydraulic Power Units - ROEMHELD D8.010

• Flow rate: 0.52 l/min
• Operating pressure: 30 / 200 bar bar
• Reservoir volume: approx. 3.5 l
• Usable oil volume: approx. 1.5 l
• Continuous duty: up to 60 s
• Motor rating: 0.15 kW
• Motor voltage: 400 VAC 50 Hz

Advantages:

• Compact small power unit
• Simple control
• Electronic pressure switch
• Digital pressure display
• Convenient pressure adjustment by teach-in function
• Machine tool interlock as standard
• Electric control ready for connection (optionally also only with terminal box)
• Available for 2 supply voltages
• Oil level and temperature control (option)
• Manual switch or foot switch (alternatively)
• Clutch switch for pressureless coupling and uncoupling of both lines (option)
• Handle for mobile use (option)

Application:

These power units are especially suitable for the operation of small and simple hydraulic clamping fixtures.
One clamping circuit for single or double acting cylinders is available.
The low weight also allows mobile use.

Description:

Using this power unit, extension and retraction of the cylinders is effected by the change of the sense of rotation of the electric motor. The pump alternatively supplies to port A or port B. The other port is discharged by opening a pilot-controlled check valve.
For coupling and uncoupling of a clamping fixture, both ports can be depressurised by means of the clutch switch.
