DA 6 V Size 6 Series 5x
Pilot operated pressure cut-off valves for sub plate mounting DA 6 V
- Size: 6
- Component series: 5X
- Maximum operating pressure: 350 bar
- Maximum flow: 40 l/min
Description

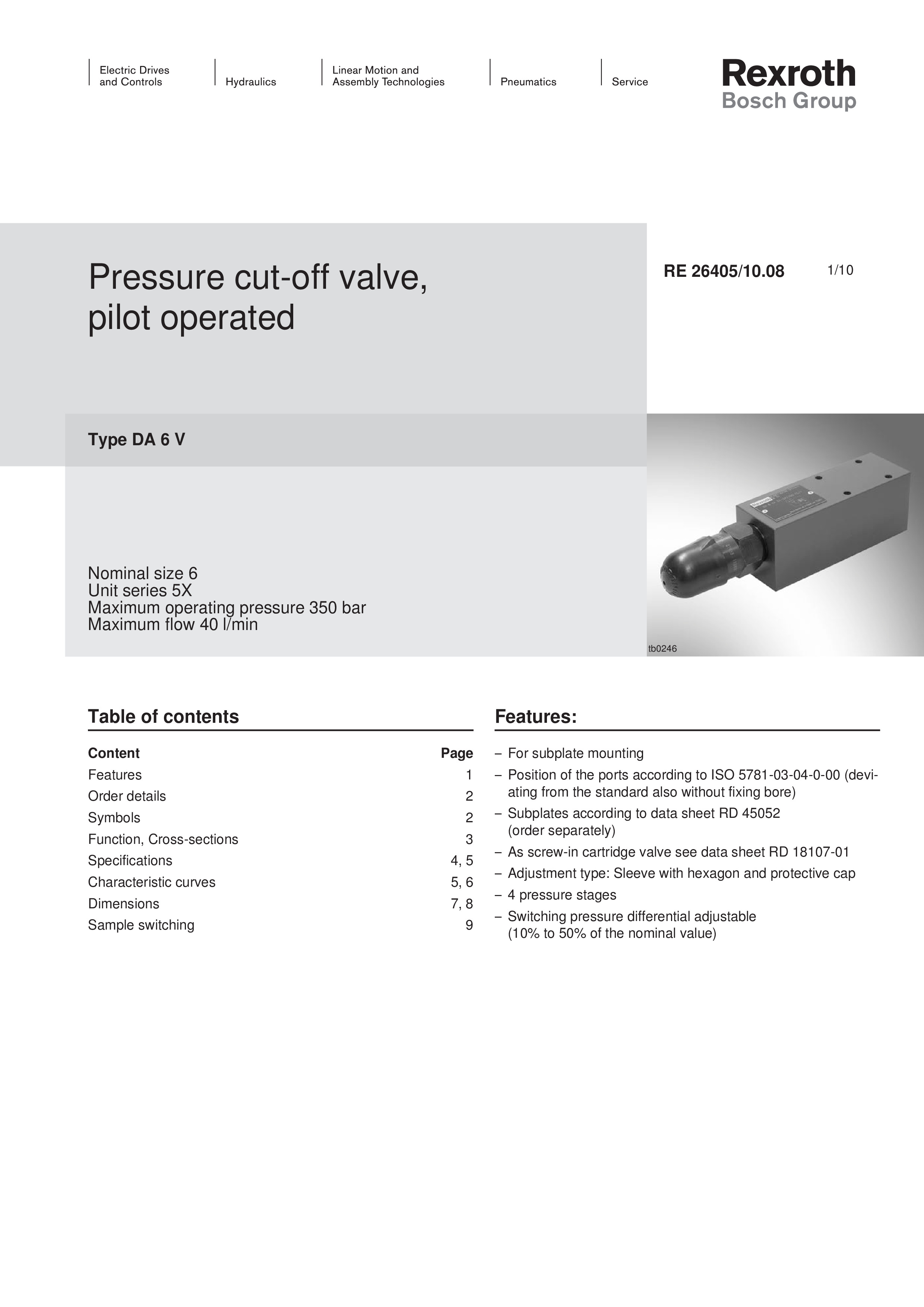

Downloads

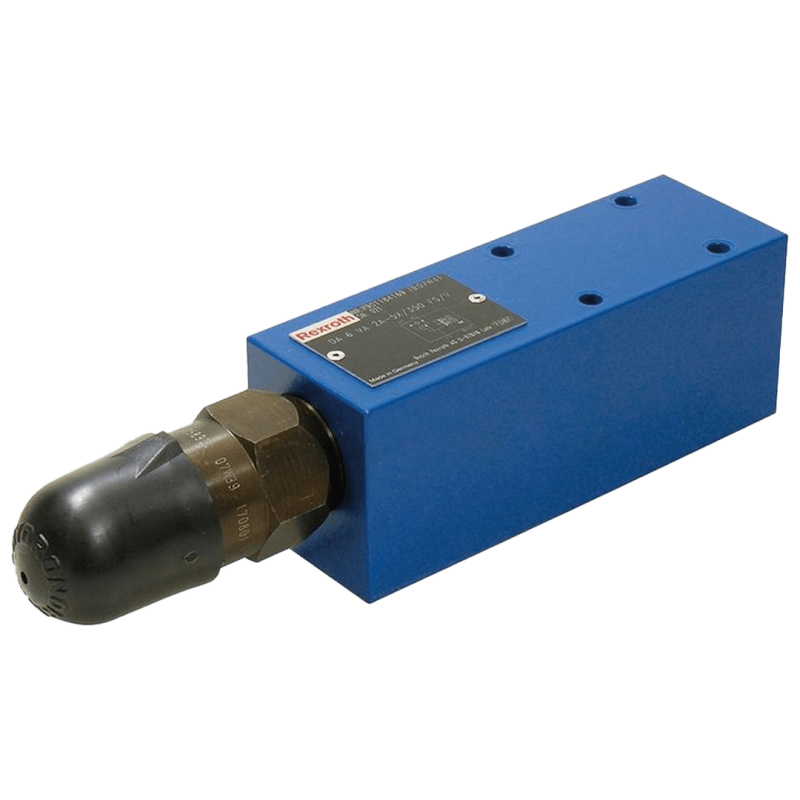

Bosch Rexroth Pilot Operated Pressure Cut-off Valves DA 6 V
- Size: 6
- Component series: 5X
- Maximum operating pressure: 350 bar
- Maximum flow: 40 l/min
Features:
- For sub plate mounting
- Position of the ports according to ISO 5781-03-04-0-00 (deviating from the standard also without fixing bore)
- Sub plates according to data sheet RD 45052 (order separately)
- As screw-in cartridge valve see data sheet RD 18107-01
- Adjustment type: Sleeve with hexagon and protective cap
- 4 pressure stages
- Switching pressure differential adjustable (10% to 50% of the nominal value)
