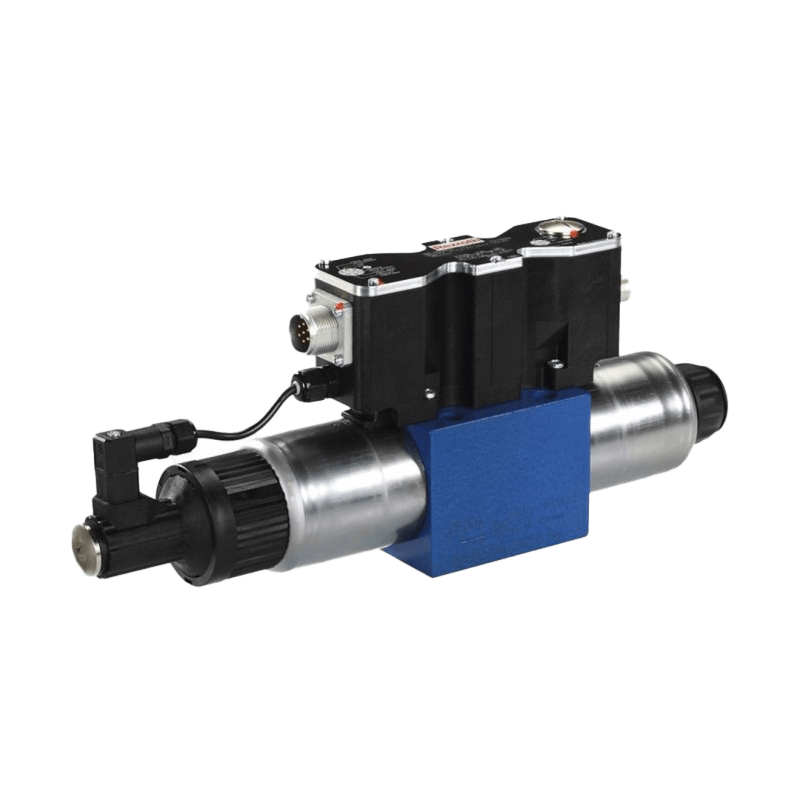

Bosch Rexroth 4/3 Proportional Directional Valves (IFB-P) 4WREF

4WREF Size 6 & 10 Series 2x

4/3 proportional directional valve with integrated digital electronics and field bus interface (IFB-P) for subplate mounting 4WREF

  • Sizes 6 and 10
  • Component series 2X
  • Maximum operating pressure 315 bar
  • Maximum flow: 80 l/min (size 6)
  • Maximum flow: 180 l/min (size 10)
Print page

Description
Downloads
re29048_2014-01

Bosch Rexroth 4/3 Proportional Directional Valves (IFB-P) 4WREF

  • Sizes 6 and 10
  • Component series 2X
  • Maximum operating pressure 315 bar
  • Maximum flow: 80 l/min (size 6)
  • Maximum flow: 180 l/min (size 10)

Features:

  • Direct operated proportional directional valve with integrated digital electronics and field bus interface (Integrated Field Bus IFB-P)
  • Operation by means of proportional solenoids with central thread and detachable coil
  • Position-controlled valve control spool
  • Analog interface for command and actual value
  • Command value (flow) analog or via bus
  • Design for CAN bus with Can open protocol DS 408 or Profibus-DP
  • Quick commissioning via PC and WIN-PED 6 commissioning software
