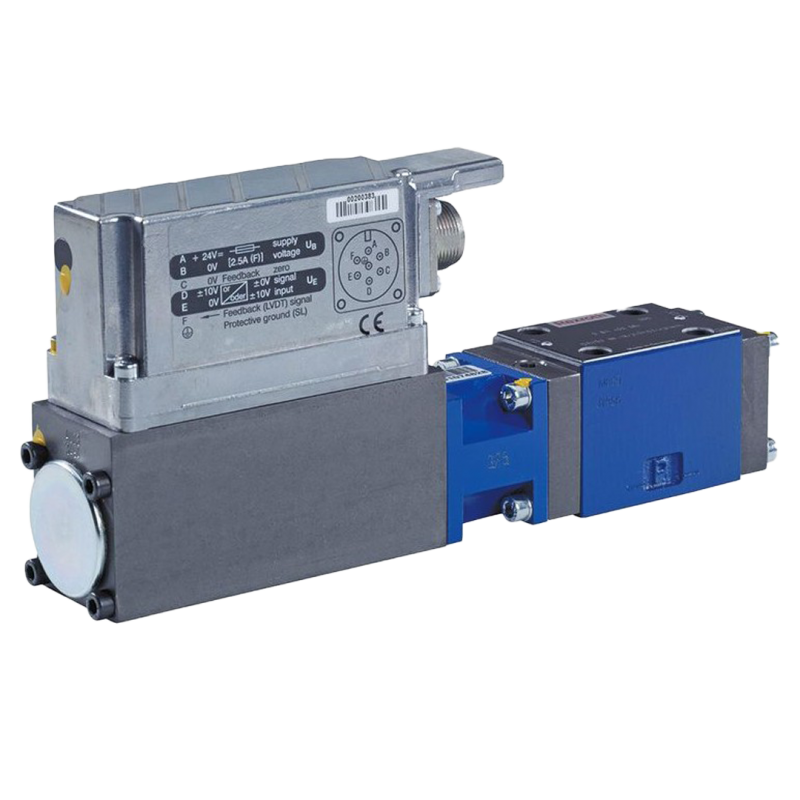

DREBE6X Size 6 Series 1x
Pilot operated proportional pressure reducing valves with integrated electronics (OBE) and position feedback, in 3-way version for subplate mounting DREBE6X
- Nominal size 6
- Unit series 1X
- Maximum working pressure P 315 bar, T 250 bar
- Maximum flow rate 40 l/min
Products
Downloads
Description
| Part Number | Material Number | Max. Pressure rating | Price | Add to Parts List |
|---|---|---|---|---|
| DREBE 6X-1X/75MG24K31A1M | 0811402082 | 75 bar | £2,151.06 £2,581.27 Inc. VAT |
|
| DREBE 6X-1X/175MG24K31A1M | 0811402080 | 175 bar | £2,151.06 £2,581.27 Inc. VAT |
|
| DREBE 6X-1X/310MG24K31A1M | 0811402081 | 310 bar | £2,151.06 £2,581.27 Inc. VAT |
|
Bosch Rexroth Proportional Pressure Reducing Valves, Pilot Operated,(OBE) DREBE6X
- Nominal size 6
- Unit series 1X
- Maximum working pressure P 315 bar, T 250 bar
- Maximum flow rate 40 l/min
Features:
- Pilot-operated valves with position feedback and integrated electronics for system pressure reduction at the actuator (internal pilot oil supply only)
- 3-way version
- Adjustable via the position of the solenoid armature in relation to the compression spring
- Position-controlled, minimum hysteresis < 1%, short actuating times
- Maximum pressure limitation, even with defective electronics
- For subplate mounting: Porting pattern according to ISO 4401
